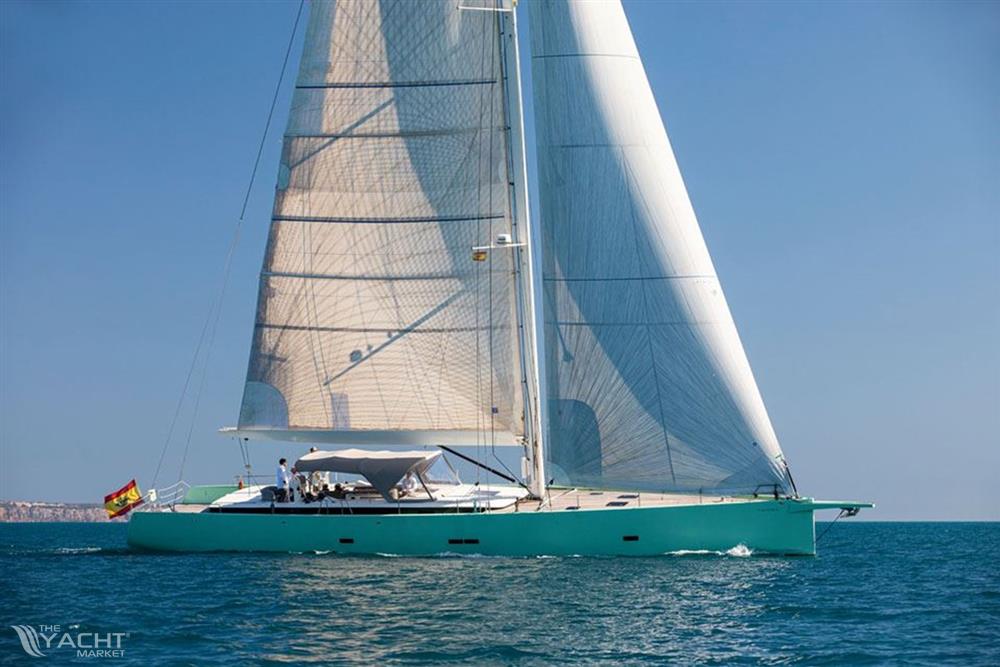

Y-YACHTS Y8 (2015) in vendita in Palma, Spagna

£2.364.587 GBP
Prezzo di listino €2.750.000 EUROttieni una quotazione in valuta estera

Riepilogo

Scopri l'eccezionale Y-YACHTS Y8 in vendita a Palma, in Spagna. Questa magnifica nave d'alto mare, costruita nel 2015, si estende per oltre 23,97 metri di lunghezza e offre una larghezza sostanziale di 5,96 metri. Lo yacht aderisce ai più alti standard di sicurezza della categoria A della Direttiva sulle imbarcazioni da diporto, garantendo tranquillità senza compromessi durante i vostri viaggi. Le superfici del ponte sono adornate con teak di qualità, sigillato con SIKA nero, che si estende sul ponte di poppa, laterale e di prua; contribuendo ulteriormente al fascino estetico dello yacht. Equipaggiato con un potente motore Yanmar da 240HP, in grado di raggiungere una velocità di crociera di circa 9,5 nodi, ed una velocità massima di 12,5 nodi. Godetevi la raffinatezza offerta dalla strumentazione B&G al timone e da una suite di comunicazione inclusiva, che garantisce un controllo ottimale della navigazione. La comoda sistemazione è composta da 3 cabine che forniscono 6 posti letto più 2 per l'equipaggio, progettate con eleganti pannelli sandwich con anima in schiuma, accentuati con impiallacciatura di rovere o noce. Nel cuore dello yacht si trova un accogliente salone con un grande tavolo da pranzo e una rilassante area lounge. La cucina è progettata per essere pratica ed elegante con un'elegante finitura in acciaio inossidabile, mentre la cabina armatoriale offre uno spazio opulento con un letto centrale a isola, uno specchio a grandezza naturale, una scrivania e un ampio armadio walk-in. Questo yacht incarna senza dubbio una miscela perfetta di notevole maestria artigianale, prestazioni impressionanti e comfort elegante.

Informazioni generali
Marca / Modello
Y-YACHTS Y8
Categoria
Used barca in/a vendita
Prezzo
£2.364.587 GBP | Prezzo di listino €2.750.000 EUROttieni una quotazione in valuta estera
Nome della barca
PEREGRIN
Anno
2015
Lunghezza fuori tutto
23,97 metri
Larghezza
5,96 metri
Posizione
Palma, Spagna

Relative informazioni Y-YACHTS Y8

English

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean”.



Hull, Deck & Superstructure Construction:

  • Hull – Sandwich construction: Inner skin of carbon/epoxy, Corecell M-foam core, outer skin is E-glass/epoxy, vacuum consolidated.
  • Alexseal spray paint finish.
  • Bottom structure is Carbon/epoxy laminated in situ over Divinycell foam core, vacuum consolidated.
  • Bulkheads are Carbon/epoxy/Divinycell sandwich, vacuum consolidated.
  • Carbon-fibre reinforcements around doors, cut-outs and cable penetrations.
  • Chain plates: Shrouds V1/D1 carbon chain plates with stainless steel bushings structurally integrated into hull laminate, forestay chain plate integrated in stem, hi-load pad eye on foredeck to attach removable inner forestay for storm jib.
  • Hull Windows: Port and starboard 2 x 4 fixed hull windows, 469x129mm each.
  • Bottom Paint: Keel, rudder and hull below waterline protected with epoxy barrier coat and antifouling paint.
  • Deck/Cockpit/Coach Roof: Carbon/epoxy/Corecell sandwich, vacuum consolidated.
  • Deck surfaces are covered with superyacht-quality teak, with black SIKA seals.
  • Teak laid decking on aft, side and forward deck.
  • All other surfaces spray-painted with Alexseal.
  • Structure post-cured in a full-size oven.
  • Coach roof vertical covered with clear varnished carbon-fibre blind.
  • Grills cut out in front of opening windows and ventilation canals.



Keel & Rudder:

  • Fixed keel, inverted T-shape, fin welded from Weldox 700 steel frames and plates.
  • Lead bulb hardened with Antimony.
  • Keel weight 12.255 kg thereof 10.600 kg lead bulb.
  • Rudder – semi-balanced carbon/epoxy blade and stock.
  • Roller bearings lower/upper diameter 260/220mm.

Machinery

Engine & Gearboxes:

  • 1 X 240HP Yanmar 4LHA-STP, 177kW, 3.5 litre 4-cyl.
  • Gearbox - ZF63A 2,7:1.



Maintenance & Performance:

  • Engine hours approx. 4630 @ March 2024.
  • 2 x Racor filter/water separator.
  • Independent fuel supply lines with bypass valves.
  • Cruising speed – approx 9.5 knots @ 11mph.
  • Maximum speed – approx 12.5 knots @ 14mph.
  • 230HP@3300rpm.
  • Power Travel @1800rpm: 400Nm/80KW, consumption 11 L/h (Yanmar data).
  • Range @ cruising speed of 9.5 knots – approx 2,000 nm.



Propulsion & Steering:

  • Flexofold folding 4-blade 27x19 propeller.
  • Shaft stainless steel, 1.4462, D=55mm, L=2890mm.
  • Coupling CENTA CF-AGM-140-3.
  • Steering pedestals port and starboard with instrument brackets.
  • 2x carbon steering wheels 1100mm.
  • Transmission via torque tubes, gearboxes, wires and quadrant.
  • Emergency tiller.
  • Kobelt mechanic single lever-engine control for throttle and gear & Yanmar engine panel, installed at the portside steering wheel.



Bow Thruster:

  • Maxpower retractable 3000 hydraulic 25 KW bow thruster.
  • Joystick installed at the portside steering wheel.

Electrical Systems

Battery Banks:

  • 12 x 200Ah Victron AGM 12V service batteries, DC =1.200Ah 24V.
  • 2 x 110Ah Victron AGM 12V DC for engine start and generator start.
  • DC-DC-converter Victron 25A 24V-12V for navigation electronics.



Battery Chargers:

  • 1 x Victron Centaur 12/20 for 12v batteries.
  • 2 x Victron Quattro 24/5000/120-100/100 inverter/charger.



Alternators:

  • 1 x 12V 80A on main engine.
  • 1 x 24V 110A.



Generator:

  • 1 x 13kW Fischer Panda 15000i, 230 V 50 Hz 15 kVA.
  • Generator hours: 1905 @ April 2024.



Shore Power:

  • Shore power 90- 265V 50-60Hz.
  • Shore supply with differential breakers and distribution system.
  • 2 x 30m shore supply cable.
  • Numerous adapter plugs for worldwide use.

Plumbing Systems

Fresh Water & Water Heating System:

  • 75 litre Indel Basic 75, running from the engine and/or 230V immersion heater.



Bilge Pumps:

  • 2 x manual Whale WHBP3020 bilge pump.
  • 1 x electric bilge pump 24V Jabsco Rule 2000 with automatic float switches in bow, sail locker, saloon starboard, saloon port, engine room, lazarette.



Other:

  • Pump Shurflo dual pump 3,4 Bar, 38 litre per minute.
  • Piping system IVT-Prineto, semi-rigid pipes with swaged terminals.
  • Faucets hot/cold: 4 x at sinks in heads, 4 x showers, 2 x at sink in galley, 1 x shower aft deck.
  • Through-hull-fittings and seacocks “Trudesign” from non-corrosive fibre-reinforced polyamid.

Tankage

Fuel:

  • Total capacity of 900 litres / 238 US gallons.



Fresh Water:

  • Total capacity of 900 litres / 238 US gallons in polyethylene tank.
  • Infills on deck.



Grey/Blackwater Holding Tanks:

  • Total capacity of 240 litres / 63 US gallons, in 4 x 60 litre tanks.
  • Blackwater hoses special odour-free grade.

Navigation Equipment

  • B&G instrumentation, including - depth sounder, log, wind speed and direction, radar and rudder angle indicator.
  • 2 x complete, independent and standalone B&G autopilot systems: 1 x on duty, 1 x spare.
  • Components of each autopilot system: AC42N autopilot computer, RC42N rate compass, RF25N rudder feedback, Triton pilot controller, Triton display, autopilot drive. 24V hydraulic ram T3. The spare autopilot drive is physically disconnected to the rudder shaft.
  • B&G Triton autopilot control at port and starboard helm.
  • B&G Triton displays in front of port and starboard steering wheel and navigation station.
  • B&G Zeus³ S screen at navigation station.
  • 2 x B&G Zeus 9” GPS/plotter/radar displays at port and starboard steering wheel.
  • Furuno Navtex NX 700 weather fax at navigation station.
  • Windex.
  • 2 x Plath deck compass.



Communication Equipment

  • Lars Thrane Satellite Iridium communication system with distress button.
  • Sailor 6222 VHF-DSC at navigation station.
  • Second speaker and handheld VHF unit in cockpit.
  • GSM antenna.
  • WLAN router.
  • WLAN booster.
  • B&G broadband G4radom.
  • Radio installed in 2020 for Atlantic crossing (category zone).
  • NAIS transponder.

Domestic Equipment

Galley:

  • Cooker with oven and 3-burner gas hob.
  • Fridge.
  • Freezer.
  • Fridge under galley floor.
  • Freezer under galley floor.
  • Miele kitchen hood / extractor.
  • Coffee machine.
  • Indel CR36 Inox 24v fridge in cockpit on port side.



Heads/Showers:

  • 3 x Planus carbon “Race” toilet 24V, in owner´s cabin and guest cabins.
  • 1 x Tecma “Silence” toilet 24V in crew cabin.
  • All toilets flushing with fresh water, no vacuum system.



Heating & Ventilation:

  • 4 x Veco-Climma units, each 12.000 BTU (total 48.000).



Entertainment:

  • Dynaudio hi-end-loudspeakers in saloon and owner’s stateroom powered by “NAD” amplifier.
  • Sonos control for different areas.

Accommodation

Summary of Accommodation:

  • 6 berths in 3 cabins + 2 crew.
  • Joinery built from foam-cored sandwich panels, covered with oak- or walnut veneer.
  • Surfaces painted white, grey or clear varnish.
  • All joinery standing on a floating floor.
  • Non-structural bulkheads built from carbon sandwich panels by ankle-laminate attached to the structure.
  • All bulkheads covered with foam-cored sandwich panels painted white or grey.
  • Door frames with edge radius laminated from veneer.
  • Lightweight sandwich doors covered with painted oak veneer.
  • Some vertical panels covered with natural tan leather.
  • Floor support grid built from carbon T-sections, attached to the structure by ankle-laminate and/or epoxy glue.
  • Floorboards carbon/cork sandwich covered with 4mm walnut floating on an intermediate layer of rubber.
  • All floorboards can be removed to provide access to the bilge.
  • Ceiling panels built from lightweight, foam-cored panels, painted white.
  • Mattresses on all beds “Softec-Visco” type.
  • Blind shades and mesh to stop insects at all opening hatches and port lights.



Description of layout from forwards:



Sail Storage Compartment:

  • Custom flush deck hatch.
  • Ladder.
  • 2 x lockers.
  • 2 x bunks.
  • Provisions for toilet and sink for additional crew.



Forward Guest Cabins:

  • 2 x guest cabins, one to port and one to starboard.
  • Each cabin with double bed, hull window, lockers.
  • Each cabin with ensuite head with toilet, sink and shower.



Saloon:

  • Lounge area on port side with large sofa covered with tan leather.
  • 2 x chairs at each end of the sofa facing fore and aft.
  • Overhead lockers outboard along port side.
  • Dining table on starboard side.
  • Sofa in saloon starboard covered with natural tan leather.
  • 3 x chairs.
  • Hull windows on port and starboard.
  • Opening ports in the coaming (2 each side).
  • Two large lockers for glasses and crockery, etc.
  • Navigation station with chart table on port side, aft of the lounge area.
  • 230V distribution panel, 24V switchboard, miscellaneous control panels.



Galley:

  • To starboard with walkway to owner´s stateroom aft.
  • Galley finish in stainless steel.



Crew Cabin:

  • Aft and to port from the saloon.
  • Single berth.
  • Hull window.
  • Locker.
  • Adjoining head with toilet, sink and shower.



Engine Room:

  • Aft of saloon and central with companionway up to the cockpit.
  • Access from crew cabin.



Owner’s Stateroom:

  • Centre island bed.
  • Extra-large walk-in locker, full-sized mirror, office desk, on port side.
  • Ensuite head to starboard with toilet, sink and shower.
  • L-shaped sofa further aft to starboard, covered with yellow hopsack.

Deck Equipment

Spars & Rig:

  • Axxon Composites, white spray-painted mast built from carbon prepregs in a female mould, autoclave cured, 3 sets of spreaders, swept back 20°.
  • Fractional rig. Mast has a tapered top.
  • Axxon composites Park-Avenue white spray-painted monocoque boom, built from carbon prepregs in a female mould, autoclave cured.
  • Harken switch track 32mm batten car system for mainsail.
  • Single line reefing system for mainsail, 2 large reefs.
  • Separate track for trysail on starboard side of mast.
  • Antal track to hold jib halyard. No halyard locks at the top.
  • Outhaul track + car with 1:4 purchase, mainsheet 1:2 purchase attached to the outhaul end of boom, guided inside boom to mast, through halyard tunnel to winch.
  • Electrical 24v Reckmann headstay furler, unit recessed below deck.
  • Karver furler for Gennaker and Code 0.
  • Stainless steel rod rigging.
  • Navtec hydraulic panel for vang and backstay installed at the starboard steering wheel.
  • Track for self-tacking jib, Harken 42mm Mini-Maxi with hi-load car and stoppers.
  • Sheet for self-tacking jib, 1:2 purchase, via sheave at mast + halyard block.
  • Halyard blocks 2x4 Harken aluminium mast base blocks at mast collar.
  • Halyard blocks 2x2 Harken soft loop block at aft end of mast collar.
  • Deck organizer 4x6 sheave and 4x3 sheave Spinlock hi-load.
  • Pad eyes in numerous positions on deck below bulwark for gennaker sheets, barber hauler, check stays, halyards and inner forestay in parking position.
  • Gennaker sheet blocks in bulwark top edge.
  • Halyard storage bags in cockpit port and starboard.
  • 2 x 6 Spinlock ZS1214 jammers with ceramic H-jaws.



Winches:

  • 4 x Harken STEH 80.2, self-tailing electric 3 speed winches in cockpit – 2 each side.



Sails:

  • Main sail - 190m2.
  • Self-tacking jib - 114m2.
  • Code 0 - 245m2 with Karver furler.
  • Gennaker - 403m2 with Karver furler.



General:

  • Cockpit table - 2 x port and starboard with folding teak leaves.
  • Lightweight carbon folding passarelle with carbon stanchions, 3200 x 450mm.
  • Pulpit port and starboard stainless steel with LED navigation lights.
  • Pushpit stainless steel with LED stern light and bracket for flagpole.
  • Stanchions and opening gates each side.
  • Flush hatches and portlights in numerous positions.
  • Custom deck hatch to bow locker.
  • Classic, but flush skylight with 2 leaves in saloon roof.
  • Gas bottle storage compartment, drained.
  • Instrument pods for B&G Zeus 12” GPS and Triton displays at port and starboard steering wheels.
  • Swim ladder at transom door.
  • Deck shower, hot and cold.
  • Courtesy lights.
  • Underwater lights.



Aft Compartment:

  • Transom door opens with hydraulic rams.
  • Stairs from deck-level to sea-level.
  • Custom deck hatch.
  • Lazarette for storage of carbon-passarelle, swim ladder, shore power cable, emergency tiller.
  • Deck lockers (port and starboard) each with life raft.
  • Mooring winch and -cleat.



Anchoring & Mooring Equipment:

  • Lewmar V6 electric windlass with gypsy and drum, motor 24V 2000W.
  • Lewmar Delta Anchor 50 kg, stainless steel.
  • Pivoting anchor davit supported by gas spring.
  • Stainless steel anchor chain DIN 766, 13mm, 60m length.
  • Sanguinetti retractable mooring winch 24V 2000W, at the bow.
  • Mooring lines.
  • 1 x Liros Handy-Elastic black mooring line.
  • 4 x Versari Delmonte retractable mooring cleats (2 x at bow, 2 x midships).
  • 2 x 5 fairleads positions port and starboard.



Covers, Canvas & Cushions:

  • Bimini – 2023.
  • Sprayhood – 2023.
  • Cockpit cushions and cushions for aft deck.
  • Instrument cover.
  • Cushions in forward part of cockpit, weather resistant, securely installed.
  • Sun awnings fitting to the boom, can be installed if structure of recent bimini are removed.



Tender & Davits:

  • Retractable extension at outboard end of boom to lift a tender onto the aft deck.
  • Stern tranverse garage provides room for a tender.

Safety Equipment

  • 8-person life raft Seasafe Solas 74-96 (2020).
  • Safe Sea EPIRB.
  • Jonbuoy.
  • Folding pad eyes on deck for lifelines.
  • U-Bolts in the cockpit to fasten safety harness.
  • General safety gear for offshore sailing.



Fire-Fighting Equipment:

  • Fire Extinguishing System Seafire NFD 550M, automatically operated.

Continua a leggere

Propulsione
Carburante
Diesel
Velocità massima
23 km/h
Velocità di crociera
18 km/h
Alloggio
Numero di cuccette
8
Broker/Rivenditore Informazioni

Berthon Spain

Edificio Reina Constanza, Calle Porto Pi 8 - 8B
Palma de Mallorca
Balears
07015
Spain
Fai sapere che hai visto questa barca su TheYachtMarket.
XXXX XXX XXX
ABYA Logo
ABYA YACHT BROKER

Definiamo gli standard di mediazione e trasporto di yacht dal 1912

Scopri di più

Grazie

Il tuo messaggio è stato inviato.

Richiedi altre foto

Invia a un amico per email

Inviando questo modulo, accetti la nostra Informativa sulla privacy e la nostra Politica sui cookie

Inviando questo modulo, accetti la nostra Informativa sulla privacy e la nostra Politica sui cookieSito protetto da Google reCAPTCHA Si applicano l'Informativa sulla privacy e i Termini di servizio

Segnala questa barca

Grazie! Il tuo messaggio è stato inviato

Perché non registrare il tuo interesse per queste barche simili?

Ai venditori delle barche che hai selezionato invieremo i seguenti dettagli: il tuo nome, indirizzo email, numero di telefono (se fornito), paese e le barche a cui sei interessato.

Richiedi maggiori informazioni

Cambia unità di misura

Questa funzione richiede l'abilitazione di alcuni cookie sul tuo browser.

Mostra prezzo in:

Mostra lunghezze, larghezza e pescaggio in:

Mostra la cilindrata o il peso in:

Mostra capacità o volume in:

Mostra velocità in:

Mostra distanza in:
