The Fisher 25 was launched in 1975, the smallest of the popular range of Fisher Motor Sailors designed by Wyatt and Freeman. Retaining the iconic Fisher profile the design also retains the robust build of her larger sisters. With over 250 hulls built and the Fisher 25 MkIII still in production the design has proven to be a popular choice with those seeking a small and capable motorsailer.

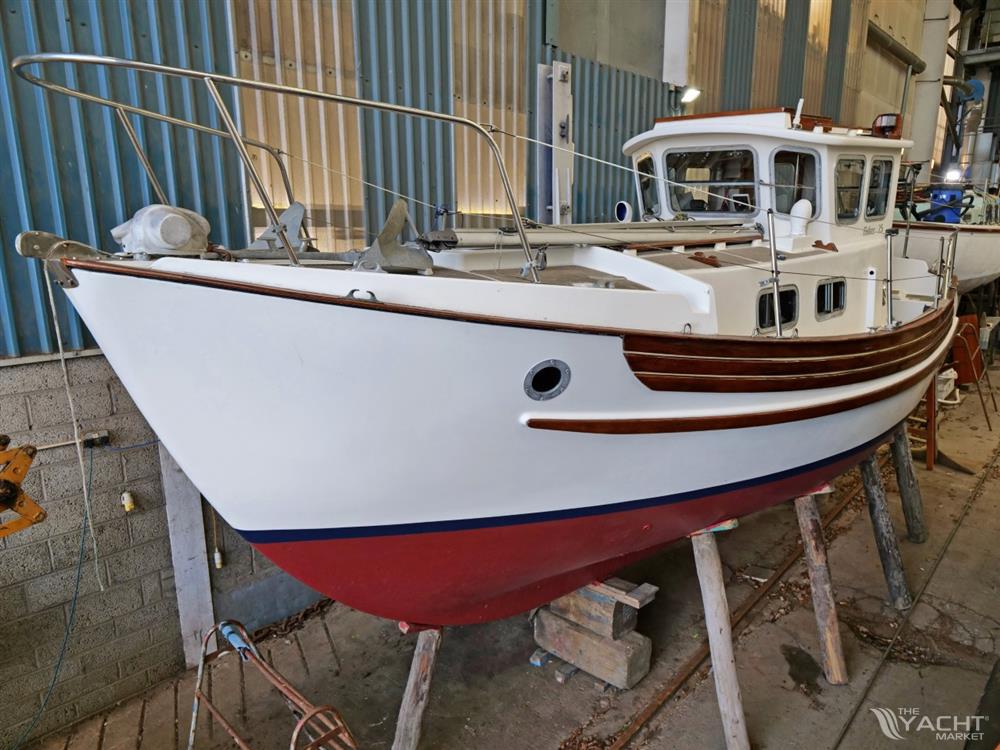

Currently lying ashore the Fisher 25 MACGUFFIN has just had her annual maintenance regime completed, including:
Servicing of engine
Wash and polish of topsides and coachroof
Professionally re-coating of the external brighwork
Application of fresh antifouling
The Fisher 25 MACGUFFIN is now ready to be launched for the 2025 season. Available for immediate viewing by prior appointment.
CONSTRUCTION
Hull Construction:
Single-piece GRP moulded hull with full-length keel.
Polyester glass laminate, hand consolidated.
GRP formed internal structural members
Plywood bulkheads laminated to hull and deck
Hull finished in original off-white gelcoat externally
Hardwood imitation top strakes.
Alloy framed, toughened glass portholes forward to port and starboard
External brightwork professionally re-coated in December 2024
Hull finished below the waterline with red antifouling with navy boot top line
Deck & Superstructure Construction:
GRP moulded deck with integrated cockpit, coachroof, side decks and bulwarks.
Moulded GRP wheelhouse joined to deck moulding below the window line.
Polyester glass laminate, hand consolidated, balsa core in the way of horizontal panels.
Deck and wheelhouse moulding finish in original off-white gelcoat.
Treadmaster non-slip panels to finish side decks and cockpit seating.
Alloy framed, toughened glass windows
Hardwood grabrails, capping rail and coaming tops.
Sliding door to access wheelhouse.
External brightwork professionally re-coated in December 2024
Keel & Rudder:
Full-length keel as part of hull moulding.
Encapsulated ballast within keel.
Transom hung full-depth rudder
Rudder skeg supported
MACHINERY
Engine & gearbox:
Bukh DV20 marine diesel engine
2 cylinder, naturally aspirated, raw water cooled
Mechanical reversing marine gearbox
Single lever morse controls
Maintenance & Performance:
Engine last serviced January 2025
Cruising speed 5.5kts
Propulsion & Steering:
Stainless steel propshaft
Rope cutter
Bronze 3-blade propeller
Single station wheel steering in wheel house
Solid hardwood tiller to allow steering from cockpit
Autopilot:
Autohelm wheel pilot
Condition unknown
ELECTRICAL SYSTEMS
Voltage systems:
12VDC onboard power system
230VAC shore power system
Shore Power System:
Extension lead to connect to shore supply
Single 16 amp connection point
Hardwired RCD-protected system. Separate 50amp USA inlet.
3 pin UK sockets, battery charger, immersion heater
Battery Banks:
Engine Battery – 1x 12VDC lead acid battery
Domestic Battery – 1x 12VDC, lead acid battery
Alternators:
Single engine driven 12VDC alternator
PLUMBING SYSTEMS
Fresh Water:
Pressurised cold water only system
Cold water taps in galley and heads
Salt Water:
Manually pumped tap in galley
Bilge Pumps:
Manual Bilge Pump
Electric Bilge Pump
TANKAGE
Fuel:
Single diesel tank
Approximate capacity 227ltrs
Fresh Water:
Single freshwater tank
Approximate capacity 182ltrs
NAVIGATION & COMMUNICATION EQUIPMENT
In Wheelhouse:
Speed/Log – Stowe Navdata – Condition unknown
Depth – Stowe Navsounder - Condition unknown
Plotter – Garmin GPSMAP200 – Condition unknown
Radar – Raytheon Rastascan – Condition unknown
Electronic Compass – Autohelm ST50 – Condition unknown
Magnetic Compass
Communications Equipment:
VHF #1 – Kelvin Hughes HUSUN Compact
VHF #2 – Raytheon Ray 200
DOMESTIC EQUIPMENT
Galley:
Galley Stove – Nelson gas cooker, two bruner, oven and grill
Stainless steel sink
Cold water tap
Manually pumped salt water tap
Heads:
Toilet – Jabsco manual marine toilet
Wash hand basin
Cold water tap
Heating & Ventilation:
Eberspacher D3L diesel fired, blown air system - Not operational
Outlets in wheelhouse and saloon
Lighting:
Overhead lighting in wheelhouse, saloon and heads
Bulkhead-mounted lighting in the forward cabin
ACCOMMODATION
Summary of Accommodation:
Twin cabin forward
Heads
Saloon
Galley within saloon
Quarter berth
Wheelhouse
Description of Accommodation from Forward:
Forward Cabin:
Single berths outboard to port and starboard in standard V-configuration
Access hatch to chain locker forward of bunks
Hull portlights above bunks
Hop-up step between berths at forward end of standing space.
Cave lockers at sole level to access storage space beneath aft end of bunks
Locker storage beneath bunk bases
Heads:
To port, forward of saloon
Inboard-facing manual marine toilet located outboard
Counter-top outboard of toilet with an opening porthole above
Pull-out wash hand basin unit with cold water tap below the countertop
Hanging locker opposite heads, outboard to starboard
Galley:
Self-contained linear galley unit at the forward end of saloon, outboard to starboard
Gas cooker located forward
Inset stainless steel sink with chopping board in-fill aft of cooker
Crockery storage unit outboard of cooker forward
Selection of storage lockers beneath cooker and sink unit.
Saloon:
Open plan saloon with galley unit forward to starboard.
L-shaped settee to port
Settee converting to occasional single or double berth as required
Short bench seat aft of galley unit to starboard with quarter berth extending aft
Folding saloon table, stowing on aft bulkhead
Selection of storage compartments outboard of port side settee and backrest
Wheelhouse:
Access to saloon forward to starboard
Access to cockpit aft to starboard with sliding door
Helm station to port with bench seat for helm
Fore and aft bench seat outboard to starboard
Engine instrumentation and switch panel immediately forward of helm
Nav instrumentation mounted above dashboard forward, spanning full width or wheelhouse.
Storage lockers within seating units
Large, full-depth cave locker outboard of helm station to port
Sole lifting to provide full access to engine space.
DECK EQUIPMENT
Rig:
Deck stepped, masthead ketch rig
Galvanised steel tabernacle for main mast
Anodised alloy, single spreader main mast
Anodised alloy, single spreader mizzen mast
Anodised alloy booms for both masts
Stainless steel standing rigging.
Roller reefing genoa
On-mast roller reefing main and mizzen
Winches:
Primary Winches – 2x Lewmar 7, single-speed
Sails:
All sails laundered and serviced by sailmaker winter 2024/25
Genoa – Roller reefing
Mainsail – On-mast roller reefing
Mizzen – On-mast roller reefing
Anchoring & Mooring:
Bower Anchor – 20lb Harbourfast plough anchor on chain rode
Kedge Anchor – 25lb Sowester plough anchor
Anchor Windlass – Simpson Lawrence Hyspeed windlass
Mooring Warps – Selection
Fenders – Selection
Boat Hook
General:
Single stainless steel bow roller
Stainless steel pushpit rail
Gunwale-mounted stainless steel stanchions supporting double-tier guardwires
Electric anchor windlass mounted centrally on foredeck
Centrally located, deck-mounted mooring cleat on foredeck
Fairleads mounted on toerail forward to port and starboard
Gunwale mounted mid-ship mooring cleats port and starboard
Stainless steel samson posts mounted on the gunwale to port and starboard aft
Hardwood grabrails run along the coachroof to the port and starboard
Hardood grabrails run along the wheelhouse roof to the port and starboard
Nav lights mounted in hardwood boxes to port and starboard sides of wheel house roof
Moulded seating spanning the full width of the transom at the aft end of the cockpit, base lifting to provide locker access.
Transom-mounted stainless steel folding swimming ladder
Navigation Lights:
Low level navigation lights
DISCLAIMER
In this case we are acting as brokers only.
The Owner is not selling in the course of a business. whilst every care has been taken in their preparation , the correctness of these particulars is not guaranteed. The Purchaser is strongly advised to check the particulars and where appropriate at their expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.
This vessel is offered subject to prior sale, price change, or withdrawal without notice
