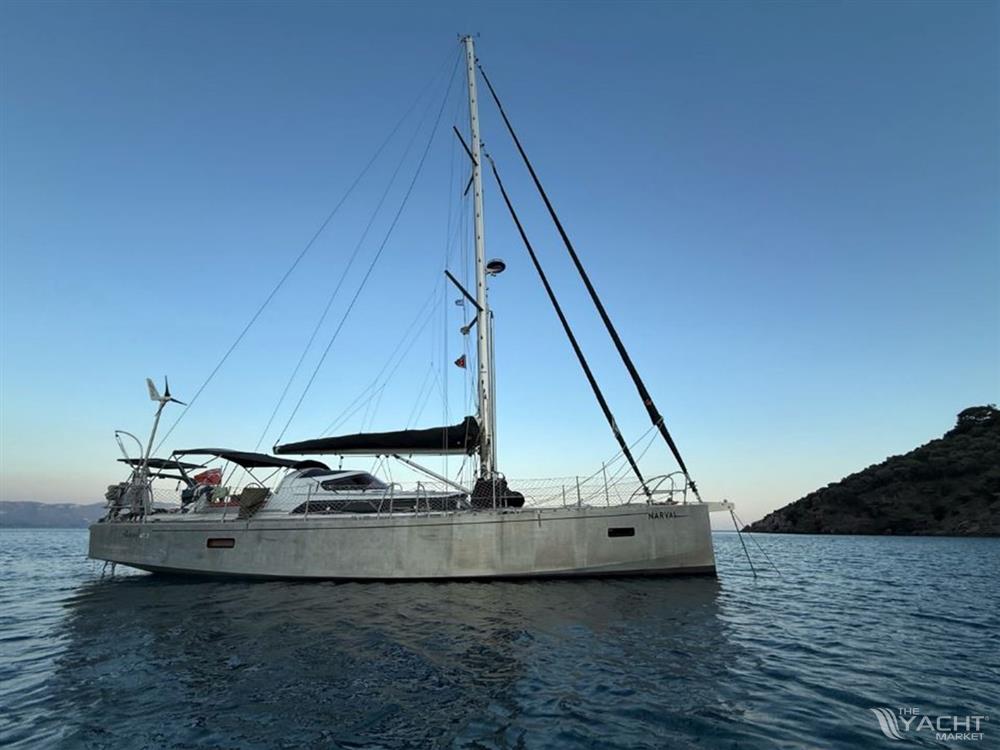

BOREAL Boréal 47.2 à vendre (2023) dans Bodrum, Turquie

The Boréal 47.2 is a rugged and dependable 4 wheel-drive bluewater cruising yacht which offers the ability to cruise worldwide in safety and security. This yacht was built in 2023 and commissioned the following year. She is owned by a very experienced yacht owner who had her extremely highly specified. His plans have now changed so NARVAL is now being offered for sale in sparkling condition and ready to sail. She provides an opportunity to buy a very new yacht now, without waiting for your yacht to be constructed and snagged.

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean”

Hull Construction:

• Triple chines on frames and floating stringers.
• 5083 and 5086 H111 aluminium.
• Mig and Tig welding in Argon controlled by sweating.
• 100 x 10 Ribs, 12 x 40 stringers, floor-plate thickness 8mm.
• Watertight collision bulkhead 1.85m behind the bow.
• Watertight bulkhead at the rear, before rudder post and dagger boards.
• Flat keel 120 x 10, enhanced to 300 x 30 at the forefoot.
• Chain plates and reinforcements under chain plates integrated into structure.
• Beams 100 x 10.
• Tube embedded in the beams to bring the chain to the anchor locker at the foot of the mast.
• Engine cradle and sternpost.
• Keel plate 10mm, bottom plate 8mm.
• Chines: lower and middle 6mm, top 5mm.
• Deck, roof, cockpit: 4 and 5mm.
• Transom: 6mm.

Deck Construction:

• Chain plates 80 X 20.
• All reinforcements for attaching rails and winches.
• 9 x Emplacements for hatches.
• 4 x Bookings for Plexiglas fixed in the upper skin.
• 7 x Windows in the roof in double glazing.
• 2 x Reservations for recessed Plexiglas in the doghouse.
• 1 x Watertight door in aluminium in the doghouse.
• A large rear cargo with 2 x access panels.
• Separate storage for 2 x gas bottles (13kg).
• Sail locker in the front with access by Goiot hatch.
• Lifting stern platform with its own bathing ladder.
• Cockpit seatings & cockpit floor covered with synthetic teak.
• Painting of deck PU white until deck line.
• Anti-slip PU on deck and roof (grey).

Keel & Rudder:

• Swinging centreboard.
• NACA profile centreboard, flat structures of 10mm, 8mm skin.
• Well 8mm reinforced by ribs and a T-shaped structure of 50x50x5.
• Shaft in Ertalon diameter 120.
• 2 x Lines to lift and lower the centreboard (line to lift brought back to the cockpit).
• 2 x Lifting dagger boards in polyester (fuse) in their casing at the rear.
• Single rudder in aluminium, NACA profile, structure in flats of 8mm, 6mm skin.
• Rudder stock diameter 100mm, self-aligning Ertalon bearings.
• Emergency tiller.
• 3,800kg, below the bottom plate, in the keel core, made of massive lead, insulated and embedded in sealing resin and welded in watertight compartments.

Machinery

Engine & Gearboxes:

• 1 x Yanmar 80hp (Yanmar 4JH80).
• Electrical bipolar installation, mounted on flexible 'Silent Blocks'.
• Acoustic insulation with absorbent foam and visco-elastic mass.
• Ventilation ducts for fresh air.
• Control panel with alarms in the companionway.
• Access through aft cabins and companionway.
• Single lever engine control at port steering column.

Propulsion & Steering:

• 2 x Steering columns, 1 x with single engine control lever and system of steering cables.
• Enough space to build in plotters, pilot, and other control panels.
• 2 x Steering wheels diameter 900mm.
• Leather on the 2 x steering wheels.
• Cockpit table with a compass.
• Bow thruster.
• Folding prop Featherstream (fixed prop as back-up).
• Rope cutter on shaft from SPURS.

Electrical Systems

Voltage Systems:

• 1 x Charge distributor.
• 1 x Panel 220V.
• Circuit 12V/220V.
• 1 x Electric panel bipolar 12V dedicated to living area 15 x functions with bipolar leakage tester, voltmeter, and circuit breakers.
• 1 x Electric panel bipolar 12V dedicated to navigation in doghouse.
• 1 x Shunt per power source.
• 2 x USB sockets on helm column.
• 3x Additional 12V in cabins.
• 1x Additional 220V plug.

Battery Banks:

• 5 x Batteries (1 x dedicated to the engine, 4 x service batteries of 130 amps).
• 1 x Philippi Batteries and tanks manager.

Battery Chargers:

• 1 x Battery charger 220V/12V.

Alternators:

• 1 x Alternator on engine 12V/115 A.
• Sterling alternator to battery charger.

Generator:

• Generator PANDA 5000i NEO.

Shore Power:

• 1 x Shore plug 220V.

Other Electrical:

• 1 x Sacrificial anode on the hull.
• 2 x Sacrificial anodes on the centreboard.
• 2 x Sacrificial anodes on the rudder.
• 1 x Sacrificial anode on the propeller.
• 1 x Sacrificial anode on the rope cutter (rope cutter optional).
• Insulation transformer Victron Auto 110V-220V.
• Hydro generator Watt&Sea.
• Wind generator Superwind.
• 1 x 400-watt solar panel on aft gantry.
• Solbian solar panels on roof of the doghouse 520W => 1 x in the roof of the doghouse.
• Converter Victron Multiplus 12V/3000W/120A.

Plumbing Systems

• Deck wash.

Fresh Water & Water Heating System:

• Pressurised central water unit 15l/min, self-priming and with electronic control.
• Water heater 220V, 40 litres with heat exchanger on engine.

Watermaker:

• Preinstallation for watermaker.

Bilge Pumps:

• 4 x Electric bilge pumps 12V.
• 1 x Manual bilge pump.

Tankage

• Deck fillers; 1 x diesel, 2 x blackwater, and 2 x water.
• Tanks painted with food quality paint.
• 1 x Diesel gauge.
• 2 x Water gauges.
• 1 x Grey water gauge.
• 2 x Black water gauges.

Fuel:

• Total capacity of 662 litres (635 litres + 27 litres).

Fresh Water:

• Total capacity of 635 litres in 2 x tanks built into hull on both sides of the centreboard casing.

Grey/Blackwater Holding Tanks:

• 2 x Holding tanks for black water.
• 1 x Holding tank grey water in front heads.

Navigation Equipment

• Fixed computer in doghouse seat with screen on stand 22’ Samsung monitor.
• 2 x Furuno TZT 12F V3 plotter in helm column, including MaxSea T0 Megawide chart.
• Keyboard and mouse with MAXSEA TZT, including the Routing and Current modules, 1x Map Megawide, and 1x Map North Atlantic and Mediterranean.
• VHF ICOM IC M506 + antenna.
• ICOM MA 500 TR AIS.
• Auto pilot NKE Gyropilot + Back-up NKE pilot (complete installation but only compass mode).
• NKE Wi-Fi module.
• NKE true wind module.
• Radar M1835 Furuno DRS4 NXT radar with PG700 compass (for overlay).
• Remote microphone on helm column Icom Hm195.
• Hailer in mast (Foghorn/12W waterproof loudspeaker).
• İridium Go installed with antenna.
• EPIRB Ocean Signal E100G.
• YACHT ROUTEUR Micro S5 Global + Wi-Fi Booster S5.

Domestic Equipment

• Washing machine 3KG.

Galley:

• 1 x Stainless steel sink bowl with single lever hot and cold water under pressure.
• 1 x Gimballed 3-burner gas oven ENO with potholders and electronic ignition (GN Cooker optional).
• 1 x Fitted refrigerators with 2 x drawers 144 litres.
• 1 x Manual gas stopcock with gas alarm (remote solenoid optional).
• 1 x Sea water foot pump and spout.
• 1 x Additional foot pump for fresh water in kitchen.
• Fresh water foot pump in galley.
• Seagull filter.
• Gas alarm.

Heads/Showers:

• 2 x WCs.
• 2 x Showers.
• Shower (cold and warm water) in the cockpit.

Heating & Ventilation:

• Additional dorades on deck with protecting bar opening.
• 5 x SIROCCO BLACK fans.
• Refleks heater.
• Added heater/blower on cooling system of the engine.
• Radiators in every cabin.

Accommodation

Summary of Accommodation:

• Insulation: Extruded polystyrene with a thickness of 80mm under the bridge, 60mm under the roof and 80mm along the hull above the waterline and cork sprayed on frames.
• Joinery made of solid wood and veneer in natural Ash (or in oak - optional).
• Main bulkheads in 15mm plywood.
• Plywood furniture in 10mm plywood.
• Soles in 15mm plywood.
• Inspection traps - wherever possible - fixed part fitted around the bulkheads and furniture to facilitate the opening and prevent friction.
• Linings in white Comacell and white sky.
• Quality marine hardware.
• Magnet and door stop on each door.
• Upholstery saloon in Stamskin.
• Mattress foam thickness of 100mm.
• Anti-roll canvas starboard cabin bed.
• Airspace under mattress.
• Secret space for storage of passport.
• Solution from Dometic for curtains on lateral port holes and windows.
• Solution from Dometic for curtains and mosquito on 4 x hatches (saloon, front cabin).

Portholes & Windows:

• 2 x Opening windows in the side of the roof Lewmar Size 3.
• 2 x Opening windows in the side of the cockpit Lewmar Size 4.
• 4 x Fixed hull ports (2 x in forward cabin, 1 x in each ae cabin).
• 2 x Smoked Plexis 15mm in the doghouse.
• 4 x Transparent Plexis at the rear of the doghouse.
• 7 x Windows in deck saloon with double glazing.
• 7 x Plexiglass roof replaced by double glazing.
• Kit of Plexis to insert in hatches (for condensation).

Description of layout from forwards:

Forward Cabin:

• 1 x Double berth with storage under bed base and 2 x individual mattresses.
• 2 x Ceiling lights and 2 x reading lights, 1 x at each headboard, 1 x socket 12V.
• 1 x Hanging locker.
• Several cabinets.

Forward Heads:

• 1 x Manual marine toilet.
• 1 x Cabinet with sink, mixing faucet and storage.
• 1 x Separate shower with door, shower tray and mixing faucet shower.
• 1 x Mirror.
• 2 x Ceiling spotlights.

Galley:

• 2 x Cabinets for crockery & 2 x lower cabinets.
• 1 x Stainless steel handrail.
• 3 x Ceiling spotlights, 1 x red (for the night), 1 x socket 220V.

Deck Saloon:

• Raised deck saloon in U shape with view.
• Saloon table convertible into an additional double bed with toe rail (with adapted upholstery, tailor made).
• Upholstery in Stamskin (optional with a lot of colour choices).
• L-bench with important storage volumes.
• 1 x Bar furniture, 2 x cabinets.
• 1 x Library shelving.
• 2 x Cabinets.
• Back rest on central seat of saloon (optional).
• 2 x Ceiling spotlights.
• Additional reading light in saloon (with dimmer).

Watch Post/Chart Table in Doghouse:

• Panoramic chart table with grey panel for navigation instruments.
• 1 x Curved seat with its cushion covered in Stamskin.
• 1 x Ceiling light.
• 1 x White/red fixed light for night passages.
• 1 x Socket 12V & 1 x socket 220V.

Aft Heads (Starboard):

• 1 x Manual marine toilet.
• 1 x Cabinet with sink and mixing faucet/shower.
• 1 x Shower tray.
• 1 x Mirror.
• 1 x Ceiling spotlight.

2 x Aft Cabins:

• Port aft cabin with double bed.
• Starboard aft cabin with doubled bed with two bunks (bunk/storage).
• Configuration as technical cabin (optional).
• Storage lockers under each bed.
• 1 x Hanging locker.
• 1 x Closet.
• 1 x Locker down the side.
• 1 x Ceiling light, 2 x reading lights, 1 x socket 12V.

Deck Equipment

Rig:

• 1 x Anodized aluminium mast with double pushing spreaders.
• Length 17.5m.
• Rigging in single strand stainless steel.
• 1 x Anodized aluminium boom.
• 1 x Mast base (deck stepped mast).
• 2 x Winch 2-speed 40 AST (Lewmar).
• 1 x Genoa furler Profurl LC42.
• 1 x Mainsail halyard, 1 x topping lift and 1 x mainsail sheet.
• 1 x Mainsheet system with webbing on the cabin roof.
• 1 x Outhaul of the mainsail and 3 x reefing lines brought back to the cockpit.
• 1 x Genoa halyard and 2 x genoa sheets.
• 2 x Lines to lie and lower the centreboard (line to lift brought back to the cockpit).
• Rigid vang.
• Staysail on furler with halyard, 2 x sheets & running check stays.

Winches:

• Lewmar winches.
• 2 x Primary winches for genoa 2-speed self-tailing 55 AST.
• 2 x Secondary winches for mainsail sheet 2-speed self-tailing 50 AST.
• 1 x Central electric winch from Antal.
• 2 x 5 Lewmar jammers around central winch.
• 3 x Winch handles.
• 2 x Genoa rails with car.
• Principal lines brought back to central winch.
• Aluminium pole.
• Rigid vang.
• Lazy bag and Lazy Jack.
• Folding steps to top of mast.
• Boom restraint.

Sails:

• Sail Area: 100m².
• Mainsail: 45m².
• Genoa: 55m².
• Staysail: 26m².
• Mainsail with battens (Elvström, triradial Hydranet) and 3 x reefs 45m².
• Genoa on furler with UV protection strip (Elvström, triradial Hydranet) 55m².
• Staysail 29m² (triradial Hydranet).

General:

• Goiot hatches.
• 1 x 490 x 490 forward sail locker.
• 2 x 440 x 440 forward cabin.
• 1 x 390 x 240 front heads.
• 1 x 390 x 240 starboard gangway.
• 2 x 490 x 360 saloon.
• 1 x 390 x 240 aft heads.

Anchoring & Mooring Equipment:

• Rails in the fore peak (1 x each side to ease hanging fenders and mooring lines).
• Bow fitting with double anchor roller and aluminium tube under deck bringing the chain to the anchor locker.
• Chain locker at base of mast, water drains into the sump, support for windlass and rollers 8 x welded cleats.
• Windlass 12V 1500 Watt for 12mm chain gypsy and wrapping end.
• Central mooring cock.
• Maxwell remote control for anchor winch with chain counter.
• Spade S160 + 100 m chain 12 mm.
• Spade S120 + 10 m chain as back-up.

Covers, Canvas & Cushions:

• Goiot covers in port doghouse roof.
• Sunshades for both doghouse windshields.
• Cushions for cockpit (complete set to be clipsed).
• Bimini (in two parts, usable under sails + 2 x side covers).
• Sunshades for both doghouse windscreens.
• 2 x Covers for steering wheels & pedestal by nav. equipment.
• Cover for cockpit table by nav. equipment.

Tender & Outboard:

• Tubes in bow compartment (1 x on each side) for hanging ropes.
• 4 x Wichard padeyes on deck (for dinghy attachment).
• Outboard motor mount on stern pulpit.
• Tender engine HB Yamaha 6hp.
• Hoist for outboard engine on pole wind generator.

Safety Equipment
