The Nauticat 33 was the design which propelled Nauticat into mass production boat building. Proving to be immensely popular around the world the model had a production run spanning almost 20 years before making way for the new Nauticat 331. Offering a huge amount of living space for a vessel of just 10 meters in length, the design found favour with cruisers and liveaboards alike.
NOMAD is one of the last of the Nauticat 33’s before the introduction of the 33 MkII. Below decks she benefits from the later style of interior fitout and improved finish quality. On deck she has the later 33MkII style coachroof and deck layout with the original long keel style hull. A much loved family boat, NOMAD, has proved to be the ideal cruising boat for the current owners, who are only selling due to a pending upgrade to a larger Nauticat. Her extensive inventory includes:
Full osmosis treatment 2018/19
Ford Lehman 2722 (90hp) marine diesel engine with Velvet Drive gearbox
Dual helm stations with full engine controls
Victron Phoenix Smart Charger battery charger
Sterling Power Products ProPower SB inverter
NASA BM-1 battery monitor
Vetus 75kgf bow thruster
Raymarine Evolution autopilot system with hydraulic drive (2021)
Raymarine C120 Classic chart plotter
Raymarine ST60+ and NASA Clipper navigation instruments
Icom IC-M330 DSC VHF
Ebersapcher D3L diesel-fired blown air heating system
3-burner gas cooker with oven
Built-in fridge and separate, top-loading freezer
Jabsco electric marine toilets
Holding tank for forward heads
Lofrans Tigress electric windlass

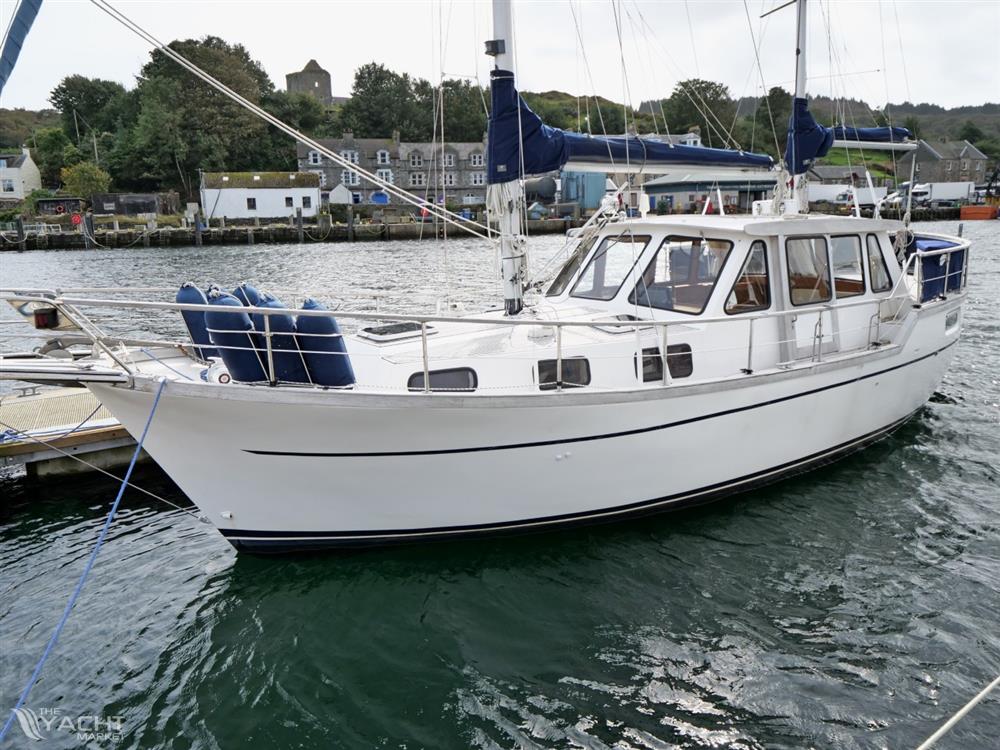

Lying afloat in Tarbert Harbour, Loch Fyne the Nauticat 33 NOMAD is available for immediate viewing by prior appointment.
CONSTRUCTION
Hull Construction:
Canoe sterned hull with stepped sheerline and flared bow sections
Single-piece GRP moulding
Hand-consolidated GRP laminate
Fin profile GRP moulded keel
Skeg hung rudder aft
GRP formed internal structural members with plywood bulkheads
Full osmosis treatment completed in 2018/19
Finished below waterline with blue antifouling
Wintered ashore annually during current ownership with covers to protect decks
Deck & Superstructure Construction:
GRP moulded deck integrating coachroof and wheelhouse superstructure
Hand-consolidated GRP laminate
Moulded finished in white gelcoat
Teak laid foredeck, side decks and aft deck
Coachroof finished with laid teak panels
Keel & Rudder:
GRP long keel with encapsulated ballast
Skeg hung rudder
Traditional stuffing type sterngland
MACHINERY
Engine & gearbox:
Ford Lehman 2722 marine diesel engine
90HP
4 cylinder, naturally aspirated, indirectly cooled.
Borg Warner CR-71 Velvet Drive hydraulic gearbox
Single lever Morse engine controls, dual control stations
Gauges in wheelhouse for Temperature, Oil pressure engine, gearbox oil pressure, rev counter and engine hours
Maintenance & Performance:
Engine last serviced Winter 2024/25
Selection of cruising spares for engine aboard
Engine running hours – 3682hrs
Cruising Speed under engine 7kts
Propulsion & Steering:
Stainless steel prop shaft
Traditional stuffing-type shaft seal
3-blade bronze fixed prop
Hydraulic steering system with dual stations
Bow Thruster:
Vetus 75kgf bow thruster
Tunnel-mounted
Joystick control station at external helm station
Motor professionally overhauled winter 2024/25
Autopilot:
Raymarine Evolution autopilot system (2021)
Raymarine P70R control heads at both helm stations
Raymarine ACU150 Actuator
Raymarine hydraulic drive pump
ELECTRICAL SYSTEMS
Voltage systems:
12VDC onboard power system
230VAC shore power system
Shore Power System:
Extension lead to connect to shore supply
Single 16 amp connection point
Hardwired RCD-protected system.
3 pin UK sockets, battery charger, immersion heater
Battery Banks:
Engine/Windlass Battery – 1x 12vDC, Varta, 170Ah, lead acid batteries (2020)
Domestic Battery – 2x 12vDC, Varta, 180Ah, lead acid batteries (2020)
Bow Thurster Battery – 2x 12vDC, Varta, 100Ah, lead acid batteries (2020)
Battery Monitor:
NASA BM-1 battery monitor – showing domestic battery bank only
Charging:
Victron Phoenix Smart Charger (2020)
230vAC – 12vDC, 30amp, 3 output
Bluetooth connectivity
Inverter:
Sterling Power Products ProPower SB (2022)
12vDC – 230vAC, 1600w
With remote control panel
Alternators:
Single engine-mounted alternator
Other Electrical:
Windscreen Wipers – Fitted on all three forward-facing wheelhouse windows
Searchlight – Stainless steel searchlight mounted on wheelhouse roof, manually controlled
Horn
12vDC charging socket at helm station
New switch panels fitted in 2018
PLUMBING SYSTEMS
Fresh Water:
Pressurised hot and cold water systems
Mixer tap in galley
Mixer tap in forward head with head extending for use as shower
Mixer tap in aft heads
Hot water provided from calorifier, heated by engine cooling water or 230VAC immersion heater
Salt Water:
Pressurised salt water tap in galley
Pressurised salt water deck wash system, outlets in anchor locker and on aft deck
Bilge Pumps:
Manual Bilge Pump
Electric Bilge Pump
TANKAGE
Fuel:
Twin diesel tanks
Approximate capacity of each tank 300ltrs
Approximate total capacity 600ltrs
Fresh Water:
Single fresh water tank
Approximate capacity 450ltrs
Holding Tank:
Single holding tank
Stainless steel tank construction
Approximate capacity 70ltrs
Tank Monitoring:
Freshwater tank gauge in galley
Diesel tank gauges for both tanks in wheelhouse
NAVIGATION & COMMUNICATION EQUIPMENT
On Deck:
Depth – NASA Clipper
Wind – Raymarine ST60+
Repeater – Raymarine ST60+ Graphic display
In Wheelhouse:
Plotter/Radar – Raymarine C120 Classic with Raymarine 2kw Radar scanner mounted on mizzen mast
Magnetic Compass – Suunto Type D-110
Communications Equipment:
DSC VHF – Icom IC-M330
DOMESTIC EQUIPMENT
Galley:
Cooker – Mobilife gas cooker, 3 burner and oven, gimbal mounted
Fridge – Built-in top loading fridge with 12vDC compressor
Freezer – Fitted within locker space beneath lower saloon seating. Self contained 12vDC freezer
Double stainless steel sink
Mixer tap
Manually pumped salt water tap
Selection of melamine crockery and cutlery
Forward Heads:
Toilet – Jabsco electric marine toilet, salt water flush, discharging overboard or to holding tank
Wash hand basin
Mixer tap with head extending for use as shower head
Aft Heads:
Toilet – Jabsco electric marine toilet, salt water flush, discharging overboard
Wash hand basin
Mixer tap
Heating & Ventilation:
Ebersapcher D3L diesel-fired blown air heating system
Thermostatic cabin control in mast cabin
Outlets in forward cabin, dinette, wheelhouse, aft cabin and aft heads
Lighting:
Overhead lighting throughout
Bulkhead-mounted reading lights in lower saloon and cabin
LED bulbs fitted to all lights
Entertainment:
PYLE Radio/SD/USB/Bluetooth head unit
Speakers in wheelhouse and the dinette
TV – Mounted on aft bulkhead in lower saloon
ACCOMMODATION
Summary of Accommodation:
Twin/Double cabin forward
Forward heads
Linear galley
Lower saloon/dinette converting to double berth
Wheelhouse with deck saloon
Master aft cabin with en-suite heads and separate wash hand basin
Accommodation Finish:
Joinery work of teak veneered plywood with solid teak trims
Teak and holly veneered plywood soleboards
Vinyl-covered ply panels with varnished teak trims between to finish headlining
High-quality foam mattresses in forward and aft cabins
Cream leather upholstery in dinette and wheelhouse
Description of Accommodation from Forward:
Forward Cabin:
Two single berths in the traditional V-berth layout
Infill section to create double V-berth
Overhead lockers running length of bunk outboard to port and starboard
Bow thruster below bunk forward
Holding tank below aft section of bunk to port
Batteries for bow thruster below starboard aft side of bunk
Heads:
Located on the port side, aft of the forward cabin
Electric marine toilet, mounted inboard forward
Countertop outboard with inset wash hand basin
Mixer tap and dedicated shower head fitting
Vanity locker outboard
A self-contained hanging locker is located immediately opposite to starboard
Galley:
Linear style galley running along the starboard side
Full-length countertop
Gas galley stove, three burner with oven and grill mounted forward
Inset double stainless steel sink with mixer tap
Below countertop top-loading fridge located under aft section of worktop
Selection of lockers above worktop, outboard
Storage drawers and lockers beneath worktop
Lower Saloon:
Located opposite galley to port
U-shaped settee wrapping around table
Dining table mounted centrally between settee
Table drops down to convert settee into a double berth, with two infill cushions
Selection of lockers and storage shelves outboard of table, locker doors with stained glass fronts
Bulkhead-mounted bookshelf forward
Self-contained freezer mounted in forward section of settee base
TV mounted on aft bulkhead
Storage lockers behind settee backrests outboard
Wheelhouse:
Saloon-style wheelhouse layout with seating and table
Sliding access doors port and starboard.
Sliding deckhead hatch overhead forward
Helm position forward with the centrally mounted, leather covered wheel
Chart table/working surface to the port of the wheel
Access forward to accommodation to starboard of the wheel
L-shaped bench seating fitted along aft end and round port side of the wheelhouse
Storage locker unit to starboard side of access aft with selection of lockers and counter top above
Access to aft cabin via companionway to starboard at aft end of the wheelhouse
Access to the engine compartment is provided by lifting the sole
Storage locker provided beneath the seating units and outboard, below side decks
Aft Master/State Cabin:
Accessed via companionway from the wheelhouse.
Double berth located outboard to port
Countertop/dresser unit aft of bunk with countertop running athwart ships and wrapping around the starboard side of the cabin with a handing locker forward
Storage lockers overhead above the countertop aft
Access to en-suite heads forward to starboard
Storage lockers below aft berth
Aft En-suite Heads:
Accessed to starboard forward end of aft cabin
Aft facing electric marine toilet mounted inboard forward
Countertop outboard with inset wash hand basin and mixer tap, vanity locker beneath
Large storage locker accessed through locker door forward, inboard of wash hand basin
DECK EQUIPMENT
Rig:
Deck stepped, masthead rigged ketch
Silver anodised alloy masts and spars
Stainless steel wire standing rigging
Selden roller reefing system on forestay for genoa
Slab reefing, mainsail, partially battened
Slab reefing mizzen
Rod kicker for mainsail
Lazyjacks fitted for main and mizzen
Lazyjacks
Winches:
Primary Winches – 2x Lewmar Evo 30, two-speed, self-tailing
Mast Mounted Winches – 2x Andersen 10, single speed
Sails:
Mainsail – White dacron, slab reefing
Genoa – White dacron, blue UV-strip, roller reefing
Mizzen – White dacron, slab reefing
Cruising Chute
Canvas Work:
Mainsail Cover – Stackpack type cover with mastboot and lazyjacks
Mizzen Cover – Stackpack type cover with mastboot and lazyjacks
Sunscreen cover for wheelhouse windscreen
Throttle cover in cockpit
Anchoring & Mooring:
Bower Anchor – 35lb CQR style anchor in chain rode
Stern Anchor – Danforth type anchor
Anchor Windlass – Lofrans Tigress 1200w electric windlass with chain gypsy and warping drum
Fenders – Selection
Mooring Warps - Selection
General:
Stainless steel bow sprit with teak plank finish, supporting forestay forward
Single bow roller to starboard with anchor self-stowing in roller
Stainless steel fairlead mounted on capping rail to port for use when mooring
Stainless steel pulpit and pushpit rails
Stainless steel stanchions supporting stainless steel lower guard rail and laminated teak upper guard rail
Stainless steel fender baskets mounted to port and starboard sides of bow
Guard rail boarding gates port and starboard
Lofrans electric windlass mounted on foredeck, chain self-stowing in locker
Access to anchor chain locker via opening deck hatch forward
Deck-mounted mooring cleats forward, midships and aft
Teak laid decks
Stainless steel guard to protect deck ventilators (dorades) to port and starboard sides of mast
Access to wheelhouse via sliding doors port and starboard.
Horn and search light mounted on wheelhouse roof forward to starboard
Sliding wheelhouse sunroof
External helm station mounted at aft end of wheelhouse centrally with leather covered steering wheel
Nav instrumentation pod mounted on wheelhouse roof forward centrally
Throttle and bow thruster control to port side of helm
Deck storage boxes outboard to port and starboard aft with covered tops for use as seats.
Two folding canvas chairs for use on aft deck
Swivelling, stainless steel, outboard lifting davit to starboard aft
Outboard storage bracket to starboard side
Stainless steel bathing platform, fitting on hinge system to fold up
Stainless steel dinghy storage rack, fitted to bathing platform
SAFETY EQUIPMENT:
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
Navigation Lights:
Anchor light
Steaming light
Low level running lights
Life saving:
Horseshoe buoy
DISCLAIMER
In this case we are acting as brokers only.
The Owner is not selling in the course of a business. whilst every care has been taken in their preparation , the correctness of these particulars is not guaranteed. The Purchaser is strongly advised to check the particulars and where appropriate at their expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.
This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Unless otherwise stated on the published sales specification the following presumptions are made:
Shaft seal or sail drive diaphragms are more than 5 years old.
Fuel, gas hoses and gas regulators are more than 5 years old.
The vessel doesn’t currently have a GasSafe certificate issued within the last 5 years.
Standing rigging and sails are more than 10 years old.
