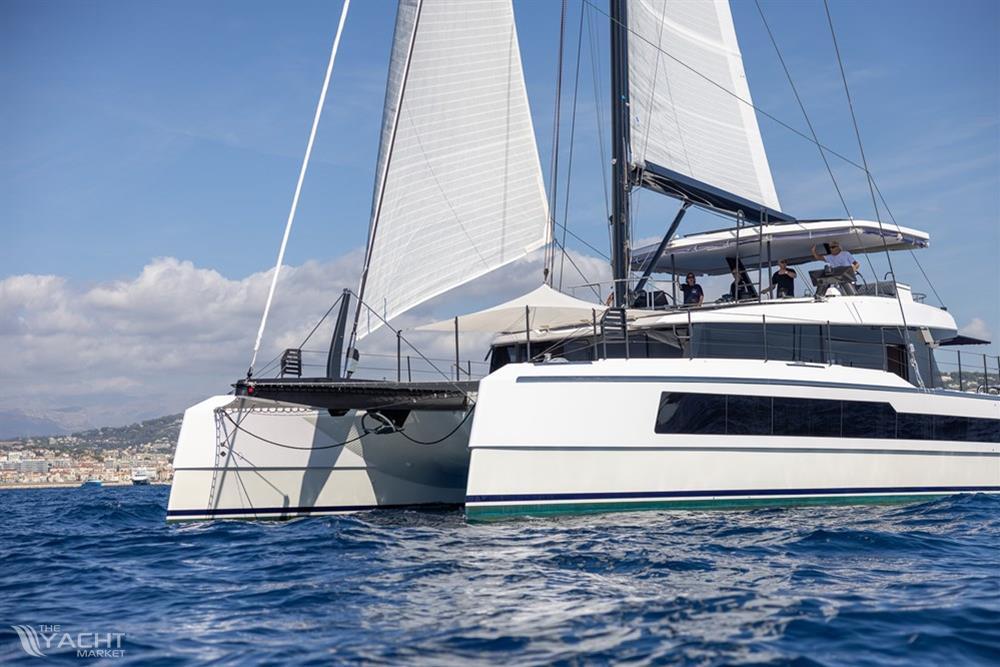

At 68' length overall, the MC68 offers increased volume, enhanced performance and impressive capabilities for spending long periods at sea.
The large flybridge, expansive indoor outdoor living on the main deck the ability to have a crew cabin all in a sea-kindly and fast cruising cat makes this on of the best values in the catamaran market..
Rig
Sloop
Carbon fibre mast from NZ Spars and Rigging, with standing rigging, halyards and control lines
Harken Switch track and mast step.
Canoe V-Boom,
Clear coat finish
Furlers for jib, genoa and Code sail
Carbon composite Longeron with integrated anchor system
WINCHES & SAIL CONTROLS
4 x Harken 70.3 STEA 24VDC Electric Radial
Harken MKV1 Unit 3 headsail furler
Clutches for Mainsail & Jib halyards & sheets
Running rigging and fittings for mainsail and headsail
Sail packages owner supplied, but quotes available upon request.
Broker comments
The MC68 is the "Greyhound" of the McConaghy catamaran series.
With her long waterlines, towering rig and three headsails on furlers to easily change gears the MC68 delivers sailing pleasure.
Combined with the spacious main deck's indoor/outdoor living from the forward cockpit through the saloon and onto the aft deck, this cat delivers the performance, comfort, space and safety you are looking for. The flybridge keeps all sail handling away from the living spaces below, provides excellent sightlines and when sailing is done is a favourite perch for a sundowner and BBQ.
The standard accommodation in the hulls has four cabins with ensuite heads with two aft work spaces and forepeaks.
The MC68 provides the option of having converting one cabin to an excellent crew cabin for one or two crew.
Plus you have the opportunity to build your yacht with one of the world's premier yacht builder focused on creating your yacht to suit your requirements and wishes.
All this space, performance and quality delivered at a competitive price making the MC68 one of the best values in the cruising catamaran market,
INTERIOR and NAVIGATION LIGHTING and DC POWER
CZone DC Digital Switching System including touch screen, ipad compatible, voltage, tank, bilge and fuse alarms, lighting (switches
and dimmers), custom controls for centreboards and hydralic transom (optional)
Remote battery switches under nav station
Reading lights
Down lights
Cockpit Lights
Courtesy lighting
Side window overhang discretely lit with LED lights
1 Red/White Nav Stn Light (Hella 2XT 959 510 851)
1 All round white nav.light (Hella 2LT 980 960-001)
1 Stern light (Hella 2LT 959 909-001)
1 Port light (Hella 2LT 959 900-001)
1 Stbd light (Hella 2LT 959-908-001)
1 Masthead light (Hella 2LT 959 940-201)
1 Tank Sensor Monitor
ENTERTAINMENT
Fusion system with four speakers
PLUMBING
4 - Rule automatic bilge pumps (2,000 GPM each )
2 - Henderson MK 5 Universal Manual Bilge pump
Pressurized hot & cold water system
2 - Isotherm water heaters – 40 Liter tanks slim
1 - Whale Universal Pressure pump 18L/M 45PSI
1 - Deck wash pump salt/fresh water with outlets on aft and fore deck
Black water tanks approx 2 x 120L and 1 x 60L
Fresh water tanks approx 2 x 265L
Fresh Water Level Sensor
Holding tank sensor
RUDDERS AND STEERING
Balanced spade rudders
Self aligning bearings
Hydraulic steering
Emergency tiller
DECK HARDWARE
Lewmar flush hatches drained to waterline
Clear carbon composite stanchions with stainless steel and dyneema lifelines
Recessed coachroof handrails in clear carbon
Foredeck trampolines - dyneema
Deck fittings for Fuel, Water, Black water pump out
ANCHORING & MOORING
Lewmar V6 electric windlass
80kg anchor, 100m chain, 30m warp
6 - Seasmart 300mm folding cleats
2 - stern cleats for Med mooring
PROPULSION
Two 80hp Yanmar engines
Sail Drive and feathering propellers
Single electronic throttle control mounted to starboard helm
Engine instrument panel at helm position
Fresh water engine cooling system
Exhaust waterlocks
Water separator
Exhaust muffler
FUEL
Two Fuel tanks in total approx. 600 liters total
Racor 500 fuel filters
Two Fuel Level Sensors
Two Deck Fillers
Insulation in Engine rooms
ELECTRICAL
AC Switch panel with 16 switches
Shore power cables
Combination inverter
24 VDC Supply
Galvanic Isolator
Two 110 amp 24V alternators
Six (6) lithium ion house batteries
Two (2) AGM engine start batteries
PLUMBING
Four (4) automatic bilge pumps (2,000 GPH each)
Two (2) Henderson MK 5 Manual Bilge Pump
Pressurised Hot & Cold water system
Two (2) Isotherm water heaters - 40 liters each
One (1) Whale Universal Pressure pump 18 l/m 45psi
Two (2) Fresh Water tanks 300L each
Four (4) Black water tanks 120L capacity
DESIGN
Naval Architect: Ker Yacht Design
Interior Design: m2 Atelier
Composite Engineering approved by Bureau Veritas
Certificate CE Category A
PRINCIPAL DIMENSIONS
LOA 20.7m
Max Beam 9.2m
Draft1.4m - 3.75m
Height of mast(above WL)33.3m
Upwind sail area257m2
Standard power2 x 80 HP
Fuel tanks capacity 600L
Fresh water capacity600L
Headroom saloon2.0m-2.4m
Headroom hulls2.0m-2.3m
CONSTRUCTION
Built using a controlled vacuum infusion process and pressed panels of E-glass, carbon composite and Corecell.
Providing lightweight, strength and rigidity.
Composite centreboards featuring push-button deployment with three pre-set positions. Flush with hull when retracted.
Fully deployed : 3.75m
Mid-position : 2.05m
Fully retracted : 1.40m (rudder draft)
Carbon composite Longeron with integrated anchoring system
Balanced spade twin rudders with self aligning bearings
Frameless bi-folding doors with tempered safety glass between saloon and aft deck
Carbon spiral stairs and handrails to fly bridge.
Hydraulic tender lift/swim platform
EXTERIOR FINISHES
Hull and deck painted in high quality two pack polyurethane coating in solid light colour (non-metallic) as standard.
Non-skid areas on the side decks
Lewmar hatches flush with deck, drained to waterline
Six (6) folding cleats
Boat's name and country/port of registration painted on stern
Below waterline surfaces finished with epoxy primer.
INTERIOR FINISHES
All joinery is custom built and finished to McConaghy Boats uncompromising high quality standards
The modern interior is constructed using a mix of hand-painted surfaces, lightweight timber laminates with compressed foam cores and soft fabric liners.
Blinds and screens pack (all side windows and overhead hatches, excluding forward facing windows in saloon and bi-fold doors). Includes mosquito netting for all opening hatches.
