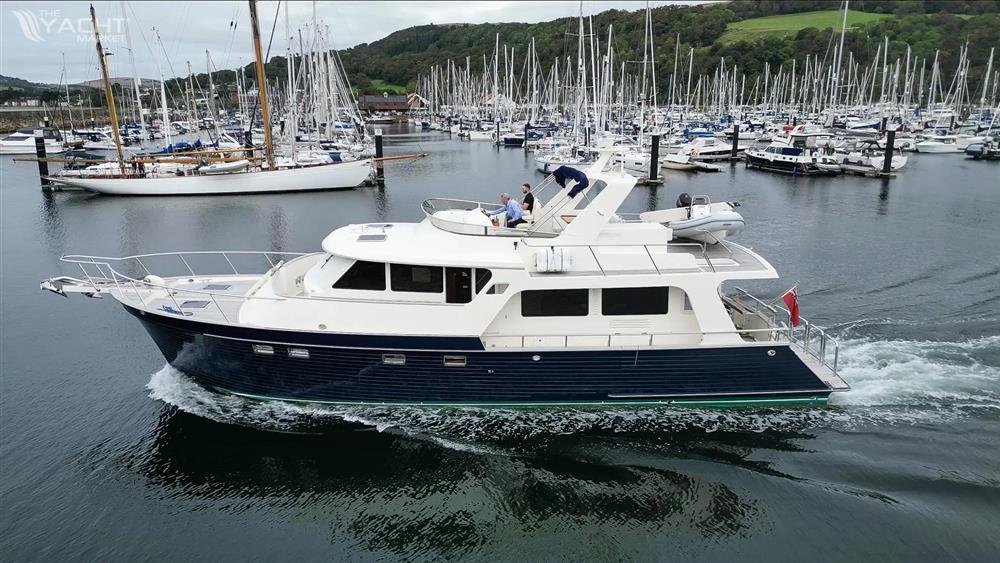

Marlow Explorer 57e Zu verkaufen (2006) in Largs, Vereinigtes Königreich

Boat Overview

Stunning Marlow 57 E Explorer Yacht for sale. This Marlow 57 E is a UK VAT paid, RCD Compliant example of this magnificent explorer motor yacht. She is a semi displacement motor yacht built to accommodate a crew of up to 8 in comfort across 3 cabins with additional crew quarters aft. Boasting a proper ships bridge with 'Captains table' and spacious galley elevated above the main saloon. A proper little ship with a high level inventory such as:

• Single piece FRP, vinylester infused hull, engineered sandwich construction
• Awl Grip Flag Blue two-pack painted finish to topsides.
• Burmese teak laid decks to finish foredeck, side decks, aft deck, bathing platform and flybridge.
• Glazing all of tinted, laminated 3M Hurricane Shield glass
• Proprietary Velocijet Strut Keel(c)
• 2x Caterpillar C-12 marine diesel engine, 705hp @ 2300rpm
• 2x Northern Lights M844K generator, 220VAC, 16kW, 1800RPM, 60Hz
• Naiad Marine Systems Multisea II stabiliser system
• Sidepower bow and stern thrusters
• Xantrex Freedom SW2524 Charger/Invertor 20-32VDC - 230VAC, 2500watt(2014)
• Phase Three PTVAC/115VAC - 24VDC
• Sea Recovery Aqua Whisper reverse osmosis water maker
• Racor drinking water filtration system, water filtered between main freshwater tank and drinking water tank.
• Blackwater holding tank
• Greywater sump tanks
• Miele Induction hob. 220VAC, with four induction plates and pan clamps
• Miele electric oven and grill. 220VAC
• Miele Ecosensor TurboThermic Dishwasher. 220VAC
• Raymarine chart plotter and radar systems, 3 displays in total
• Raymarine ST60 instrumentation
• Raymarine Autopilot
• Central Vacuum System on board

• Single piece FRP, vinylester infused hull.
• Engineered sandwich construction.
• Kevlar fabric reinforced GRP laminate
• Sandwich FRP construction of structural members including stringers and bulkheads.
• Proprietary Velocijet Strut Keel(c) - twin keels
• Simulated moulded planking style finish to topsides
• Inset portlights in forward topsides port and starboard.
• Moulded rubbing strake around aft quarter with stainless steel coping.
• Awl Grip Flag Blue two-pack painted finish to topsides.
• Underwater hull finished in antifouling, applied spring 2021.

• FRP moulded deck, wheelhouse superstructure and flybridge
• FRP bulwarks with solid teak capping rail
• Burmese teak laid decks to finish foredeck, side decks, aft deck, bathing platform and flybridge.
• FRP moulded 'Targa Arch' on flybridge
• Two-pack painted finish to mouldings.
• Glazing all of tinted, laminated 3M Hurricane Shield glass

• Proprietary Velocijet Strut Keel(c)
• Engineered tunnels accelerate and shape the propeller thrust for enhanced performance at all speeds
• Twin stainless steel rudders.

Generator 1 (Port)

• Northern Lights M844K generator
• 220VAC, 16kW, 1800RPM, 60Hz
• Lugger 26hp, 4 cylinder, naturally aspirated diesel engine
• Control panel in the wheelhouse with gauges for water temperature, oil pressure, voltage and running hours.

Generator 2 (Starboard)

• Northern Lights M844K generator
• 220VAC, 16kW, 1800RPM, 60Hz
• Lugger 26hp, 4 cylinder, naturally aspirated diesel engine
• Control panel in wheelhouse with gauges for water temperature, oil pressure, voltage and running hours.

• All bilge pumps with manual and auto switching
• Forward bilge pump
• Main bilge pump
• Engine room bilge pump
• Lazarette bilge pump

• Pressurised hot and cold water system.
• Racor drinking water filtration system, water filtered between main freshwater tank and drinking water tank.
• Mixer faucet in galley
• Filtered drinking water faucet in galley
• Mixer faucets in port and starboard heads
• Showers in port and starboard heads
• Mixer faucet in crew quarters, pulling out to be used as shower.
• Deck shower on port side deck

• Sea Recovery Aqua Whisper reverse osmosis system
• Currently pickled to preserve membrane

• Greywater drains to sump tanks port, starboard and aft
• Tanks pumped overboard by electric pumps operated manually or automatically

Fuel

• Twin diesel tanks
• Stainless steel construction
• Approximate total capacity 5,300ltrs (1400gal)

Fresh Water

• Single freshwater tank
• Stainless steel construction
• Approximate total capacity 835ltrs (220gal)

Drinking Water Tank

• Single stainless steel tank
• Approximate tank capacity 250ltr
• Tank filled from freshwater tank via Racor drinking water filtration system.

Holding Tank

• Single holding tank
• Emptied via deck suction or macerator pump
• Approximate capacity 378ltrs (100gal)

Grey Water Tanks

• Three sump tanks
• GRP construction
• Discharged overboard by electric pump, switched manually or automatically

• Tank Tender system
• Manually pumped pneumatic type with selector switch and single gauge in wheelhouse
• Tank watch system for holding tank
• Sight gauges for both fuel tanks in engine space

Safety Equipment

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

• Plotter - Raymarine eS128 display, standalone unit.
• Radar - Raymarine 4kw Digital HD open array scanner
• GPS - Raymarine Raystar 125 active GPS antenna

• Depth - Raymarine ST60
• Speed/Log - Raymarine ST60
• Wind - Raymarine ST60
• Plotter/Radar/Fishfinder - 2x Raymarine E120 displays
• Fish Finder Module - Raymarine DSM30 with in-hull transducer

• Lower Helm DSCVHF - Icom IC-M602 DSC VHF with command mic
• Upper Helm DSCVHF - Icom IC-M602 DSC VHF
• AIS - Raymarine AIS650 class B transceiver
• AIS Antenna Splitter - Raymarine AIS100 splitter
• Intercom system for onboard communication, handsets at lower and upper helm station and engine room

• 24VDC onboard power systems
• 12VDC onboard power system for instrumentation
• 230VAC shore power / generator supplied system

• Duplex shore power connections, port and starboard aft and forward
• Extension lead to connect to shore supply
• Hard wired factory installed system
• RCD protected system

• Domestic Bank #1 - 2x 12VDC, 240Ah AGM
• Domestic Bank #2 - 2x 12VDC, 240Ah AGM
• Port Engine Bank - 2x 12VDC, 200Ah lead acid
• Starboard Engine Bank - 2x 12VDC, 200Ah lead acid
• Generator 1 Bank - 1x 12VDC, 225Ah, AGM
• Generator 2 Bank - 1x 12VDC, 225Ah, AGM

• Single engine driven alternator on each engine
• 24VDC, 60amp output

• Phase Three PTVAC/115VAC - 24VDC
• Xantrex Freedom SW2524 Charger/Inverter 220VAC - 12-32VDC, 65amp(2014)
• Alphatronix ICiVDC - 12VDC

• Xantrex Freedom SW2524 Charger/Invertor 20-32VDC - 230VAC, 2500watt(2014)

• Pantograph arm wipers on three forward facing wheelhouse windows
• Variable speed wipers with independent controllers

• Tinned wiring used throughout
• Volt and Ammeters to monitor all battery banks in wheelhouse
• Extractor fan in galley
• Remote control searchlight with control panels at both helm stations
• Kahlenberg dual trumpet, stainless steel air horns.

Galley

• Galley Hob - Miele Induction hob. 220VAC, with four induction plates and pan clamps
• Galley Oven - Miele electric oven and grill. 220VAC
• Fridge - Drawer type built in fridge with two drawers
• Fridge/Freezer - Front loading type fridge with compact freezer unit beneath
• Coolbox - Double pull out drawer coolbox
• Wine Cooler - located at forward end of salon
• Double stainless steel sink
• Toaster - 220VAC
• Kettle - 220VAC
• Dishwasher - Miele Ecosensor TurboThermic. 220VAC
• Trash compactor - In Sink Erator 220VAC

Heads

• Toilets - 2x Sealand electric Vacuum flushing toilets, freshwater flushing
• Hot and cold water faucet x2
• Shower x2
• Wash hand basin x2

Vacuum System

• Nutone built in centralised vacuum system
• Suction connection points in all cabins, flybridge and saloon
• Single hose for connection with attachments

Air Conditioning / Heating

• Air conditioning system with outlets in all cabins, wheelhouse and saloon
• Air conditioning units can run reverse cycle to act as heating on same system
• Thermostatic cabin controllers.

Lighting

• Overhead lighting throughout interior
• Downlighters above worktops in galley
• Reading lights over bunks in cabins
• Lighting over side decks and aft cockpit
• Overhead lighting on arch over flybridge
• Red lighting in wheelhouse at helm station and on flybridge
• Low level courtesy lighting on steps and flybridge

Entertainment

• Phillips flatscreen TV built into forward cabin
• Sony DVD player in forward cabin
• Phillips flatscreen TV built into port cabin
• Phillips flatscreen TV built into master cabin
• Sony DVD player in master cabin
• Sony CD/Radio player in master cabin
• Sony CD/Radio/Bluetooth/USB head unit in wheelhouse
• Sony 10 CD changer in wheelhouse
• Panasonic flatscreen TV in saloon
• Sony DVD player in saloon
• Phillips flatscreen TV built into crew quarters

Accommodation

• Master cabin forward with 4 berths and en-suite access to heads
• Port bunk cabin
• Double cabin with ensuite heads
• Heads
• Wheelhouse with elevated dinette seating
• Galley
• Main saloon

• Schwepper Germany interior hardware
• Joinery finished in hardwood veneer and solid timber trims
• All furniture finished in gloss varnish
• Drawer carcasses of Douglas Fir, constructed with dovetail joints
• Hanging lockers lined with Cedar cladding
• Marble countertops in heads
• Marble worktop in galley
• Sole board of composite sandwich construction with teak and holly veneer finish
• White leather upholstery for saloon and dinette seating
• Varnished teak sole gratings in bilge space

Access to the forward accommodation is via a companionway staircase from the wheelhouse.

Forward Cabin

• Double bunk located centrally with steps to access bunk on port and starboard sides
• Storage drawers below bunk
• Sideboard counter tops outboard of bunk port and starboard
• Storage lockers above bunks, outboard port and starboard forward with countertop above.
• Storage lockers outboard port and starboard.
• Pilot berths outboard port and starboard, above countertop and storage lockers.
• TV and DVD player built in at aft end of cabin
• 'Jack'n'Jill' en-suite access to heads.

Forward Heads

• Located to starboard.
• Accessed from lower passageway or forward cabin.
• Forward facing electric toilet located aft, inboard
• Shower stall with dedicated shower head outboard aft.
• Marble countertop with inset wash hand basin outboard forward
• Locker outboard of countertop and shower stall.
• Selection of drawers and lockers beneath countertop

Port Cabin

• Bunk cabin with two single bunks outboard, forward.
• Hanging locker and storage shelves inboard of bunks forward.
• Large dresser unit /writing desk aft with built-in folding seat.
• Drawers beneath unit inboard and outboard
• Locker outboard of dresser top.
• Overhead lockers and built-in TV overhead.

Master Cabin

• Located at aft end of lower accommodation space
• Centrally located at aft end of cabin.
• Selection of storage drawers beneath bunk
• Countertop outboard of bunk to starboard in L-shape running forward.
• Selection of lockers outboard of countertop above with drawers and lockers beneath.
• Hanging lockers forward of countertop to starboard.
• Bunkside counter top outboard to port with drawer and locker beneath
• En-suite heads to port

En-Suite Heads

• Forward facing electric toilet mounted inboard aft.
• Marble countertop running the length of the compartment outboard with inset wash hand basin.
• Vanity lockers outboard of countertop with storage locker beneath
• Shower stall forward with dedicated shower fitting

Wheelhouse

• Elevated above saloon level.
• Centrally located helm station forward with dedicated Stidd helm seat.
• Engine controls, displays and navigation instruments forward and outboard to starboard
• Deck saloon seating to port of helm.
• J-shaped wrap around seating outboard
• Fixed height table on adjustable position base inboard.
• Companionway steps to access flybridge after to port.
• Access to port and starboard side decks via doors
• Galley after to starboard

Galley

• U-shaped galley to starboard side of wheelhouse
• Thwartships worktop forward with inset stainless steel sinks inboard
• Galley hob inset to worktop outboard centrally
• Thwartships galley worktop aft.
• Built in dishwasher below worktop forward with drawers inboard
• Built in oven below galley hob.
• Storage drawers, fridge and coolbox beneath worktop aft
• Selection of lockers in overhead units running around galley.

Saloon

• Located at aft end of deckhouse
• Large open plan saloon.
• L-shaped settee to starboard with adjustable height table.
• Bench settee to port.
• Countertop with storage locker beneath aft of port settee
• Countertop extending forward of port settee
• Lockers beneath countertop with fridge/freezer unit and built in wine cooler.
• Glass storage locker above countertop forward.
• Countertop running forward outboard starboard settee.
• Storage unit running across front of saloon with built in TV, drinks locker and a selection of storage drawers and lockers
• All seat bases lift to provide storage beneath
• Double opening doors to access aft cockpit.

Crews Quarters

• Accessed from hatch in cockpit sole
• Single berths outboard port and starboard
• Moulded GRP countertop centrally with hatch to access steering compartment aft
• Dedicated heads compartment to starboard
• Aft facing electric marine toilet outboard
• Marble topped counter inboard forward with inset wash hand basin, mixer tap and showerhead.
• Access to engine space through central door forward

Dinghy Crane

• Hydraulic crane with telescopic boom
• Hydraulic hoist

Canvas Work

• Flybridge console cover
• Flybridge table cover
• Flybridge seating cover
• Flybridge helm seat covers
• Flybridge Bimini cover on stainless steel frame
• Fitted cushions for flybridge and cockpit seating

Anchoring & Mooring

• Bower Anchor - 45KG Ultra Anchor, stainless steel on chain rode
• Secondary Anchor - Bruce Anchor, stainless steel on chain rode
• Anchor Windlass - Maxwell 2200 electric windlass, double chain gypsys. Foot button controls on foredeck
• Selection of mooring warps
• Selection of fenders

Deck Layout

• Elevated foredeck.
• Stainless steel grabrail running around deck edge and extending forward around bowsprit.
• Short bowsprit extending forward of stem-head with double bow rollers built in.
• Both anchors self stowing in rollers
• Anchor windlass mounted immediately aft of bowsprit
• Deck lockers outboard of windlass port and starboard.
• Panama type fairleads through shallow bulwarks forward.
• Stainless steel deck mounted mooring cleats
• GRP moulded breakwater type bulwark forward of wheelhouse with bi-fold gate to access foredeck
• Moulded seat units outboard of gateway port and starboard.
• Bridge deck running around forward end of wheelhouse out to side decks.
• Stainless steel grabrails running around forward end of wheelhouse and down side decks
• Doors to access wheelhouse port and starboard
• Panama fairleads midships, forward and aft with built in cleats
• Moulded bulwark outboard of side deck with stainless steel stanchions supporting teak grabrail running around aft section of side deck and across transom.
• Aft cockpit running full width of transom
• Stairs to access flybridge to port side of cockpit
• Moulded seating unit to starboard.
• Access to crews quarters and engine space through cockpit sole hatch.
• Access gates in bulwarks port and starboard.
• Transom gates to access bathing platform on port and starboard quarters
• Panama fairleads port and starboard aft with built in cleats
• Bathing platform aft with removable stainless steel grabrails.
• Access to steering space beneath bathing platform

Flybridge Layout

• Accessed from companionway into wheelhouse or stairs from cockpit.
• Helm station centrally located forward with Stidd swivelling seats for helmsman and navigator
• Engine control panels and nav equipment mounted forward of helm.
• L-shaped seating after to starboard with adjustable height table
• Forward facing seating unit to port
• Countertop storage unit to port, fridge below countertop forward
• Lifting panel in countertop aft with inset stainless steel sink and electric BBQ
• Dinghy crane after to starboard with RIB stowing on deck chocks aft

Safety Equipment

• EPIRB - Ocean Signal ARH100, Class 2 EPIRB
• Liferaft - 2x 8 person, Ocean Safety Charter ISO rafts.
• Fireboy automatic fire extinguisher system in engine space.
• Horseshoe lifebuoy with light
• Throwing line

Engine Space

• Self contained engine space with watertight access door.
• 3" thick lead/rockwool/foam sound insulation
• DryPoint proprietary demister air intake system
• Engine space extraction fans - 220VAC

Engines & Gearboxes

Port Engine & Gearbox

• Caterpillar C-12 marine diesel engine
• 705hp @ 2300rpm
• In-line 6 cylinder, turbocharged, after cooled, indirectly cooled.
• ZF Marine hydraulic reversing marine gearbox
• Caterpillar Marine Power Display LCD dash panels providing engine data, displays in wheelhouse and on flybridge
• Electronic Morse controls with stations on bridge, flybridge and port side deck

Starboard Engine & Gearbox

• Caterpillar C-12 marine diesel engine
• 705hp @ 2300rpm
• In-line 6 cylinder, turbocharged, after cooled, indirectly cooled.
• ZF Marine hydraulic reversing marine gearbox
• Caterpillar Marine Power Display LCD dash panels providing engine data, displays in wheelhouse and on flybridge
• Electronic Morse controls with stations on bridge, flybridge and port side deck
• New ECB control board fitted 2021

• Cruising speed under engine 8kts
• Maximum speed under engine 16kts

• Stern gear configuration matches port and starboard
• Stainless steel propeller shaft
• Aquadrive shaft coupling system
• Hydraulic steering system with dual control stations
• Rudder position indicator gauge at both helm stations

• Raymarine hydraulic pilot system
• Raymarine ST6001 control heads at lower and upper helm stations
• Raymarine S3G course computer
• Raymarine hydraulic drive system
