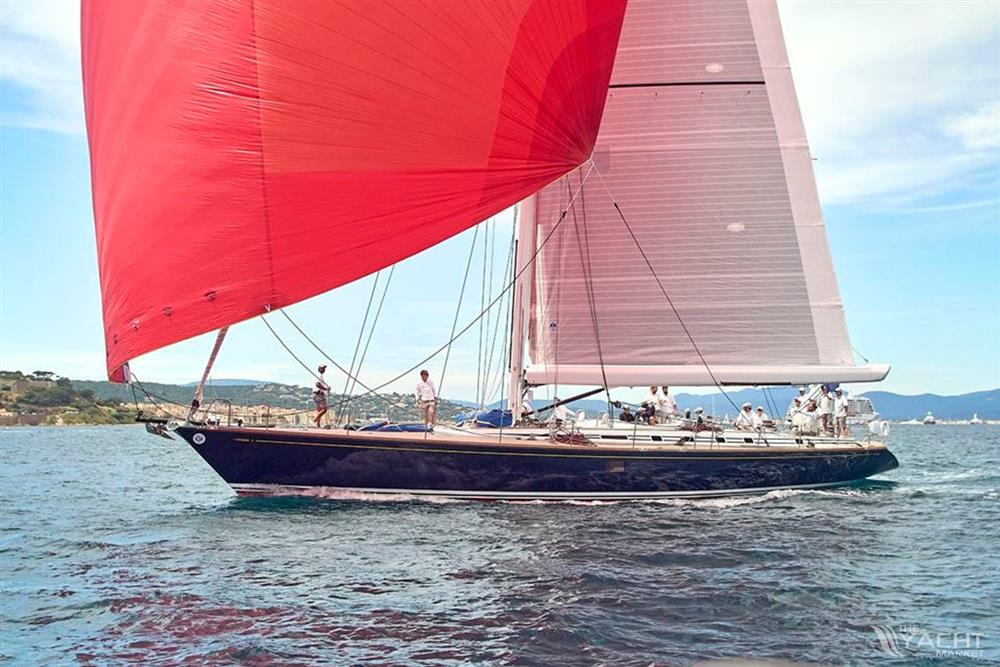

NAUTOR SWAN Nautor Swan 77 in vendita (2002) in Valencia, Valenzia, Spagna

INVICTUS is Swan 77-008, one of the later examples. She had a particularly high specification and many custom details inside and out. The interior has custom woodwork and a unique layout. On deck she has a carbon mast, carbon boom with in-boom furling, hydraulic furling headsail, and hydraulic winches, and she has the shallow draft keel option. Hugely refitted in 2024 and with further upgrades since she is very special and in very good order.

Construction

RCD Status: We understand that the yacht was built to and conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean”.

Hull, Deck & Superstructure Construction:

• The hull is of single skin construction using glass-aramid (Kevlar) hybrid fibre reinforced polyester laminate with a high proportion of uni-directional fibres, giving excellent strength and fatigue properties.
• The deck is PVC foam cored sandwich construction with single skin areas or hard core inserts under fittings.
• Teak deck, all new 2024 with 16mm teak – by Teak Decking Solutions.
• Teak toe rail with stainless steel fairleads and drains.
• Structural bulkheads are mainly foam-cored plywood laminated to the gull and deck.
• Entire hull and coachroof area faired, primed and newly painted 2024.
• Topsides finished in Awlgrip Flag Blue and Awlgrip Snow White.
• Cove stripe on upper part of hull finished in gold.
• Coaming and cabin top finished in NGA 2000 white gelcoat with two dark blue coaming stripes.
• Waterline stripes in white and red antifouling.
• Antifouling last done in November 2024.
• Hydraulically operated swim platform in the transom with stairs and swim ladder.
• Extended transom with two large hatches to access aft lazarette.
• Tinted Perspex hull windows in main saloon flush with hull on outside.
• All deck hatches replaced 2024 with Lewmar flush hatches.
• Tender chocks for the bow area – to stow the tender.
• Displacement loaded: 56,000kg / 123,500lb.

Keel & Rudder:

• Reduced draft keel designed by German Frers, 3.0m rather than standard 3.4 meters.
• The ballast keel is of bulb type and is a lead casting with antimony.
• Cast in keel bolts are high tensile stainless steel.
• The rudder is of foam filled GRP with high-tensile stainless-steel stock, supported by two self-aligning roller bearings.
• Rudder depth reduced by 20 cm to account for shallow draft keel.

Machinery

Engine & Gearboxes:

• Perkins Sabre M22STi, six-cylinder turbo-charged and intercooled marine diesel engine, 155kW (210hp) at 2500 rpm.
• Hurth HSW 630 A gearbox, 2.63:1 reduction.
• Propeller shaft of high-tensile, steel.
• Wet exhaust system.

Maintenance & Performance:

• Engine hours – approx. 9,060 total, as of September 2025.

• Engine last serviced: September 2025.
• Cruising speed – approx. 8 knots.
• Maximum speed – approx. 10 knots.
• In November 2024, the engine was out of the yacht and given a full rebuild to “zero hours” by Perkins Worldwide agent in Portugal (with a 12-month warranty from Nov 2024).
• Cylinder head refaced, block rectified, new injectors, pistons, cylinder linings, intercooler, turbo, alternator, start motor and all ancillaries.
• New blowers (in/out) installed in engine room – September 2025.

Propulsion & Steering:

• Three-blade feathering Max Prop.
• Cable steering gear.
• Aluminium steering quadrant bolted to rudderstock.
• 70” (1.8m) diameter recessed destroyer type helm wheel, with elk-hide cover.
• Emergency tiller system.
• Max Power bow thruster RR450 with control at helm.
• Bow thruster serviced Oct 2024.

Other Mechanical Equipment:

• Bosch Rexroth 11 Function Hydraulic System.
• 2 x power packs, plus a PTO pump on the generator, for:
  1. 2 x primary winches.
  2. 2 x secondary winches.
  3. 2 x halyard winches.
  4. 1 x mainsheet winch.
  5. 1 x windlass.
  6. 1 x Reckmann headsail roller furler.
  7. 1 x Leisurefurl in-boom furling system with Rondal captive main halyard winch.
  8. 1 x Max Power bow thruster.

Electrical Systems

Voltage Systems:

• 24v DC insulated return system.
• AC system: 50A 230v 50/60Hz single phase fed from shore power, generator or inverters.
• Victron Mass 24/4000 Ultra sine wave inverter.
• Victron Mass 24/1500 inverter.

Battery Banks:

• 4 x 12v-255Ah gel cell units service battery bank, 24v 1020 Ah – new 2024.
• 4 x 12v-115Ah gel cell units radio battery bank, 24v 460 Ah.
• 24v 135 Ah gel cell engine start battery bank.
• 12v 90 Ah gel cell generator start battery bank.
• Battery boxes ventilated to the mast.

Battery Chargers:

• 2 x Mastervolt Mass 24/75-C battery chargers (for service bank) – new 2024.
• Victron battery charger for gen set – new 2024.
• Mastervolt Mass 24/50 220v 50A battery charger for radio bank.

Generator:

• Northern Lights PX 320 K2 generator, given a full overhaul in 2024, including – injector pump and cylinder head removed for rectification, all valves replaced, start motor replaced, start system rewired, low pressure pump replaced, cylinder head refaced and all gaskets replaced.
• Generator hours – approx. 5,572 as of September 2025.
• Generator last serviced:  September 2025.

• PTO on generator for the hydraulics.

Shore Power:

• Shore power inlet rewired – 2024.
• 2 x Victron 7000 isolation transformers – new 2024.
• Shore power inlet for 230 V 50 A 50 Hz through a step up / step down isolation transformer.
• Shore power inlet for 115 V 50 A 60 Hz through a transformer.
• Shore power inlet for 230 V 50 A 50 Hz through a step up / step down isolation transformer for Air conditioning.
• Shore power cable and plugs.
• 60 Hz protection system (protects 50 Hz only consumers when plugged into a 60 Hz power source).

Plumbing Systems

Fresh Water & Water Heating System:

• 2 x CEM L-Inoc / 20x pumps.
• 66-litre water heater tank, heated via main engine heater exchanger / 220v.
• Hot and cold showers at swim platform and in aft cockpit.
• Seawater pump distributing water to deck wash and galley.

Watermaker:

• Aqua Whisper Pro 1400 watermaker – new 2024.

Bilge Pumps:

• 2 x electric submersible bilge pumps (main bilge and bow locker).
• 2 x Whale Titan manual bilge pumps.
• Whale manual bilge pump operated from aft cockpit.

Tankage

Fuel:

• Total capacity 1,740 litres in 2 stainless steel tanks.

Fresh Water:

• 1,370 litres total capacity in 2 stainless steel tanks.

Grey/Blackwater Holding Tanks:

• 2 x blackwater tanks, each of 167 litres. Emptied by electric pumps overboard or via deck fittings.
• Level indicators for black water tanks in heads and at monitoring panel.
• Galley sinks drain through seacock.
• Washbasins and showers drain to sump tanks (emptied by electric pumps).
• Manual backup pumps for sump tanks.

Navigation Equipment

• A&T instruments, processors, displays and sensors – all new 2024 (includes, autopilot, depth, log, wind instruments).
• AG Neovo Timezero PC (incl. Team Viewer, Google Chrome, Microsoft Edge) – 2024.
• Furuno TzTouch3 chart plotter at helm – new 2024.
• 2 x A&T multi display screens at helm.
• A&T autopilot, controls at helm on starboard side – unit fully serviced Oct 2024.
• Furuno NXT radar.
• AIS 500.
• Furuno GP 39 GPS.
• Furuno Gyro compass.
• Ritchie pedestal compass.
• 2 x B&G VHF H100 wired handset (one at chart table + one with extra speaker at the helm on port side).
• Backup wired handset ICOM VHF IC-M94D - marine transceiver with DSC and AIS receiver.
• 5G Peplink and Starlink Wi-Fi system – new 2024.

Domestic Equipment

Galley:

• Bosch induction 2-burner hob – new 2024.
• 4-burner Force 10 gas hob and oven.
• Refrigeration system fully overhauled – October 2024 in Portugal.
• Iceberg 220V refrigeration system for fridge and 2 freezers, seawater cooled.
• Iceberg engine driven fridge system for fridge and 2 freezers, seawater cooled.
• Waeco Coolmatic drinks fridge installed in custom bar area.
• Raritan Icemaker installed in custom bar area.
• Miele dishwasher.
• Miele microwave.
• Sage Barista Touch coffee machine.
• Insinkerator macerator system.
• Bosch clothes washing machine and Bosch dryer – in crew area forward.

Heads/Showers:

• 4 x Dometic Vacuflush vacuum toilets using freshwater for flushing.
• Jabsco manual toilet in forward cabin using seawater for flushing.

Heating & Ventilation:

• Dometic air conditioning compressors and units – new 2024.
• 5 x Dometic DTU 10-410 A units (heating, cooling and dehumidifier).
• Natural ventilation in all cabins.
• Exhaust ventilators in all heads and in galley.

Entertainment:

• Samsung Projector in saloon and speakers in all cabins – new 2024.
• 32” Samsung TV in owner´s cabin.
• Apple TV, installed on saloon projector and on TV in owner´s cabin.
• 2 x Apple homepods in saloon.
• Apple homepods in each guest cabin.
• Fusion radio.
• Fusion speakers in cockpit.

Lighting:

• Reading lights in all cabins.
• Automatic lights in lockers.
• LED overhead lighting.
• Boom light.
• Deck floodlight.

Accommodation

Summary of Accommodation:

• Sleeps 12 in total.
• 4 x ensuite guest cabins, with total 9 berths (incl. 2 x Pullman).
• 1 x ensuite crew cabin, with 3 berths.
• Teak interior with hand rubbed satin finish.
• Corners and edges rounded off.
• All interior upholstery replaced 2024.
• Saloon, galley and navigation station area lockers and drawers made with highlight panelled doors.
• Teak and holly cabin sole.
• White vinyl over panelling headliner.
• Heads equipped with mirrors, towel, soap and paper holders, rubbish bin and lockers.

Description of layout from forwards:

Forward Cabin (Crew Quarters):

• Generous crew space finished with the same high level of decor as the remainder of the yacht.
• Fixed berth to starboard with storage underneath.
• Pullman bunk to port with settee underneath which converts to third bunk.
• Chain locker access under hanging locker.
• Storage lockers outboard of Pullman berth.
• Ensuite head with shower, sink, mirrors, storage lockers and manual toilet.
• Bosch washing machine.
• Miele dryer.
• Automatic lights in lockers.
• Air conditioning.

Starboard Guest Cabin:

• Located aft of the forward cabin.
• Single berth with drawers below.
• Folding Pullman berth above.
• Hanging locker at aft bulkhead with drawers below.
• Storage lockers outboard of Pullman berth.
• Ensuite head with shower, sink, mirror, storage lockers and VacuFlush toilet.
• Air conditioning.
• Great for the children or grandchildren.

Port Guest Cabin:

• Large and comfortable VIP guest cabin with ensuite head and shower.
• Located aft of the forward cabin.
• Double berth with drawers below.
• Folding Pullman berth above.
• Hanging locker on centreline bulkhead with drawers below.
• Vanity with countertop and storage below.
• Storage lockers outboard of Pullman berth.
• Ensuite head with shower, sink, mirror, storage lockers and VacuFlush toilet.
• Air conditioning.

Saloon:

• The saloon is remarkably spacious for the size of yacht, utilising the full beam and providing two totally separate seating areas.
• U-shaped settee to port for 7 persons, with a coffee table and two Nautor seats at centreline.
• Storage lockers outboard fore and aft of hull windows.
• U-shaped dining area to starboard (which may seat 8 persons).
• Storage lockers outboard fore and aft of hull windows.
• Custom bar area at forward bulkhead with bar, glass storage, drinks fridge and icemaker.
• Raised ceiling with indirect lighting.
• 2 x air conditioning units.

Galley:

• Located aft of the saloon on the port side.
• Lots of counter space, lockers and drawers.
• All work surfaces in galley and sliding doors behind stove in Corian Magna Sahara.
• Gimbaled 4-burner Force 10 stove and oven.
• Bosch 2-burner induction hob.
• Miele Microwave oven.
• Overhead Alpes Inox extractor fan with lighting.
• Double stainless steel sinks inboard.
• Miele dishwasher.
• Rubbish macerator in sink.
• 2 x front loading refrigerators.
• Top loading freezer.
• Freezer under galley floor.
• Drinks fridge in saloon custom bar.

Navigation Station:

• Open navigation station located aft of saloon on the starboard side.
• Oversize desk to allow the opening of paper charts.
• Forward facing double navigation seat.
• Lockers, drawers and in-desk storage.
• Chart storage in overhead chart locker.

Captain/Guest Cabin:

• Located aft of the navigation station and to starboard side / outboard of the engine room.
• Good off-watch cabin located where the least amount of boat motion occurs.
• Fixed upper and lower berths with drawers below.
• Hanging locker aft with drawers below.
• Air conditioning drawn from owner’s cabin.
• Ensuite head (doubles as day head) with shower, sink, mirror, storage and VacuFlush toilet.

Hallway:

• Located on the starboard side, running aft.
• Accesses the owner's cabin aft creating lots of privacy from the remainder of the yacht.
• Electrical panel.
• Door to access engine room.
• Hanging locker aft, vented with drain in floor and storage shelves for safety equipment.

Engine Space:

• Access via door in hallway and under companionway steps.
• Engine room located at centreline beneath the forward cockpit and lined with full sound insulation.
• Generator space under floor in main saloon lined with full sound insulation (genset also in sound box).

Owner´s Cabin:

• Located aft.
• Exceptional for a 77ft yacht.
• It provides great privacy away from other guests and crew, with a large comfortable bed, ensuite head and stall shower. It is hard to imagine a better-appointed cabin for the owners.
• Centreline queen sized berth with drawers below.
• Settee to port.
• Hanging lockers port and starboard with drawers below.
• Large vanity mirror with lighting and shelf with storage below.
• Work desk to starboard.
• Ensuite head with stall shower, sink, mirror, storage lockers and VacuFlush toilet.
• Air conditioning.

Deck Equipment

Rig:

• Rig dimensions: I: 30.0m ; J: 9.1m ; P: 27.4m ; E: 9.1m.
• Offshore Spars carbon fibre mast with 4 sets of spreaders painted white.
• Marten Spars Leisure furl carbon fibre, hydraulic furling boom, painted white.
• Reckmann RF-90 hydraulic headsail roller furling system.
• Main furling controlled from helm with joystick.
• Genoa furling may be controlled from the helm.
• Navtec System 50, controls: backstay, inner forestay, baby-stay, genoa halyard, vang (boom up and down).
• Oversized Navtec push/pull boom vang.
• Gennaker bowsprit.

• The mast is stepped through the deck onto a galvanized steel step.
• Tie rods from mast collar to step.
• Full service on mainsheet captive winch – September 2025.

Note: The following work was done by Rigging Projects, Dec 2024 – Jan 2025 in Portugal:

• Mast and boom were NDT tested, surveyed, repaired as required and repainted.
• New stainless steel rod rigging shrouds, backstay and forestay.
• All new running rigging (Duratec / The Rig Shop).
• Stainless steel rod Nitronic inner forestay and tensioner – new April 2024.

Winches:

• INVICTUS has an upgraded Lewmar Winch Package delivered from Nautor at build, including:
• 2 x Lewmar 111 hydraulic 3 speed stainless steel self-tailing primary winches placed further aft than standard.
• 2 x Lewmar 77 hydraulic 3-speed chrome self-tailing secondary winches positioned on aft coaming.
• 1 x Lewmar 66 hydraulic 3-speed chrome mainsheet winch.
• 1 x Lewmar 48 1-speed chrome traveller control winch.
• 2 x Lewmar 66 hydraulic 2-speed chrome genoa halyard winches.
• 2 x Lewmar 66 2-speed chrome spinnaker halyard winches
• 1 x Rondal 4000/550 hydraulic captive main halyard winch.

Sails:

• North Sails mainsail, 3Di Ocean 700, 29,400 Dpi, in-boom furling – 2024.
• North Sails genoa, 3Di Ocean 700, 23,800 Dpi, furling – 2024.
• North Sails A2 asymmetric, Norlan NY90 0.75 oz – 2024.
• North Sails Helix furling gennaker – 2024.
• Quantum staysail – May 2025.
• North Sails storm sail.
• Spare old second-hand mainsail and genoa, by North Sails.
• Sail areas: 329.4m2 upwind; 491m2 downwind.

General:

• Stem head fitting with double rollers and chain locating roller on starboard side.
• Bowsprit for gennaker designed to fit port stem head slot (Nautor).
• Stainless steel bow pulpit with teak seat and gate.
• Stainless steel stern pushpit with gate.
• Stainless steel stanchions with gates port and starboard.
• Side boarding ladder.
• Stern swim ladder on platform (extended / improved 2024).
• Post for Starlink at stern.
• Passerelle, with new bag (2025).

Anchoring & Mooring Equipment:

• Lewmar hydraulic anchor windlass, with up / down controls at helm.
• 65kg stainless steel Lewmar Delta anchor.
• 140m of galvanized steel chain.
• Mooring lines new 2024.
• 10 x inflatable fenders with “socks”.
• Carbogate 340, lightweight carbon gangway with handrail.

Covers, Canvas & Cushions:

• Sunbrella sun awnings.
• Sunbrella boom cover.
• Sunbrella sprayhood.
• Sunbrella cover for pedestal – new 2025.
• Blue cover for the tender.
• Cockpit upholstery / cushions.
• Sundeck cushions.

Tender & Outboard:

• Lammina 13 AL tender – 2024.
• 40 hp Yamaha outboard – 2024.

Safety Equipment

• 2 x 6 person Ocean Solas B life rafts.
• Ocean Signal EPIRB & SART.
• 1X GMDSS VHF Marine Transceiver ICOM IC-GM1600E.
• 12 x Spinlock deck-vests all with integrated Ocean Signal MOB1 beacons.
• Jonbuoy Mk6 recovery module.
• 2 x lifebuoys.
• MSOS distant ocean medical kit.

Fire-Fighting Equipment:

• 2 x powder fire extinguishers.
• 2 x CO2 extinguishers.
• 2 x fire blankets.
• 3 x fire alarms.
• Fire extinguishers serviced April 2025.
• Generator room FM200 HFC Easyfire 1kg, new April 2025.

Works Done in Vigo, Spring 2025

• General interior and bilge deep cleaning.
• Starlink post shortened.
• New rod Nitronic 12.7 mm inner forestay.
• New inner forestay tensioner.
• 2 x new 24v macerator Jabsco self-priming waste pump/run dry protection.
• 6 x mast base jammers replaced.
• 2 x new spinnaker blocks.
• All winches serviced.
• 6 x winches re-chromed.
• The whole interior had touch ups sanded with extreme care and varnished with satin finish.
• New Furuno TZTouch3 chart plotter at helm.
• Rudder was removed, area cleaned, checked, greased and new seals assembled, and rudder assembled.
• Transom platform fittings reinforced.
• 4 x new exterior sofas covers (Valmex T Light).
• New pedestal cover (Sunbrella).
• Life rafts annual service.
• Fire extinguishers annual service.
• New fire extinguishing system in generator room.
• Anchor windlass serviced.

Other Upgrades in 2025:

• New frame for plotter at pedestal – June 2025.
• New in/out blowers to engine room, installed July 2025.
• Mast manifold hydraulic unit serviced August 2025.
• New LED lights at galley and saloon September 2025.
• Main captive winch fully overhauled incl. the PLC control box, September 2025.

Extra High Specification From Build
