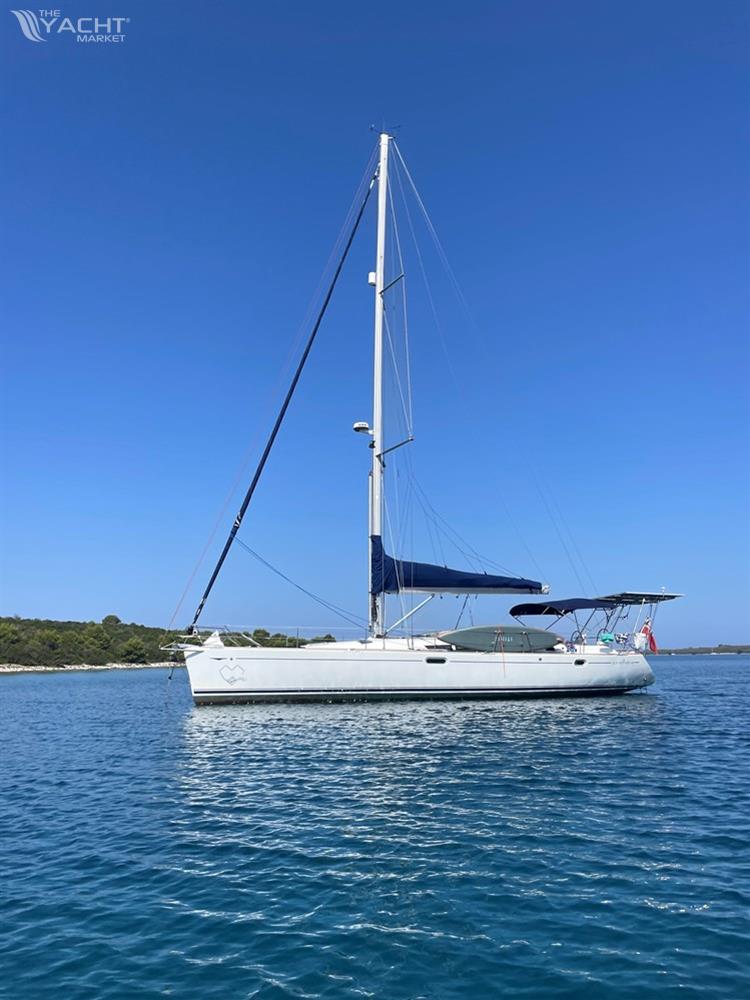

Jeanneau Sun Odyssey 49 - 3 cabin layout. An excellent example of a sailing yacht that is well cared for, benefiting from a complete refit in 2020-21 to make her suitable for blue water cruising (ARC Atlantic Crossing compliant) and offgrid liveaboard life.
Rig
Sloop
SLOOP RIG
2021 Complete standing rigging (Hemisphere Rigging Plymouth)
Classic alloy finish aluminium mast with double swept back spreaders
Spinnaker track mounted forward and folding mast steps
Discontinuous Dyform stainless standing rigging
Slab mainsail reefing with stackpack and lazy-jacks
Furling genoa - Harken type 2
2 Selden blocks for spin sheets
New boom gooseneck - 2021
New vang bracket - 2021
Custom Bow sprit (inspired by X Yachts design)
Asymmetric spinnaker pole and gear (original)
SAILS
Mainsail with three reefs - DP Vectron 100 Sanders sails 2021
108% Jib - DP Vectron 100 Sanders sails 2021
Asymmetrical (Sock)
Code 0 (Facnor Furler) - Contender Stormlite - Sanders Sails 2021
Storm Jib - Hank on - 2004
WINCHES
2 Lewmar ST64 - Genoa
2 Lewmar ST44 - Halyard winches on coach roof (1 is electric)
All dimensions and dates are approximate
Broker comments
Why would 'Wild heart' make my short list?
She enjoyed a complete refit in 2020-21 to make her suitable for blue water cruising (ARC Atlantic Crossing compliant) and liveaboard life. However she did not do the ARC!
No expense was spared and all major systems have been upgraded - sails, rigging (running and standing), safety, copper coat, decking, electrical, navigation electronics etc. She has been continuously maintained over the past four years whilst sailing in the Mediterranean and remains ready to sail, with no major work required.
NAVIGATION EQUIPMENT
2021 Refit to include :-
Completely new system B&G – new NMEA2000 Backbone throughout
B&G Vulcan 12inch chartplotter
B&G Triton x 3 – one at each helm and one inside
B&G V60 AIS Radio with H60 wireless handset
B&G NAC3 Autopilot computer
B&G WS 310 wind sensor
B&G DST 810 transducer
Raymarine Type 2 autopilot ram (came with the boat)
Arch mounted antennas
Iridium Go
ELECTRICS
Energy Systems
Full Victron energy package installed in 24v
BMS, switches, fuses, complete wiring from batteries to distribution
1200 watts solar panel
Victron Smart Solar charge controller MPPT 250/85
4 x 160 amp Victron LifePo4 batteries (wired in)
Victron MultiPlus-II 3000VA inverter charger
Victron Cerbo GX & Cerbo Touch
Victron BMV 712 Smart Battery Monitors
Victron 24/12 Orion DC/DC inverter 3000va
Victron ArgoFet 3 way battery isolator
3 x LG 415W bifacial solar panels
3 batteries for:
House electronics – 100amp Victron AGM Gel
Engine Starter -
Bow Thruster & Windlass – Exide EP450 Dual AGM
Balmar 94 series alternator – 140 amp at 24v (3.5kw)
Pulley kit with J10 Belt
WakeSpeed 500 Controller
GROUND TACKLE
Vulcan 33kg Anchor, 100m chain and warp - 2021
Lofrans electric windlass
GENERAL EQUIPMENT - All new in 2021
33GPH DC Water Maker (Cruise RO)
Water & Diesel Tank senders (all 4 tanks)
Custom made arch for solar (with built-in seats and dinghy pulley system)
6 TruDesign Seacocks (out of 14)
Rudder Bearing
Stern Gland
Replaced bootstrap vinyl strip
Buked and wax on purchase – waxed every year onwards
Cockpit cushions made to measure in Sunbrella fabric
Cored & refilled rudder (after survey finding)
24v freshwater deck wash pump
Continued...
GENERAL EQUIPMENT
Navigation lights
Tri light mounted at mast head
Pulpit, pushpit and guard wires
Gates in guard wires to port and starboard - 2021
Warps and fenders
GRP cockpit table
Hot and cold transom shower
Spray hood and grab rail
Navy blue Bimini
Navy blue full cockpit cover
Navy blue canvas steering wheel covers
Plastimo clock and barometer
Cockpit speakers
Fusion MS-RA 70 radio/hifi (NMEA)
TOYS
Highfield Hypalon 290 dinghy - 2021
Mercury 9.9hp outboard - 2021
2 x Folding Bikes
2 x Inflatable SUP 13 foot
SAFETY EQUIPMENT
Jack Stays
Manual and automatic bilge pumps
Safety Gear - -
Boat prepared in 2021 for ARC requirements: dates not checked
All dimensions are approximate
No dates on safety gear have been checked and should NOT be relied upon
YANMAR 4JH4-HTE 75HP DIESEL ENGINE
Shaft drive to Max-Prop 3-blade feathering propeller
Engine hours approx. 1742
Last serviced at 1500 hours
7.5Kw bow-thruster with push button side power controls
ELECTRICS
4x Victron LifePo4 domestic batteries - 2021
1x engine battery
1x bow thruster and windless battery
1x AGM 12v electronics battery
Switched
Charged by engine upgraded high output alternator and battery charger
Shore power
Victron Multiplus 2 3000KVA inverter charger 2021
TANKAGE
740 litre (154 gall) fresh water tank
Single 240 litre (53 gall) fuel tank
Holding tanks60 litre - aft heads only
WATER SYSTEM
Hot and cold pressurised water system
Water heated by engine calorifier and immersion heater
40 litre (9 gall) hot water tank
Water Maker - Cruise RO 130litres per hour (2021)
Jeanneau Sun Odyssey 49 built in 2003 and designed by Phillippe Briand
CONSTRUCTION
GRP hull, deck and superstructure
Cork decking (by Elite Teak) decks, cockpit floor and seat tops - 2021
Twin leather covered wheel steering
CopperCoat - 2021
New guard wires all around - 2021
Custom made arch for solar (with built-in seats and dinghy pulley system) - 2021
L.O.A - 14.98M (49' 1")
L.W.L - 12.90M (42' 3")
BEAM - 4.49M (14' 8")
DRAFT - 2.15M (7' )
DISP. - 12,700KG (27,999lbs)
All dimensions are approximate
