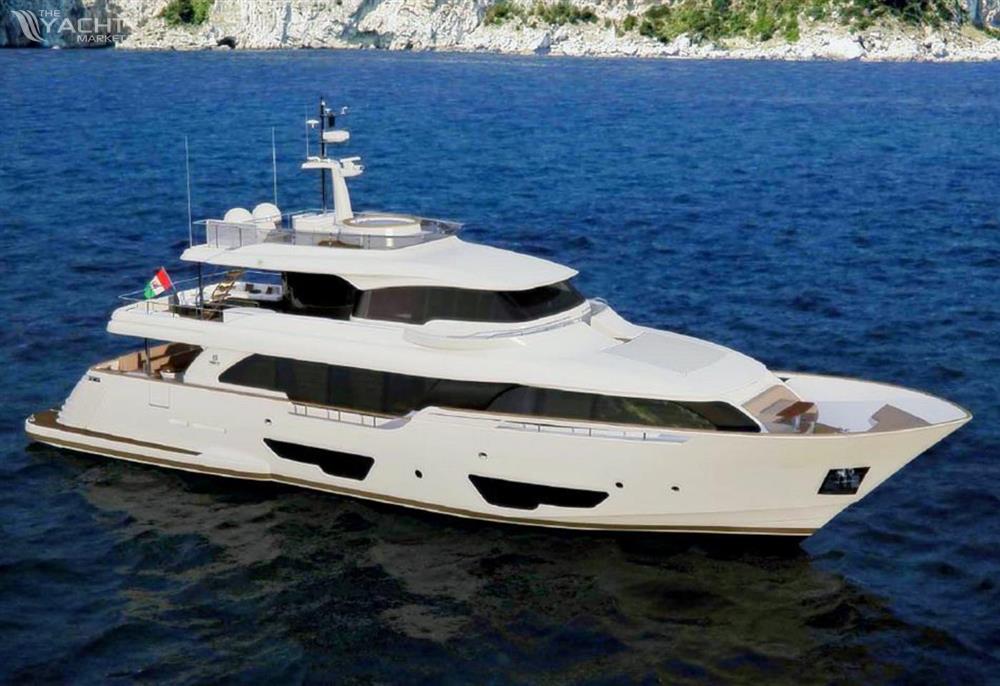

This 92’ 11” CUSTOM LINE NAVETTA 28 for sale, boasts superyacht flair in a very efficient package. This compact, yet spacious semi-planing tri-deck motor yacht was designed by Zuccon International Project with Ferretti Engineering Department developing the naval architecture.
Possible to register under 24 metres load-line length, the CUSTOM LINE NAVETTA 28 is a 28.31m luxury yacht, built in Italy in 2017 and first commissioned in 2018. Her top speed is 16 knots, while cruising at 13.5 knots, and she boasts a maximum cruising range of 1400 nautical miles at 10 knots with power coming from twin 1200 Hp MAN diesel engines.
The CUSTOM LINE NAVETTA 28 is recognizable from the unmistakable exterior profile and the panoramic dining area with round glass sliding doors which allow for great flexibility in the use of the upper deck. The large sunbathing area is a comfortable sundeck, which is fitted with a Jacuzzi tub and awning.
Her dual-mode transom (DMT), patented by Ferretti, can be folded down to make a beach area, while a section of teak deck can be unshipped from the roof of the garage and slotted in to almost double the beach area’s size. To launch the tender, the hatch opens upwards. The aft platform lowers into the water, flooding the stern dock, while a supporting cradle descends and the tender floats free. This impressively creative piece of engineering is worthy of a Superyacht twice the 28’s size.
On the main deck, a continuous window goes from stern to bow, while below deck there are four innovative hull windows at the level of the guest cabins, installed for the first time on the market, with “invisible” portholes glued onto the glass itself.
When guests walk into the salon, they are welcomed by a large, carefully structured open space. To starboard you have the galley, towards the bow, you reach the area reserved to the ship Owner’s master stateroom with a large bathroom and walk-in wardrobe. She can comfortably accommodate up to 10 guests in 5 luxury en-suite cabins with 5 crew members in 3 additional cabins with separate access.
Belowdecks you will find 4 guest cabins, 3 of which are fitted with double beds (one of them with sliding beds) and a twin cabin, all of them with en-suite facilities.
Comprehensively equipped with sundeck jacuzzi, a state-of-the-art A/V entertainment system, this CUSTOM LINE NAVETTA 28 for sale, also carries electro-hydraulic zero-speed (underway + at anchor) stabilizers for maximum comfort.
Early viewings are highly recommended.
MAIN CHARACTERISTICS
- Builder: Custom Line (Ferretti Group, Italy)
- Model: Custom Line Navetta 28
- Type: Motor Yacht / Compact Trideck Yacht / Semi-displacement
- Naval Architect: Ferretti Engineering Department
- Exterior Designer: Zuccon International Project
- Interior Designer: Zuccon International Project
- Hull Material: GRP
- Superstructure Material: GRP
- Decks: Teak-laid
- Year Built: 2017
- First Commissioned/Launched: 2018
- LOA: 28.31 m (92’ 11”)
- Hull Length: 23.98 m (78’ 8”)
- LWL: 23.80 m (78’ 1”)
- Beam: 7.00 m (23’)
- Draft: 2.21 m (7’ 3”)
- Displacement (Unladen): 89,500 kgs (197,314 Lbs)
- Displacement (Laden): 106,090 kgs (233,886 Lbs)
- Design Category CE 2003/44: CE Class A
- Classification Modules: B + F + Aa (Sound Emission) RINA SpA
- Lying: Sardinia, Italy
- Flag of Registry: Italy
PROPULSION
- Type / Fuel: Twin Diesel
- Main Engines: 2 x 1200 Hp (882 kW) MAN V8-1200 @2300 RPM
- Engine Hours: 1800 h (July 2023)
- Drives: V-Drives
- Transmissions: 2 x ZF 2000 V
- Economic Cruising Speed: 10 knots
- Range @ Economic Cruising Speed: 1400 NM
- Cruise Speed: 13.5 knots
- Range @ Cruising Speed: 600 NM
- Maximum Speed: 16 knots
- Range @ Max Speed: 400 NM
- Electro-hydraulic powered steering
- GRP partly submerged and silenced exhausts
- Stuffing box with dripless shaft seal, low maintenance
- 3 x Trim-tabs (flaps)
- Propellers: 2 x 6-blade NiBrAl
TANKAGE
- Fuel Capacity: 12,500 l (3,302 USG)
- Fresh Water Capacity: 2,000 l (528 USG)
- Grey Water Tank: 700 l (185 USG)
- Black Water Tank: 700 l (185 USG)
ACCOMMODATION
- 10 Guests in 5 en-suite Staterooms with Master’s cabin on main deck
- Guest Cabin Configuration:
- Master Stateroom on main deck with double island bed, walk-in wardrobe and en-suite bathroom
- 3 x VIP cabins belowdecks each with double island bed, closets and en-suite bathroom (One with separable beds)
- 1 x Twin guest cabin belowdecks with closet and en-suite bathroom
- Saloon, fully equipped galley and day-head on main deck
- Interior / exterior dining, lounge area and helm station on upper deck
- Crew Accommodation:
- 3 Crew cabins fore, for 5 Crewmembers with en-suite facilities
- Maximum Persons Onboard: 20
OTHER MECHANICAL EQUIPMENT
- Stabilizing fins TRAC underway
- 2 x SEAKEEPER gyro stabilizers at anchor
- Hydraulic bow and stern thrusters (40 Hp)
ELECTRICAL SYSTEMS
- Generators: 2 x 28 kW KOHLER
- Generator Hours: 3200 & 1950 h (July 2023)
- 24V battery banks for main engines and auxiliary services
- 24V lighting system
- Automatic battery chargers
- Dock connector plug (20m) 100 A – 400V 3-phase +
- Ground cable reel with GLENDENNING (local and remote control)
- 2 x 24V /230V inverters for fridges and domestic loads
- UPS for audio-video systems
- Inverters for fridges and domestic loads
AIR CONDITIONING SYSTEM
- Tropical air conditioning with heat pump and air handlers 180,000 BTU total
- Air compressor
WATER SYSTEMS
- 2 x Fresh water autoclave pumps (230V + 24V)
- 2 x 80 l Water heating boilers
- Hot water circulating pump
- Watermaker IDROMAR 350 l/h
- Automatic grey water discharge system
- Electric automatic pump for black water tank discharge
- WCs with electric freshwater flush
- Grey and black water tanks washing system
- Electric engine driven and manual bilge pumps
FUEL SYSTEMS
- 2 x Fuel tanks with decantor
- Discharge and inter-connection system
- 2 x RACOR fuel prefilter for engines and HUMMEL prefilter
- 2 x RACOR fuel prefilter for generators
DOMESTIC EQUIPMENT
- Fully equipped galley to starboard main deck
- Induction cooking top
- Extractor
- Wine cellars
- Marble galley table
- Oven upgraded 90cm
- Fridge/freezer 504 litres in galley with icemaker (Standard)
- Washer/dryer
NAVIGATION & COMMUNICATION ELECTRONICS
- MAN Electronic engine controls
- MAN MMDS Electronic engine displays
- Integrated 3D SIMRAD with 2 x LCD 15” colour monitors with navigation plotters, echo-sounder, radar 48 miles, GPS
- Monitoring system with 15” touch screen for: weather, tank levels, alarms, lights, outside doors, smoke, flaps position, CCTV, nav lights, nav instruments, bilge pumps, AC system, electrical systems, and galvanic isolation
- SIMRAD multifunction navigation instrument (eco, log, water temp)
- SIMRAD automatic pilot control unit
- Magnetic Compass
- SIMRAD VHF
- Windlass control
- Stabilizer control
- Searchlight control
- Anti-fog horn
- Digital chain counter
ENTERTAINMENT EQUIPMENT
- Upgraded AV package
- TV 55” LED with controlled ceiling lift in the lounge
- TV 46” in the Owner's cabin
- TV 40” guest cabin forward left
- TV 40” guest cabin aft right
- TV 40” VIP cabin right aft
- TV 40” VIP cabin left aft
- TV 32” guest cabin forward left
- TV 22” in the galley with DVD and speakers
- TV 22” in the Captain's cabin
- KVH TV8 satellite TV antenna with standard receiver in the living room
- TV8 empty dome antenna for symmetry on the roll bar
DECK EQUIPMENT
- Dual Mode Transom
- Control station fixed cover in the cockpit
- Hydromassage bathtub on Sundeck
- Electro-hydraulic swim ladder to starboard on swim platform
- 2 x Stern mooring capstans 1700W each
- CCTV in cockpit
- Double-mode transom door
- 2 x Electric anchor windlasses 3500W
- Anchor chain 13mm 130m + anchor chain 13mm 150m
- Digital chain counter
- 2 x POOL anchors 85 kgs
- Electric winch for tender launch
- Teak deck on walk around bow area out of the pilot house
- Moveable teak flooring in the aft garage
- Teak on sundeck
- Jacuzzi on sundeck
- Manual bimini top on sundeck
- Cleats on swimming platform
- Cockpit shower with fresh water
- Fresh water outlet for exterior washing
- Lighting in stairs
- Sunbrella for the beach club with housing
- XENON underwater lights on the sides of the hull
- XENON lights under bathing platform
EXTRA ACCESSORIES INSTALLED ON BOARD
- Hydraulic stern thruster 40 Hp
- Electric aft saloon door
- Tropical air conditioning (saloon + cabins + crew)
- Saloon portal upper band lighting
- Fixed cockpit control station with cover
- Separable beds (sliding) right VIP cabin
- Galley table in marble
- 2 x Wine cellars in the living room and galley
- Headboard and bed frame in the Owner's cabin covered in Nobuk leather
- Tubular LED lights under galley cabinets
- VIP cabin mirrors on the side of the TV totem
- Glossy lacquered TV totem panel
- Underwater lights added along the sides
- XENON watertight underwater lights under aft platform
- Dimmer lights on lower deck, panoramic deck, main deck and cockpit
- Electric lifting of curtains for lower deck cabins and Owner's cabin
- Teak flooring in movable platform in the garage
- Teak walkway at the bow of the bridge
- 2 x Retractable cleats on the tailgate
- Galley oven 90cm
- Ice maker with independent tank
- Upper deck electric blinds
- HAMMAN black water treatment system
- IDROMAR 350 l/h watermaker
- Freezer 74 l additional in the galley
- Induction hob
- Low LED strip on walled folder for guest cabins
- Spoiler descent staircase lights
- Electric saloon aft awning
- Panoramic dining room tent
- SIMRAD Upgrade Dashboard
- Main deck parquet flooring
- Bathroom floor + Owner's shower walls in marble
- Shower tray + Owner's cabin shelf in marble
- A/V Package Premium Control Area: iPad Mini upper saloon / sundeck / Owner iPad Mini access point, device control, commissioning
- Umbrella at the bow
- Removable aft bimini
- Bimini with 4 poles on the sun deck
- Cockpit table + cockpit chairs
- Additional fiberglass furniture in the cockpit
- Umbrellas and additional fixing eyelets
- Left and right compartments lockers aft hangar
- Fixing of external cushions
- Second additional washer-dryer
- Norwegian furniture for cockpit
- Awning with railing in cockpit privacy awning in main deck cockpit with perforated fabric
- Lateral handrails above stern boots
- Waterproof roller blind in the garage for delimitation of the beach / hangar
- Removable teak cover for rafts
- Post rods with glass on side boots (2 rods + 4 glasses)
- Party mode upper deck
- Backlit stainless-steel name
- Whirlpool tub on sundeck with temperature maintenance system
- CCTV with Flir Pan / Tilt M324 XP thermal night camera
- Double sponge cover for outdoor sundeck
- PAOLA LENTI blend for sundeck, dinette and bow sundeck and cockpit sofa
- Opening window on the right and left side of the Owner's cabin
TENDER
- 445 WILLIAMS Diesel Jet tender (110 Hp)
