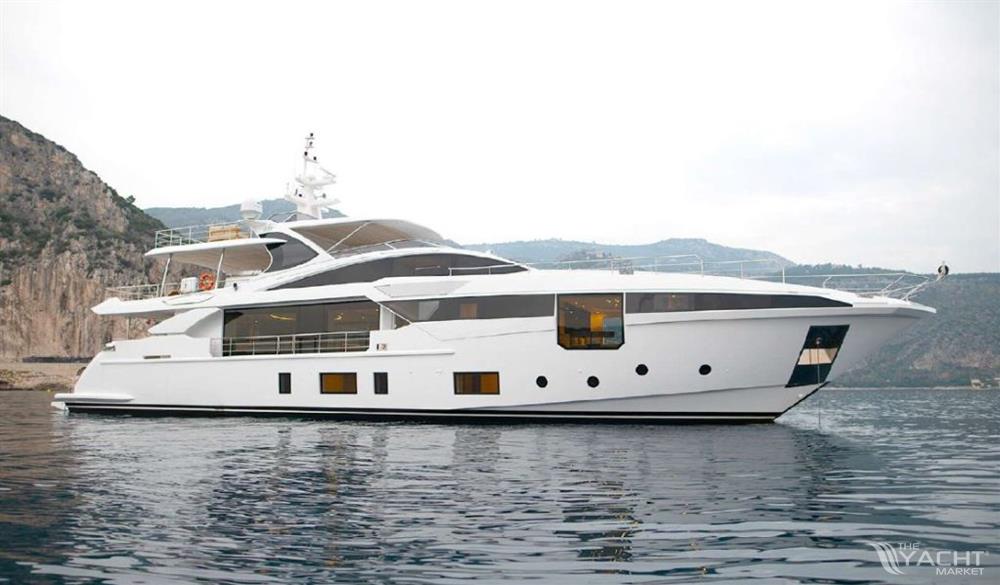

Azimut Grande 35 Metri à vendre (2017) dans Cannes, France

This superb AZIMUT GRANDE 35 METRI motor yacht was built in 2017 to a very high specification by the Italian ship builder Azimut Yachts. This tri-deck yacht features an innovative hull design, built in fibreglass & carbon fibre, allowing navigation from displacement to planing modes.

This AZIMUT GRANDE 35 METRI for sale, also offers unprecedented solutions for a boat this size, representing a masterpiece of style and space. A wide-body Superyacht with a third level for an additional sundeck, side garage for tender and jet ski, two big beach clubs in the stern and bow and an owner’s suite on the main deck with a spectacular fold-out terrace.

This Superyacht’s interior has been designed by Achille Salvagni. She has a powerful classic beauty combined with elegant interior, tastefully decorated in a contemporary style.

Featuring accommodation for up to 12 guests in 5 en-suite staterooms, she is a great example of quality and style, well equipped with comfortable zero-speed stabilizers, sate-of-the-art entertainment equipment, all the amenities and air conditioning throughout.

The yacht’s interior configuration comprises an on-deck and beam-wide master suite, 2 double cabins and 2 twin cabins, each of the later with additional Pullman beds. She is also capable of carrying up to 6 crew onboard in 4 cabins to ensure a relaxed luxury yacht experience.

Powered by twin 2400 Hp Diesel engines, this AZIMUT GRANDE 35 METRI motor yacht is capable of a top speed of 26 knots, and comfortably cruises at 21 knots, with a considerable range of 1500 nm at economical cruising speed up to 12 knots.

Early viewings and offers are highly encouraged.

KEY FEATURES

• Competitively priced
• Low Hours
• Immaculate condition
• 5-Cabin Layout for 12 Guests, Master on Main Deck
• 6 Crew
• Zero-speed stabilizers
• Azimut D2P® displacement to planing hull combining the comfort typical of a displacement hull with the performance of a planing hull and significantly improving fuel efficiency. This innovative feature is based on a double chine hull design with wave piercer which allow the yacht reaching high top speeds without needing particularly powerful engines or navigate in displacement mode with a remarkable range at a cost-effective speed. The hull has been optimised for the full range of most frequently used speeds of 10-12 knots and cruising speeds in semi-displacement mode.
• Owner’s suite features a private fold-out instant balcony providing unobstructed panoramic sea views
• Third level for additional sundeck (almost 30 m2), with access from the upper deck in the stern
• Side garage for a 5-meter tender plus a 3.25-meter jet-ski, leaving the stern completely free for a magnificent 12 m2 beach area provided by the big pivoting swim platform
• Jacuzzi on bow deck

MAIN CHARACTERISTICS

• Builder: Azimut Yachts (Italy)
• Model Azimut Grande 35 Metri
• Exterior Styling & Concept: Stefano Righini
• Hull Designer: P.L. AUSONIO Naval Architecture & Azimut R&D Dept.
• Interior Designer: Achille Salvagni Architetti
• Type: Motor-Yacht / Superyacht / Tri-deck Yacht
• Hull Type: Semi Planing
• Keel: Planing with wave piercer
• Hull Material: Carbon Fiber + GRP
• Superstructure Material: Carbon Fiber + GRP
• Decks: Teak
• Year Built: 2017
• Length Overall (incl. pulpit): 35.17 m (115' 5")
• Length at Waterline: 28.52 m (93' 7")
• Beam Max: 7.50 m (24' 7'')
• Draft (incl. props at full load): 1.91 m (6' 3'')
• Displacement (at full load): 154,000 Kgs (339,512 Lb)
• Gross Tonnage: 269 GT
• Class: RINA Pleasure Yacht C ✠ HULL · MACH Y
• Flag of Registry: Jersey
• Lying: Cannes, French Riviera

PROPULSION

• Type / Fuel: Twin Screw Diesel
• Main Engines: 2 x 2400 Hp (1790 kW) MTU 16V 2000 M93
• Engine Hours: 1480 h (June 2025)
• Maximum Speed: Up to 26 Knots
• Cruising Speed: Up to 21 Knots
• Economical Cruising Speed: Up to 12 Knots
• Range @ Economical Cruising Speed: 1500 nm
• Gear Boxes: 2 x ZF 3360, Ratio 3.519:1
• Shafts: AQUAMET 17
• Propellers: 2 x 5-blade NiBrAl

TANKAGE

• Fuel Capacity: 18,000 l (4,755 US Gal)
• Fresh Water Capacity: 3,000 l (792 US Gal)
• Sewage/Greywater Tank Capacity: 2,500 l (660 US Gal)

ACCOMMODATION

• 5 En-suite staterooms for 12 guests
• Cabin Configuration:

  • Master cabin on main deck with double island bed, study, opening balcony on portside with automatic handrails, walk-in wardrobe, his & hers en-suite bathroom
  • 2 x VIP cabins belowdecks, each with double island beds, closets, en-suite bathrooms
  • 2 x Twin cabins belowdecks, each with single beds, additional Pullman bed, closets and en-suite bathrooms

• Day-head on main deck with hand shower
• 4 Crew cabins for 6 crew, each with en-suite facilities
• Crew mess
• Interior Woodwork: Oak light wood matt mostly, combined with Mahogany dark wood 100% gloss

ELECTRICAL

• Electrical Systems: 400V AC / 50 Hz / 24V / 12V
• Generators: 2 x KOHLER 53 kW Model 55EFOZDJ
• Generator Hours: Port 2015 h, Starboard 1780 h (June 2025)
• Main Machinery: 400V AC / 50Hz / 3 phases
• Lighting and Household Appliances, Stereo, TV sets, and other Low Power Users: 230V AC / 24V AC, single phase
• Emergency Lighting System: 24V DC battery system
• Service Equipment: 24V DC battery system
• Radio Equipment: 24V DC battery system
• AC Power: Supplied by 2 x Diesel generators or by a shore power system
• Shore Power: 125 A shore power connector, 25m
• Transformer: 80 KVA 400 V AC (inlet) / 400 V AC (outlet) shore insulating transformer
• Batteries:

  • All batteries in GEL or AGM-type according to their application
  • Radio Batteries: 1 x group of 24V DC batteries for radio equipment
  • Service Batteries: 1 x group of 24V DC batteries for services
  • Engines Start-up: 2 x groups of 24V DC batteries for main engines starting
  • Generators Start-up: 2 x groups of 12V DC batteries for diesel generators starting
  • Main Engines Electronics: 2 x groups of 24 V DC batteries for main engines electronics
  • Motorpump Starter: 1 x group of batteries for motorpump starter
  • Emergency Batteries: 1 x group of 24V DC batteries for emergency

• Battery Chargers: Alternator on each main engine and generator, in order to charge the related battery set
• Manual/automatic Battery Chargers: 1 x main engine starter battery set charger, with charging divider, 1 x diesel generator starter battery set charger, provided with charging divider, 1 x service battery set charger, 1 x emergency battery set charger, 1 x radio battery charger, 1 back-up battery set charger for emergency-service-R/T, 1 x MMEE electronic battery set charger, provided with charging divider, 1 x battery charger for motorpump’s starter

MAIN EQUIPMENT

• Stabilizers: 2 x CMC electrical zero-speed fin stabilizers (CMC Stabilis Electra SE80-7-4-160)
• Bow Thruster: Electrical bow thruster (CMC BTM60EA) with an electrical motor having 45 kW input nominal power supplied by generators, Voltage 400 Vac, 3 phases, 50Hz, duty cycle S6-40%, propeller thrust 720 kgf
• Bilge Pumps: 1 x electric self-priming pump in the engine room for main bilge system, connected with the motorpump. 1 x dedicated electric pump will be installed for the garage bilge system
• Motorpump: 1 x motorpump for bilge and fire systems
• Watermaker: 1 x reverse osmosis watermaker (IDROMAR MC3J) with capacity 180 l/h
• Water Heaters: 2 x electric hot water stainless-steel heaters with total capacity of 200 l (53 USG), resistance 3+3 kW for each heater
• Fresh Water Steriliser, Filters: Active carbon filter installed between freshwater pumps and the users
• Steering System: 1 x electrical actuator in the wheelhouse, 1 x electrical actuator in the external console, placed on flybridge, 1 x hydraulic power pack (fitted in the aft technical room on portside), with 2 x 400V electric pumps and one oil tank. Hydraulic actuator with steering wheel in the aft technical room, for emergency manoeuvring
• Air Conditioning System: Designed according to the following reference conditions:

  • Summer Outside air 35 °C (95 °F) R.H. 80%, Inside air 22 °C (72 °F) R.H. 50%, Sea water temperature 32 °C (90 °F)
  • Winter Outside air 0 °C (32 °F), Inside air 22 °C (72 °F), Sea water temperature 10 °C (50 °F)
  • Fan coil units installed in interior living areas. Air handling units supplying fresh air to all living areas

ADDITIONAL OPTIONS

• Blue marble in the bathrooms
• Upgrade faucets and bathroom accessories
• Upgrade carpets LUX
• Back-up alarm system in the crew area with 10.4" touchscreen
• 24V ventilation system for the electrical room
• 4G Wi-Fi system on board
• Remote control audio / video system
• Air conditioning in engine room
• Toilet drainage in front of the door on all toilets including crew
• All bathrooms with bidets, day-head and crew excluded
• Electric TECNOINOX salon door
• Lights on the wave piercer
• Spotlights in salon and dining
• Spotlights on aft flybridge
• Additional insulation on Master cabin (aft bulkhead and ceiling)
• Central vacuum system
• 7 x LUMISHORE underwater lights (transom and each side of the hull)
• Fixed video camera on aft cockpit ceiling + zooming and videocamera in engine room PANASONIC, connected to FURUNO navigation displays (4 - cockpit, sides and engine room)

NAVIGATION, COMMUNICATION AND ELECTRONIC EQUIPMENT

• Wheelhouse Controls:

  • Steering actuator wheel
  • Bow thruster control lever and running indicator
  • MTU main engines throttles
  • MMEE key, start/stop buttons and alarm signal
  • Emergency stop for main engines
  • Stabilizer fins control panel
  • Monitoring system

• Flybridge Controls:

  • Steering actuator wheel
  • Bow thruster control lever and running indicator
  • MTU main engines throttles
  • MMEE key, start/stop buttons and alarm signal
  • Emergency stop for main engines

• Wheelhouse Instrumentation:

  • 1 x Transducer FURUNO B744VL
  • 1 x Monitor FURUNO 15” MU-150HD
  • 1 x Multifunction display FURUNO RD-33
  • 1 x Autopilot FURUNO Navpilot 700
  • 1 x Rudder angle FURUNO FI-506
  • 1 x VHF FURUNO FM-4721
  • 1 x Compass WHITE STAR B6W3/3-100

• Flybridge Instrumentation:

  • 1 x Multifunction display FURUNO MFD12
  • 1 x Multifunction display FURUNO RD-33
  • 1 x Autopilot FURUNO Nav 711
  • 1 x Rudder angle indicator FURUNO FI-506
  • 1 x VHF repeater
  • 1 x Compass ZENITH BZ1/3-143

• Roll Bar:

  • 1 x Radar antenna FURUNO 4ft 6kW
  • 1 x NAVnet 3D BB
  • 1 x VHF antenna BA 197
  • 1 x GPS antenna FURUNO GP-330B
  • 1 x Weather station AIRMAIR WX 150

• Emergency Station:

  • 1 x Rudder angle indicator FURUNO FI-506

• Log: 1 x Speed-log system included in navigation system
• Echosounder: 1 x Echosounder included in navigation system
• Horn: Pneumatic horn with dedicated compressor
• Intercom System: 1 x Emergency internal communication system fitted in wheelhouse, engine room, emergency steering location, aft cockpit, fore mooring station
• Phone System: PABX system for 9 phones in the following areas: wheelhouse, salon, galley, master cabin, VIP cabins, guest cabins, crew mess

ENTERTAINMENT EQUIPMENT

• SAT Antenna: KVH TV8 & dummy dome
• Crew Mess:

  • 1 x TV 22’’ SAMSUNG LED UE22H5000
  • 1 x Mini Hi-fi player YAMAHA MCR-750
  • 2 x Loudspeakers PROMAR 6” PMS6

• Twin Guest Cabins (each x 2):

  • 1 x TV 32’’ SAMSUNG LED UE22H5000
  • 1 x Blue Ray player SONY BDPS590
  • 1 x Amplifier DENON AVR-X1100
  • 1 x Pair of loudspeakers B&W CCM362 (Square)

• VIP Cabins (each x 2):

  • 1 x TV 40’’ SAMSUNG LED UE22H5000
  • 1 x Blue Ray player SONY BDPS590
  • 1 x Amplifier DENON AVR-X1100
  • 1 x Pair of loudspeakers B&W CCM362
  • 1 x Apple TV

• Crew Cabins (each x 3):

  • 1 x Car stereo SONY
  • 2 x Loudspeakers PROMAR 6” PMS6

• Captain’s Cabin:

  • 1 x Mini Hi-fi YAMAHA CRX-N560 CD
  • 2 x Loudspeakers PROMAR 6” PMS6

• Owner’s Cabin:

  • 1 x TV 48’’ full HD SAMSUNG LED UE40JU7000, with concealing mirror
  • 1 x Blue Ray player SONY BDPS590
  • 1 x Amplifier BOSE V35
  • 1 x Apple TV

• Main Saloon:

  • 1 x TV 65’’ full HD SAMSUNG LED UE55JU7000
  • 1 x Blue Ray player SONY BDPS590
  • 1 x Amplifier BOSE V35
  • 1 x Apple TV

• External Main Deck – Aft Cockpit:

  • 4 x Loudspeakers PROMAR 8” PMR8
  • 1 x Amplifier BOSE SA-3
  • Predisposition for TV

• Flybridge:

  • 4 x Loudspeakers PROMAR 8” PMR8
  • 1 x Amplifier BOSE SA-3
  • Predisposition for TV
  • Outdoors cinema on flybridge AVIELO QUANTUM by Projection design

• External Main Deck – Bow Living Area:

  • 2 x Loudspeakers PROMAR 8” PMR8
  • 1 x Amplifier BOSE SA-2

DOMESTIC APPLIANCES

• Main Saloon:

  • 1 x Saloon Bar Ice Maker ISOTHERM
  • 1 x Minifridge ISOTHERM

• Laundry:

  • 1 x Washing Machine MIELE
  • 1 x Drying Machine MIELE

• Crew Mess:

  • 1 x Fridge ISOTHERM

• Galley:

  • 1 x Cooking Top 90cm 1 MIELE
  • 1 x Exhaust Hood MIELE
  • 1 x Oven 90cm MIELE
  • 1 x Microwave MIELE
  • 1 x Dishwasher MIELE
  • 1 x Freezer ZANUSSI
  • 2 x Fridges ZANUSSI

• Beach Area:

  • 1 x Ice Maker ISOTHERM
  • 1 x Bar Minifridge ISOTHERM

• Flybridge:

  • 1 x Ice Maker ISOTHERM
  • 1 x Bar Minifridge ISOTHERM

DECK EQUIPMENT

• Windlasses: 2 x electric windlasses of the vertical type on a recessed stainless-steel plate, locally controlled, 400 Vac, 3 phases, 50Hz, 4 kW
• Capstans: 2 x electric foot-operated vertical capstans on aft deck, locally controlled, 400 Vac, 3 phases, 50Hz, 3 kW
• Mooring Bollards: Polished AISI 316L stainless-steel bollards, 2 on the aft main deck, 4 on the forward main deck
• Roller Fairleads: Polished AISI 316L stainless roller fairleads, 4 on the forward main deck, 2 on the aft main deck
• Anchors: 2 x galvanised steel VHHP (very high holding power) anchors of 120 kg each
• Anchor Chains: 2 x studless chains made in galvanised steel of 12 mm diameter link, length of each chain 110 m
• Rudders: 2 x spade rudders (0,6 sqm), made of AISI 316L
• Gangway: Telescopic retractable stern gangway, hydraulically operated and connected to the power pack unit, used also for other equipments, in polished stainless-steel frame and teak grating, operated by remote control
• Swimming Ladder: 1 x upgraded swimming ladder in AISI 316 stainless steel, with teak steps on side of the bathing platform
• Hard Tops: GRP rollbar and 2 x GRP hard tops (fwd and aft) with integrated sliding awnings
• Soft Tops: 2 x motorized awnings fitted on the flybridge, inside the GRP hard tops, to cover the outdoors living area
• Additional sundeck in lieu of standard aft hard top, with antiskid flooring
• Tender & PWC Handling System: Handling systems for tender and PWC, including electro-hydraulic winch and stainless-steel sleigh with rollers
• Jacuzzi: 1 x whirlpool tub installed on the bow deck living area

SAFETY & SECURITY EQUIPMENT

• Fire Extinguishers: Portable CO2/foam/powder fire extinguishers
• Fire Nozzles: Sea water nozzles, feeded from fire main, installed in garage as firefighting devices
• Fireman Axe: 1 x fireman axe
• Life Rafts: 2 x life rafts for 10 people each, installed on flybridge
• Life Buoys: 2 x with buoyant line, on flybridge
• Parachute Flares: Parachute flares (6 pieces) and smoke signals (6 pieces)
• Life Jackets: 16 x life jackets
• Engine Room Fire Extinguishing System: FM 200 fixed fire extinguishing system for engine room, with adequate nozzles and a release handle fitted on the emergency control panel situated near the access to the engine room/garage area
• Fire Alarm System: Fire alarm system with heat or smoke detectors fitted throughout the yacht
• Engine Room Fire Dampers: 2 x fire dampers to close the engine room ventilation trunks
• Fire Pump: 1 x electric self-priming pump in the engine room for sea water fire extinguishing system, connected with the motorpump
• Emergency lighting system
• Emergency Stop system

TENDERS & WATERSPORTS

• WILLIAMS 460 Sportjet tender, 150 Hp engine
• SEA DOO jet-Ski RXT
