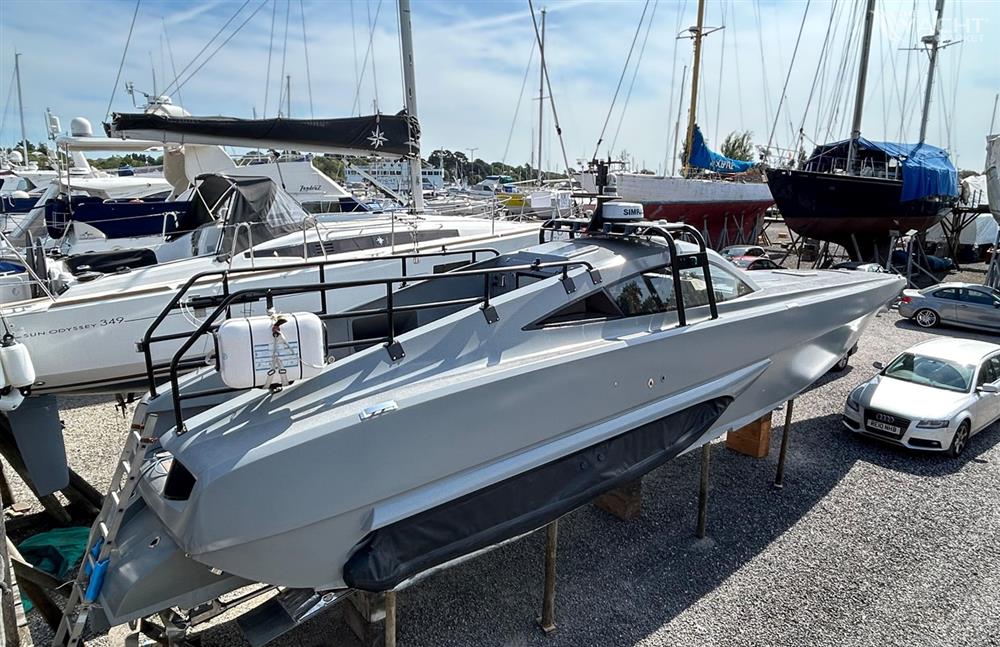

CUSTOM XSR 48 para vender (2020) en Lymington, Reino Unido

This 2020-built, Buzzi-Design-hulled XSR 48 has been extensively refitted and optimised for a high-speed professional interceptor role. Work completed in 2023 includes a matte grey repaint, custom closed hardtop conversion, new electronics, antenna array, FLIR system, windlass, Starlink communications, Workboat certification, and a demountable drone platform. An exceptional and rare opportunity.

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised C – “Coastal”

MECAL Workboat Certificate of Compliance  - expires 28.02.2029.

Hull, Deck & Superstructure Construction:

• Hull and topsides laminated in E-Glass Hybrid.
• Carbon Bi-axial and unidirectional stiffening, with Kevlar reinforcement.
• High density linear core used in bottom panels with high slamming loads.
• Re-painted in Matt Grey – 2023.

Machinery

Engine & Gearboxes:

• 2 x 2020 FPT 570S. 570 hp diesel.
• ZF 280-1 marine transmission.
• Spare FPT 4570S diesel engine.
• Spare ZF gearbox.

Maintenance & Performance:

• Cruising speed: 40 knots.
• Quoted maximum speed: 60-65 knots.
• Last service date @ March 2024.

Propulsion & Steering:

• 2 x Trimax surface drives to 5-bladed Rolla cleaver stainless steel propellors.
• Hydraulic power-assisted steering.

Electrical Systems

Voltage Systems:

• 24 Volt ships system.

Battery Banks:

• 3 x Battery banks: Service, Port and Starboard engine cranking.
• Service – 4 x 12V Mastervolt AGM 160AH connected as 24V (2023).
• Port & Stbd cranking – 2 x 12V Odyssey Extreme AGM batteries connected as 24V (2023).
• Dedicated Mastervolt Shunt to each bank (connected to Masterbus & to C-Zone screen (2023).
• 4 x BlueSea remote battery isolators.
• Maintained supply from service bank to C-Zone , bilge pumps, fire system, charger feed, inverter, and charger feed.
• Emergency battery parallel switching.

Battery Charger:

• Victron Energy Skylla-IP65 24V/35A/3 output battery charger (2023).

Alternators:

• 2 x Secondary 24V Mastervolt alternators (with regulators) to charge service bank whilst underway.

Shore Power:

• 230V ring main fitted, with cable.

Plumbing Systems

Fresh Water & Water Heating System:

• 1 x Carbon sink to WC.
• Fresh water shore at transom.
• Water heating by 220V immersion heater.

Bilge Pumps:

• 6 x Electric switched bilge pumps.
• 2 x Manual emergency pumps.

Tankage

Fuel:

• New custom bladdered military specification insulated fuel tank (2024).
• Believed to be 1100 L capacity.

Fresh Water:

• Single 180 L fresh water tank.

Navigation Equipment

• 2 x Simrad NSS EVO3S 16” MFD’s (2023).
• Simrad NSS 7 EVO 3 MFD (2023).
• Simrad HALO 24 radar scanner (2023).
• Simrad V5043 Class A AIS Transceiver (2023).
• Simrad OP50 Controller.
• Raymarine M232 FLIR thermal camera & controller (2023).
• 4 x coxswain’s Peltor Boat Intercoms units (2023).
• 4 x Protac Data-Link antennas (2023).
• Navtech NTS-HS102-(IP66) GPS compass.
• Echomax Active radar enhancer.
• Plastimo Olympic 115 steering compass.
• Starlink communications system (2023).
• 2 x Icom IC-M510 Marine DSC VHFs.

Domestic Equipment

Heads/Showers:

• 1 x Carbon WC (electric flush).

Heating & Ventilation:

• Eberspacher diesel-fired cabin heater.
• Heated windscreens (sectioned port & starboard).

Lighting:

• Ships lighting circuit.
• Full set of Hella/Lopolight navigation lights.

Deck Equipment

General:

• Recessing deck cleats and lifting points.
• Black anodised aluminium frame to aft cockpit with liferaft/lifering mounts (2023).
• Black anodised aluminium antenna farm above wheelhouse (2023).
• Grey non-slip paint to foredeck & side decks (2023).
• Grey Flexiteek sole to aft cockpit with engine space access hatches port & starboard.
• Custom de-mountable drone launch/recovery platform.

Anchoring & Mooring Equipment:

• Lewmar CQR-type anchow with chain on custom bow roller (2023).
• Lewmar electric windlass with controls (2023).

Safety Equipment

• 4 x Spinlock Deckvest lifejackets (service date unverified).
• 1 x Ocean Safety SOLAS B 4-person liferaft in canister (service date unverified).

Fire-Fighting Equipment:

• Seafire automatic engine room fire suppression system (service date February 2025).
• Manual fire extinguishers in accommodation (service date February 2025).
