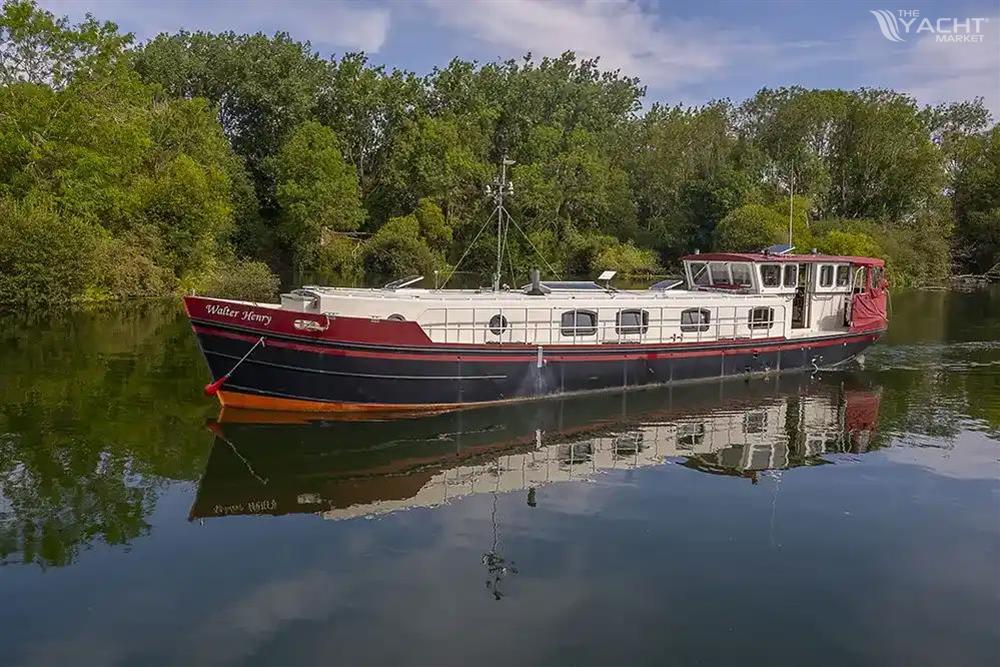

Walter Henry is an elegant example of a traditional Dutch Barge with a round stern. The boat has an extensive equipment list, in excess of many boats of a similar size and type. RCD Cat C accreditation makes the boat perfect for coastal waters, large bays, estuaries, rivers and other inland waterways. At the stern the large after deck creates a perfect social focus with ample space for table and chairs allowing owners and guests to dine, relax in comfort and enjoy the views. The large wheel house, with hydraulic lowering roof for transit under low bridges, provides a further social/living space when moored and a comfortable steering position with well-equipped dash board and displays, including a Garmin 276 plotter and Raymarine I70 multi display, for the helmsman when underway. The large engine room with standing head room, houses much of the main equipment, fuel tanks and battery banks as well as a substantial 12KVA Generator easily able to supply power to the boat when not attached to shorepower. The Vetus 170hp is more powerful to ease passages in tidal and coastal waters. The additional engine horse power together with powerful, yet versatile, variable speed bow and stern thrusters gives this vessel exceptional control, manoeuvrability and ease of handling in tight spaces, in windy conditions, entering and leaving locks and for mooring. Other notable features include the 200 gallon fresh water capacity and the significant black water holding tank capacity (350 gallons in two separate tanks linked to each heads) allowing for longer uninterrupted cruising. In addition, separate fuel tanks for main propulsion (200 gallons) and domestic heating (100 gallons) ensures ample fuel for extended trips. The interior accommodation includes a well-equipped galley with NEF appliances throughout. The feel throughout is homely and the overall layout provides space and comfort whether for holidays, extended stays or living aboard. The 2nd cabin, currently laid out as a study will provide a further double berth with a second bathroom available for guests.
GENERAL INFORMATION
Stern Type – Traditional Dutch Barge round stern
Builder - Lambon Fabrications Limited
Fit-out - Completed 2022. JDS Carpentry
Insulation – Spray Foam throughout, including wheelhouse
Number of Berths - 2 (plus 2 if study set up as cabin)
Number of Cabins - 2
Canopies – Full aft deck cover and surround with zip in windows. Creates additional living space on the aft deck
Recent Works
Boat Safety Certificate Expiry Date – 6 Feb 2027
Last Blacking - 2 pack antifoul (2018)
Last Engine Service - Dec 2023
Last Survey - Launched Dec 2018 ( Vendor will cover costs associated with a new survey)
Engine Specification
Make & Model - Vetus D Line
HP – 170hp
Number of Cylinders - 6 (VD6.170)
Cooling Type - Raw Water. 2 independent skin fittings routed through separate filters each can be used in isolation giving back up if any blockage
Twin Racor 75/B32016M 10 fuel filters. 10 micron
Gear Box Make - ZF 45-1
Diesel Tank Capacity (L) - 200 gallons/ 910 litres
Year - Dec 2018
Bow Thruster – Side Power, Variable Speed SP20/300, PPC 800, 2 x independent batteries and charging system
Stern Thruster – Side Power, Variable Speed SP20/300, PPC 800, 2 x independent batteries and charging system
Control from helm. Includes Hold function
Hot Water & Heating Systems
Source of Hot Water –
o Engine Calorifier – Yes
o Central Heating - Kabola HR400 combi (CEIP40)
o Immersion – Yes
o Gas Water Heater - No
Central Heating
Kabola HR400 Combi (CEIP40)
Separate heating fuel tank – 100 gallons
Multi Fuel Stove - Morso, Squirrel 1410
Water Tank Capacity (L) - 200 gallons/910 litres
Electrical Systems & Components
24 Volt
240v Landline - Yes
Inverter - Victron Quatro 24V/ 5000S/120 Amps
Generator - Vetus GLX 14 KVA. Low rev, raw water cooled
Batteries - Independent battery banks for engine start, domestic, bow thruster, stern thruster, generator start
Anchor/ Windlass
Maxwell RC12 HD Winch, Electric 3,500lbs with capstan and gypsy 50 meters x 13mm chain
Steering
Hydraulic
Other equipment
Icom IC M33OGE DSC Radio
Raymarine P70RS Auto pilot control head
Raymarine I70 Navigation instrument pack
Garmin GPS Map 276CX
Hydraulic lowering wheelhouse
Seafire NFD800M Automatic/manual fire extinguisher in engine room (installed 2025)
Victron isolation Transformer 7000W
Aft Deck
2.25m aft deck with canvas surround
Wheelhouse
270x206 cm
Amtico flooring
Steering position
Radiator
Bi fold doors at rear opening fully to the aft deck
Sliding doors to port and starboard opening to side decks
3 x 12V sockets
Hatch/ladder to engine room
Interior
Master Cabin Forward
o Double Cabin, King size bed, Amble cupboard space, mirrored wardrobe, large wall mounded mirror
o TV
o Door leading to ensuite
o Carpeted
Master heads
o Lee San Pump Out toilet
o Walk in Shower
o Washing machine under counter
o Stone counter top
o Cupboards below, 2 x mirrored cupboard above
o Forward holding tank capacity – 175 gallons
o Access to underfloor storage and grey water pump out
o Amtico flooring
Second cabin/study
o Current lay out as a study, can be set up as a double cabin
o Amtico flooring
o Access to under floor storage
Aft/Guest Heads
o Lee San Pump Out toilet
o Stone counter .
o Cupboards below, mirrored cupboard above
o Aft holding tank capacity – 175 gallons
o Access to underfloor storage and grey water pump out
o Amtico flooring
Galley
o Fridge NEF K431(Larder)
o Freezer NEF G434
o Dishwasher NEF S875
o 2 Ovens
o N70 Built in Compact with microwave (60 x 45 cm) stainless steel/black
o N70 Built in oven with steam function (60 x 60 cm) stainless/black
o N70 Induction Hob 4 rings
o Iroko Worktops
o Radiator
o Access to ample underfloor storage
o Amtico flooring
Saloon
o Morso Log Burner
o 2 x radiators 116 x 63cm
o TV
o Shelving
o Access to underfloor storage
o Carpeted
Other
o Large under stairs storage, tool cupboard
