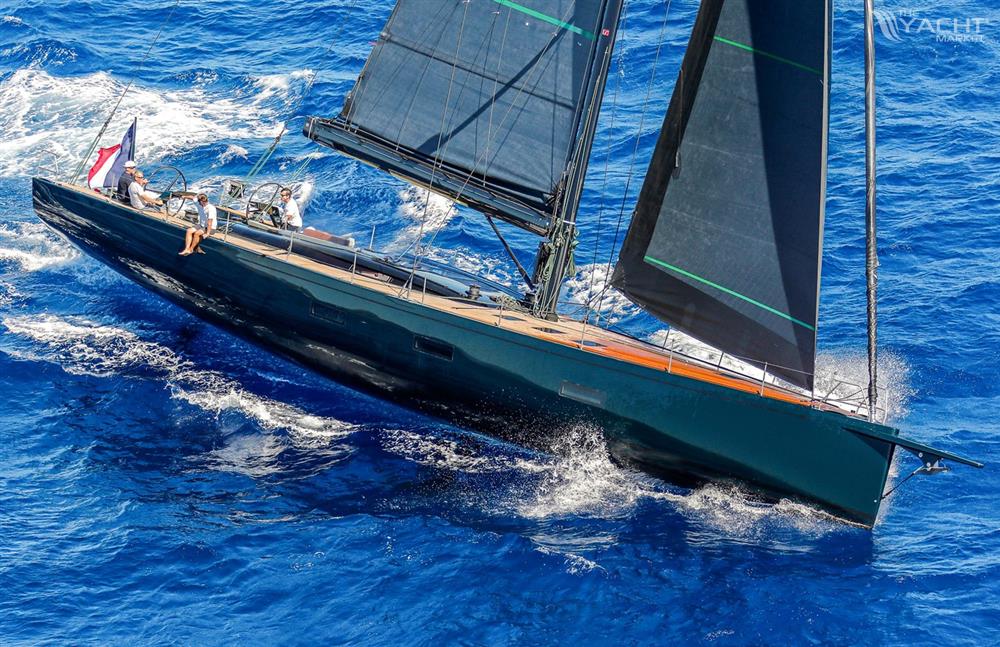

MYLIUS YACHTS Mylius 80 FD for sale (2020) in Marseille, France

CARBON ARROW 3 is hull number 2 of the Mylius 80 FD series. She has not been raced, only lightly cruised. She is very highly specified, with a Hall Spars high modulus carbon mast, EC6 rigging, Grand Prix Harken winches, and a blue water spec including a water maker and large fuel capacity. Painted in a dark green, with neutral tones, carbon, and teak highlights below, she offers a boutique-style interior and large capacity with 5 cabins, including separate crew accommodation.

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean”

Hull, Deck & Superstructure Construction:

• Hull and deck lamination - carbon fibre sandwich, wet layup, vacuum-packed.
• Sandwich core - Corecell.
• Through hull fittings - Trudesign skin fittings, recessed painted.
• Other (hull) - Flash recessed ground plate.
• Footstep - teak.
• Headstay chain plate - jib furler, flanged on deck.
• Backstay chain plates - carbon fibre, made for double running backstay.
• Hull painting - Awl Craft SE - Timeless Green.
• Deck painting - Awl Craft SE - Timeless Green L4008 on deck and cockpit.
• Awl Craft SE - Super Jet Black L2011 on coach-roof.
• Antifouling - Sibelius Stoppani, spray painted.
• Other (finishing details) - 1 black water line 8 cm thick, painted 7 cm far from antifouling: 1 cove stripe, black painted.
• Teak - on side decks, fore deck, cockpit sole and seats (10 mm), vacuum bonded using epoxy; caulking black.
• Teck covered transom door.

Keel & Rudder:

• Weldox 700, CNC milled keel.
• Single rudder.

Machinery

Engine & Gearboxes:

• Engine - Yanmar 4LV - 230 hp four stroke, vertical, water-cooled diesel engine.
• 199.8 hours – June 2024.
• Gearbox - ZF63A with shaft disk brake.
• Insulation - Recombi Recytex W1300 + perforated sheets, white painted with round hole.
• Shaft drive.
• Command-Engine interface - San Giorgio S.A.I.N...
• Command lever - Ultraflex.
• Engine panel - Yanmar on cockpit side.

Propulsion & Steering:

• Carbon steering wheels.
• Bow thruster.
• Steering Pedestals - Made of carbon fibre, with one handrail, without stainless steel junction and no side moving part. Painted as same as hull and deck.
• Steering wheels - 2x 1200 mm Carbon Look Exit Engineering.
• Solimar steering system - Z12 pinion on steering wheels, 008CRA2150S sheaves, system Z17 - Z13 and carbon fibre quadrant R550.
• Carbon emergency tiller.
• Retractable bow thruster - VIP 250 24V.
• Steering column keys - Backlit and anti-vandal buttons, 19 mm IP67 BePositive; stainless steel or titanium panel.
• Propeller - GORI 4 foldable blade 25x17x4 RH.

Other Mechanical Equipment:

• PLC controlled hydraulic power pack.

Electrical Systems

Voltage Systems:

• 220V sockets - 1 linear 10 A always on + 1 linear 16A Shore/Gen only. In all cabins.

Battery Banks:

• Lithium batteries: Mastervolt MLI Ultra 24V 180 Ah X 5 = 900 amp.
• Service batteries - 5 x MLI Ultra 24/5000 180Ah (4 per services + 1 per electronics).
• Engine battery - 2 x Optima Blue Top 12V 50 Ah.
• Generator battery - 1 x Optima Blue Top 12V 50 Ah.

Battery Chargers:

• Inverter/battery charger - 2 x Mass Combi Ultra 24/3500W – 100 A.
• Inverter Yes (air cooled).
• Mastervolt Combimaster 24/3000 60.

Alternators:

• Alternators - Yanmar 12V 130 Ah / Mastervolt 24V 150 Ah.

Generator:

• Generator Fischer Panda 15000i with steel box.
• Generator panel Switch control only on nav. station.
• Generator hours 114.5 June 2024.

Shore Power:

• Shore power - 63 Amp.

Other Electrical:

• Galvanic isolation - Zeus Toroidale.
• Lightning rod - Si.

Plumbing Systems

Water & Water Heating System:

• Dialysis filter.
• Boiler 220 V Quick 2 x 40 l.
• Water intake plug.

Watermaker:

• Watermaker Dessalator AC Pro Auto 200l/h 230V.

Bilge Pumps:

• Sail locker pump Whale 2 x Orca 1300.
• Living zone pump Centralised system + Osculati Bronze self-priming impeller pump - 75 lt/min.
• Engine room pump Handerson 75l/min.
• Lazarette pump Whale 2 x Orca 1300.

Tankage

• Dialysis filter.
• Autoclave Marco UP6/E DX.

Fuel:

• Fuel tanks 2 x Merin 508 lt.
• Diesel filter pump between tanks.

Fresh Water:

• 1,000 litres (220 Gallons).

Grey/Blackwater Holding Tanks:

• Black water tanks - 4 x Vetus 25 lt bulkhead mounted.

Navigation Equipment

• Hydra package, and radar.
• Core Package - B&G H5000 Hydra package + WIFI-1.
• H5000 GFD inside - 1 x Czone 10" at nav. station, 1 x Czone 5" in crew cabin (backup as same as Mr Dreau for key functions).
• Displays on steering columns 2 x B&G H5000 graphic displays.
• Chart plotter at nav station B&G Zeus³ 19” Glass Helm.
• Chart plotters on steering columns - B&G Zeus³ 9”.
• VHF - B&G V60 + H60 wi-fi.
• Autopilot - B&G H5000 pilot computer & controller.
• Wind Station - B&G MHU 1050 mm.
• Speed and depth sensor - H5000 sensor.
• Displays at mast - Yes, 4 x Garmin displays.
• GPS antenna - B&G ZG100.

Domestic Equipment

Heads/Showers:

• WC owner - Tecma elegance short 2G (Carbon look).
• WC guests - Tecma elegance short 2G.
• WC crew - Tecma elegance short 2G.

Heating & Ventilation:

• Climma Air conditioning system.
• Blinds and screens on deck hatches.
• Hull windows - 3 per side, with Oceanair "blackout" blinds.
• Nr. of hatches 8 x deck - 3 x cockpit - 4 x coachroof coamings.
• Hatches blinds - OceanAir "Blackout".
• Companionway - Plexi + composite.
• Cockpit portlights - 8 x Lewmar (6 x mod. 4 + 2 x mod. 1).
• Cockpit portlights - blinds OceanAir "Privacy".
• Air conditioning system - One central water-circulation air conditioning system with independent climate control in each cabin and saloon.
• Chiller - CWS Inverter DC50 - 50000btu/h.
• Owner's cabin fan coil - 2 x FCV5 Quattro.
• Owner's head fan coil.
• Dinette fan coil - 2 x EVA9.
• Guest's cabins fan coil - FCV5 Quattro.
• Galley fan coil - EVA7.
• Crew cabin fan coil FCV25 Quattro.

Entertainment:

• TV - LED TV 32” with Glomex antenna.
• Hi-Fi system - Fusion Apollo 7770.
• Music Speakers – Fusion.
• External stereo speakers - 2 x B&G 6"colour matched.

Lighting:

• High and medium LED strip.
• Low LED strip IP65 waterproof.
• Spotlights in headliners.
• Reading lights on each berth.
• Navigation lights LED Lopolight.
• Spreader lights - 1 Down.
• LED boom light over cockpit table.

Accommodation

Summary of Accommodation:

• 5 Cabins.
• Berths - 9 (6 in 3 cabins + 3 crew).
• Heads - 4 (3 + 1 crew).
• Painted interior colour – White - RAL 9003.
• Furniture veneer Teak.
• Floorboards Teak veneered.
• Saloon Upholstery finished in soft charcoal fabric.
• Fore saloon bulkhead finishing white painted.
• Aft saloon bulkhead finishing Carbon look.
• Fore owner cabin bulkhead finishing Carbon look.
• Aft owner cabin bulkhead finishing Carbon look.
• Longitudinal bulkhead finishing white painted.
• Hallway bulkhead finishing - covered with Ultraleather stripes (4 stripes), from the saloon to the mast; the sliding doors are white painted.
• Fore guest cabin bulkhead finishing Carbon look.
• Aft guess cabin bulkhead finishing white painted.
• Crew cabin finishing white painted.
• Access steps - Carbon Look.
• Handrails - Carbon Look custom Mylius.

Description of layout:

Saloon:

• Two symmetrical "L" shaped sofas on sides, upholstered in soft charcoal fabric.
• Dining area is located starboard with one table, wooden top, and carbon look support.
• One coffee table on port side with wooden top and carbon look support.
• The navigation station is located on starboard.
• Shelves on both sides with carbon look finishing and stainless-steel fittings.
• Wine cooler - 2 x Frigonauta Wine Cooler with two different temperatures for wine and red wine in teak cabinet on port side.

Galley:

• Stainless steel galley top.
• Fridges - Fridge 135 LT.
• Freezer - Yes, Freezer 80 LT.
• Siemens custom stainless-steel gimbal cooker, 60 cm wide, with electrical oven and induction hob and integrated microwave.
• Extractor hood - CEM Air blower.
• HydroTap Zip to have instant filtered, boiling and chilled water.
• Stainless steel worktop.
• 4 x opening hatches to cockpit side.
• 2 x overhead opening ventilation hatches to deck coaming.
• Airconditioning.
• Access to technical lockers.

Nav. Station:

• On starboard side, there is the navigation station with a teak desk with chart storage and accessories.
• The reclining seat, fixed on the hull, is made of a cylindrical pillow upholstered in soft charcoal finish and stainless-steel supports and fittings.
• The large panel for displays and instruments.
• Flexible light.

Owner's Cabin:

• Two large beds placed on both sides with a storage underneath each, two white painted wood finish closets on each side at the entrance on the cabin and two lower teak drawer cabinets forward.
• Port and Starboard air conditioning outlets with independent controls.
• Shelves on both sides with carbon look finishing and stainless-steel fittings.
• USB charging points on both berths.
• 220v sockets on both berths.
• Large berth level hull windows on both sides.

Owner Bathroom:

• Custom carbon look washbasin at port side, with a wooden cabinet underneath and hanging cabinet with mirror on shutters.
• Overhead recessed Rain shower
• On starboard is located WC and cabinet with mirrors.
• The shower box is forward with two seats in composite, on each side with teak grating.
• Stainless steel shower fittings with a brushed finish.
• Tecma Carbon toilet.

Guest Cabins

• Two twin guest cabins, placed forward of the saloon.
• The entrances are through the sliding doors from the main hallway.
• Both cabins have two single beds with storage underneath and a night table in between.
• There is a closet forward of the beds.
• Shelf above the side bed (same finishing as the saloon).
• Large hull windows at berth level.
• Air conditioning controls.
• Overhead opening deck hatch.

Guest Bathroom:

• Both guest cabins have en-suite heads.
• Outboard there are toilets and hanging cabinets, a closed shower box on the inboard side and forwards a carbon look washbasin with mirror and drawers with storage underneath.
• Opening deck hatch above.
• Stainless MGS fittings.

Crew Cabin:

• Two crew cabins are located at aft on the starboard side.
• One has two bunk berths on side and the other captain’s cabin one a large bed with lockers and a shelf on side.
• In the crew hallway there are two laundry lockers.
• All cabins have air conditioning.

Crew Bathroom:

• The crew bathroom is provided with a toilet, shower and a carbon look washbasin, wooden cabinet underneath the top and hanging cabinet with mirror on shutters.

Deck Equipment

Rig:

• High modulus Hall Spars carbon mast.
• Hall spars sculpted rack boom.
• Ec6 carbon standing rigging.
• 5 x Internal locks = 1 spinnaker, 1 Code 0, 1 fractional Spinnaker, 1 jib, 1 staysail (external lock).
• 1 x Main sail lock (Karver locking track and car only full hoist).
• Mast upgrade for deflectors.
• Extra-long hydraulic cylinder for deflector (outside the mast).
• Reckmann UD-4 SCTC hydraulic jib furler, with jib luff adjustment, plus EC torque headstay including Reckmann UD-4 TTS-4L.
• Titanium top swivel, with eye to connect toggle to the upper end, SWL = 40t.
• Reckmann SF8 under deck hydraulic tensioner for staysail.
• Vang quick release at helms feet.
• Maffioli running rigging SK78 – all in green.
• Tack lines - 2 tack lines below deck.
• Bobstay - 1 x 2:1 racing asset through bowsprit - 1 x cruising bobstay.
• Bowsprit - tack lines 2 recessed stoppers next to the mast, below deck circuit.
• Mast track - Harken battcar with switch system.
• Reef lines - 2 reefs - Double pad eye for single line reefing system.
• Backstay - Double EC6 backstays.
• Inner forestay.
• Mainsail sheet system German system with recessed traveller track.
• Jib tracks Transverse tracks.
• Custom Jib lead cars.
• Jib car adjustment in/out to winch in the cockpit & Up/Down hydraulic.
• Control unit Cariboni PLC controlled hydraulic power pack.
• Functions - 1 x Outhaul - 1 x Vang - 1 x Cunningham - 2 x Hydraulic Furler - 2 x Stays adjuster - 1 x Jib Tack - 1 x Deflector - 1x Transom - 1 x Winch Halyard - 1 x Up/Down.

Winches:

• Harken Grand Prix carbon-top electric winches (upgrade vs. standard electric).
• Winch for backstay 2 x Harken 990 electric.
• Primary winches 2 x Harken Grand Prix 1111 (1 RH, 1 LH) Electric
• Mainsail winches 2 x Harken 990.3 ST 24V. Electric.
• Halyard winches.
  1. 1 x Harken 990.3 ST AAC FD 24V.
  2. 1 x Harken 990.3 ST AAC FD Hydraulic.

• Backstay winches.
  1. Harken 990.3 ST AAC LH 24V.
  2. Harken 990.3 ST AAC 24V.

• Winch handles 4 x Harken.

Sails:

• Square top main sail setup and double backstay in Kevlar.
• North 3Di sails (carbon).
  1. Square Top Mainsail, 2020, 3Di Endurance 780.
  2. Furling Jib, 2020, 3Di Endurance 780.
  3. Inner Jib, 2020, 3Di Endurance 780.
  4. TMT, 2020, 3Di Endurance 760.
  5. Code 65, 2020, 3Di Helix 700.
• Sail Plan:
  1. P 30.80m.
  2. E 10.30m.
  3. I 30.00m.
  4. J 9.10m.
• Sail Area:
  1. Square top mainsail 205 m².
  2. Jib 150 m².
  3. Gennaker 535 m².
  4. A-0 350 m².
  5. Total Upwind 355 m².
  6. Total Downwind 740 m².

General:

• Handles on coachroof in carbon look with inox fitting (couple).
• Swimming ladder.
• Transom ladder.
• Transom door opening with push button control on wired remote control from port aft locker.
• Two lock handles.
• Pulpits - Custom Mylius stainless steel diam. Ø 30mm.
• Cockpit table - with folding wings in teak and composite (same colour as deck), carbon legs.
• Flagpole - Yes, carbon look.
• Handrails on deck - 2 x carbon look + stainless steel fittings on coach-roof; 1x Stainless steel on deck between hatches.

Anchoring & Mooring Equipment:

• Ultra anchor 60kg and swivel.
• Cleats bow and stern - 4 x Seasmart folding cleats.
• Cleats amidship - 2 x Seasmart folding cleats.
• Cleats in cockpit - 2 x Seasmart folding cleats.
• Windlass - Lewmar V6 24V.
• Windlass controller - Wired controller and at starboard helm.
• Anchor swivel - Ultranchor 12 mm.
• Chain - Calibrated galvanized ø 12 mm x 100 mt.
• Bow mooring winch - Harken Mooring retractable winch 1200.
• Other (mooring) Stainless steel anchor's bracket.

Covers, Canvas & Cushions:

• Sprayhood.
• Canvas covers.
• Light sage green cockpit cushions.
• Full cockpit bimini on boom rails to top lifeline.

Tender & Outboard:

• Highfield 3.4m Aluminium RIB tender.
• Honda 25Hp outboard on folding bracket.

Safety Equipment

• Lifelines - Stainless Steel.
• Ship EPIRB.
• Liferaft.
