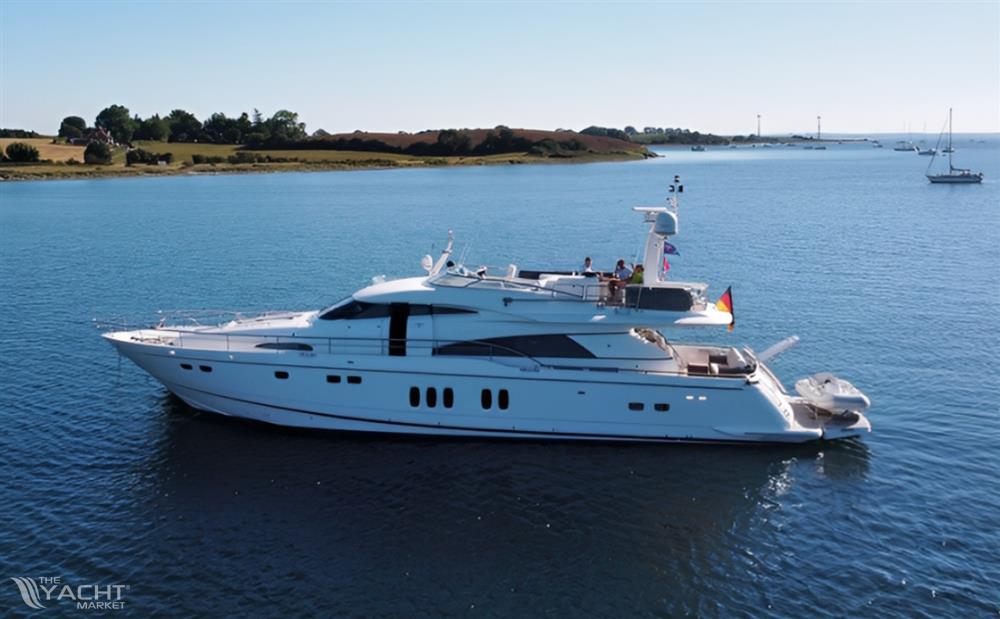

Fairline Squadron 74 for sale (2005) in Kiel, Schleswig-Holstein, Germany

The award-winning FAIRLINE SQUADRON 74 is the ultimate expression of Fairline's heritage, craftsmanship, and engineering excellence. With her deep-V hull, the FAIRLINE SQUADRON 74 offers exceptional stability and control at sea, ensuring smooth and confident sailing in all conditions. Built in fibreglass, this motor yacht was designed by renowned Bernard Olesinski.

Launched in 2005, this fine example of the FAIRLINE SQUADRON 74 motor yacht for sale, is very well maintained, has a responsible and knowledgeable Owner, and has benefited with several recent updates and upgrades.

Her elegant exterior lines are matched by an interior that radiates elegance: open-plan living areas, panoramic windows, and bespoke details create an atmosphere of refined comfort while her spacious saloon provides generous accommodation for extended cruising or entertaining in style.

This FAIRLINE SQUADRON 74 motor yacht offers luxurious and comfortable accommodation for up to 8 guests in 4 cabins, including a full-beam Master cabin with huge en-suite bathroom, a VIP cabin with double bed and en-suite bathroom and 2 equally sized twin cabins share the third bathroom with shower, one of the cabins with direct access. Separate access is also provided for the crew cabin for 2.

Powered by twin 1550 Hp CAT Diesel engines, she can reach a top speed of 31 knots, while comfortably cruising at 24 knots.

The technology on board is cutting-edge, with advanced navigation, integrated digital controls, and intuitive helm stations enhancing both safety and simplicity. The flybridge provides the perfect retreat with sun loungers, a bar, and an alfresco dining area, while the swim platform has been extended and carries the hydraulic up/low feature for easier tender launching and recovery.

MAIN CHARACTERISTICS

• Builder: Fairline Yachts (U. K.)
• Model: Fairline Squadron 74
• Designer: Bernard Olesinski
• Type: Motor Yacht / Flybridge Yacht
• Year: 2005
• Hull Type: Deep V
• Hull Colour: White
• Hull Material: GRP
• Superstructure Material: GRP
• Decks: Teak
• Length Overall: 22.70 m (74' 6”)
• Beam: 5.70 m (18’ 8”)
• Minimum Draft: 1.61 m (5’ 3”)
• Dry Weight: 46,250 kg (101,964 lb)
• Half Load: 44,900 kg (98,988 lb)
• Flag of Registry: German
• Location: Kiel, Germany

HULL FORM AND CONSTRUCTION

• All gel coat and glass fibre hand laid with unidirectional, biaxial and woven rovings
• Bow thruster (hydraulic) 25hp
• Deep V forward; 18 deg. deadrise aft
• Designed by Bernard Olesinski and the Fairline design team
• Full length moulded spray deflector
• Hull/deck join bolted and bonded Integrally moulded engine bearers
• Isophthalic gel coat backed by isophthalic resin-rich powder-bound glass mat
• The deck incorporates polyurethane foam cores for high strength and excellent thermal insulation
• The integral bathing platform gives the boat a longer waterline length for improved performance, particularly at reduced power settings
• The propellers are set in semi-tunnels enabling the engines to be located further aft, also reducing draught and improving efficiency by reducing the shaft angle
• Transverse and longitudinal strengthening stringers throughout hull

PROPULSION

• Type / Fuel: Twin Diesel
• Main Engines: 2 x 1550 Hp (1156 kW) CATERPILLAR C30
• Engine Hours: 1710 h (Sept. 2025)
• Engine Type: Inboard
• Drives: 2 x High corrosion-resistant TEMET shafts with dripless shaft seals
• Maximum Speed: 31 knots
• Cruise Speed: 24 knots
• Propellers: 2 x Large diameter contra-rotating manganese bronze propellers
• Trim Tabs: Flaps

TANKAGE

• Fuel Capacity: 5,892.62 l (1,556.66 USG)
• Fresh Water Capacity: 1,140.12 l (301.18 USG)
• Holding Tanks: 2 x For a total capacity of 385 l (101.7 US Gallons)

ACCOMMODATION

• 8 Guests in 4 cabins
• Guest Cabin Configuration:

  • Beam-wide Master cabin with double island bed, couch, walk-in dressing room and en-suite bathroom
  • VIP cabin fore with double bed, closets and en-suite bathroom
  • 2 x Twin cabins port & starboard, single beds, closets and shared bathroom

• Main deck with saloon, open galley across from dining area and wheelhouse
• Crew cabin with separate access from transom with 2 beds and integrated facilities

EXTRAS

• Air conditioning throughout
• 2 x 17.5 kW ONAN generators
• Extended hydraulic bathing platform
• BESENZONI hydraulic flybridge crane
• Hydraulic telescopic retractable passerelle
• New DOCKMATE (for both engines and thrusters)
• SIDE POWER bow & stern thruster with remote controls
• Upgraded RAYMARINE navigation equipment to both helms
• Upgraded RAYMARINE engine monitoring system to both helms
• New carpet throughout
• New upholstery to saloon & Master cabin
• Flybridge upholstery (renewed 2019)
• Cockpit upholstery (renewed 2019)
• New teak to decks
• Teak laid bathing platform
• Teak laid cockpit
• Teak laid flybridge
• Teak laid side decks
• New ice maker & fridge to flybridge
• New flybridge cover
• Flybridge bimini top
• KVH TracVision
• Dishwasher

STANDARD SPECIFICATION

• Access to port and starboard side decks from lower helm
• Adjustable/Tilt steering wheel
• Aft cockpit enclosure covers
• Air conditioning/reverse cycle heating system to main accommodation
• Anchor winch (hydraulic)
• BOSE DVD/CD/Radio & Home Cinema surround sound system to saloon
• Bow thruster 25 Hp
• Calibrated anchor chain
• Dining table with Burr Elm features
• Dripless shaft seals
• Dual station VHF radio telephone incorporating intercom between lower and upper helms
• Echosounder and speedometer/distance log with sea water temperature read out
• Electrically adjusted backrest dining seating/sunbed
• Electro-hydraulic trim tabs with catholic protection
• Full width Master stateroom with triple portrait portholes port and starboard
• Fully equipped flybridge bar
• GLENDINNING cable masters
• GPS/radar/chartplotter interfaced with autopilot
• Hot and cold water transom shower
• Large walk-in shower with body jets
• LCD televisions in saloon and all main cabins
• 2 x ONAN generators 17.5 kW
• Open-plan galley with powered screen
• Remote control searchlight
• Remote control, concealed, telescopic hydraulic passerelle
• Repeat flybridge engine instrumentation, controls and electronics
• Self-stowing through-hull
• Delta anchor
• Sideboard with icemaker
• Stainless-steel pantograph windscreen wipers
• Teak-laid bathing platform
• Teak-laid bulwarks
• Teak-laid floor throughout self-draining cockpit
• Teak-laid oversize flybridge steps
• Twin independent RECARO helm and co-pilot seats with electric adjustment

DECK

• 12V weatherproof socket
• Anchor chain locker
• Anchor winch controls
• Calibrated anchor chain
• Concealed fuel fillers port and starboard
• Deck wash points fore and aft
• External covers to windscreen
• Fairlead(s) aft
• Fender stowage
• Full set of IMCO navigation lights
• Grab rail on each transom wing
• Hot and cold water transom shower
• Hydraulic anchor winch
• Recessed self-draining area on foredeck with coach roof sun cushions and adjustable backrests
• Remote control searchlight with controls at both helm stations
• Removable stainless steel guardrails for bathing platform
• Riding light
• Rigid swim ladder to bathing platform
• Rubbing stroke
• Self-stowing through-hull
• DELTA anchor
• Stainless steel bow fairlead(s) and mooring drums aft
• Stainless steel bow, spring and stern cleats
• Stainless steel handrails
• Stainless steel hull protection plate under bow
• Stainless steel pantograph windscreen wipers
• Stainless steel pulpit
• Teak-laid bathing platform
• Teak-laid side deck
• Teak-laid bulwarks
• Transom gate from cockpit to integral bathing platform
• Twin horns (new)
• Water fillers to port and starboard
• Windscreen washers

FLYBRIDGE AND SECOND HELM POSITION

• 12V weatherproof socket
• Access via stairway from wheelhouse and by teak stairway from cockpit
• Acrylic dodgers
• Adjustable/tilt steering wheel
• Bilge pump switches with integral operating warning lights and audible alarms
• Bow thruster controls
• Companion seating to helm
• Windscreen for helm
• Dedicated dining seating with large teak table
• Drinks holders
• Echosounder and speedometer/distance log repeaters with sea water temperature read out
• Electrically adjusted backrest creating extended sunbathing deck
• Electronic single-lever throttle and gear controls
• Ensign and staff
• Flybridge bar with new refrigerator, new icemaker, sink and electronic griddle
• Helm position indicator
• High speed magnetic compass
• Instrument covers
• Large sunbathing area aft with non-absorbent foam filled cushions
• Liferaft stowage
• Open scanner radar to mast
• Powered steering
• Remote anchor winch controls
• Repeat autopilot controls
• Repeat engine bay fire extinguisher controls
• Repeat flybridge engine instrumentation, controls and electronics
• 3 x New RAYMARINE monitors
• Repeat radar/chartplotter display
• Searchlight controls
• Stainless steel handrails
• Teak-laid flybridge deck
• Teak-laid oversize flybridge steps
• Trim tab controls
• Twin radar masts with down-lighting
• Two forward facing helm seats
• VHF Radio telephone incorporating intercom to main helm
• Wind-deflecting screen

AFT COCKPIT/TRANSOM

• Access hatch to engine room
• Aft cockpit enclosure covers
• Bathing platform lights
• Blue LED lighting to cockpit
• Dockside television and phone inlets
• Emergency boat shutdown switch
• Emergency fuel shutoff valves
• Fender stowage
• Low-level lights and lights under flybridge overhang
• Manual bilge pump access
• Remote control, concealed, telescopic hydraulic passerelle
• Service corridor accessed via cockpit and transom door
• Solid teak handrail surround
• Stainless steel framed sliding door to main saloon
• Teak-laid floor throughout self-draining cockpit
• Various cockpit lockers
• Warp lockers

MAIN HELM POSITION

• 12V socket
• Access from helm to deck via 2 electrically locking side doors
• Adjustable air conditioning vents
• Adjustable tilt steering wheel
• Bilge pump switches with integral operating warning lights and audible alarms
• Bow thruster controls
• Centralised vacuum cleaning system for lower and upper decks
• Chart stowage
• Chartable and light
• Controls far engine bay fire extinguisher system
• Domestic water management system
• Drinks holders
• Echosounder and speedometer/distance log repeater with sea water temperature read out
• Electronic single-lever throttle and gear controls
• Engine diagnostic system
• 2 x New RAYMARINE monitors
• Foghorn with siren and loudhailer facility
• Full engine instrumentation including; tachometers, oil pressure gauges, temperature gauges and battery condition indicators, audible alarms and engine hour meters
• GPS/radar/chartplotter interfaced with autopilot
• Helm position indicator
• High speed magnetic compass
• Powered steering
• Red night-light illumination to helm
• Remote anchor winch controls
• Searchlight controls
• Teak and holly floor
• Trim tab controls
• Twin independent RECARO helm and co-pilot seats with electric adjustment
• VHF Radio telephone incorporating intercom to upper helm

PORT HELM STATION

• Granite counter
• Extending chart table
• Helm extension for additional equipment installations
• Seat base stowage
• Timber flooring

MAIN SALOON

• Drinks cabinet complete with crystal glasses
• Full-height standing headroom
• LED ceiling lights
• Luxurious saloon appointments including 30" LCD television and state-of-the-art BOSE surround sound DVD/CD/Radio built into a tailor-made entertainment centre
• Overhead handrail
• Reading chair(s) (new upholstery)
• Sideboard with icemaker
• Sofa (new upholstery)
• Table lamps
• Wall-mounted bar unit

DINING ROOM

• Dining privacy from helm provided by panelled partition
• Dining table with Burr Elm features
• Freestanding chairs
• 6 x LED ceiling lights
• Serving window from galley

GALLEY

• Crockery stowage
• Cutlery drawer
• Dedicated freezer below countertop
• Dedicated refrigerator below countertop
• Dishwasher
• Electric ceramic/halogen hob (4 burner)
• Microwave-oven
• Extractor fan
• LED ceiling lights
• Lacquered cupboard doors
• Open-plan galley with powered screen
• 2 x Sinks with hot and cold mixer tap
• Teak and holly floor
• Trash compactor
• Worktop lights

MASTER STATEROOM

• Access to en suite shower room/heads
• Bedside stowage
• Drawer(s) under bed
• Full width Master stateroom with triple portrait portholes port and starboard
• Full-height standing headroom
• LED ceiling lights
• Home cinema
• Surround sound CD/Radio/DVD
• King-size double bed with interior sprung mattress
• LCD television 15"
• Mirror reading lights
• Recessed bookshelves
• Sofa (new upholstery)
• Twin bedside tables
• Vanity unit/bureau with chair
• 240V power, telephone and inverter points

MASTER EN-SUITE DRESSING ROOM

• Built-in security safe
• LED ceiling lights
• Hanging rails and drawers to optimise space
• Mirror

MASTER EN-SUITE BATHROOM

• 220V/240V shaving point
• Bidet
• Extractor fan
• Freshwater vacuum flush toilets (new pumps)
• Full set of bathroom fittings
• Full standing height shower stalls with solid teak gratings and hinged glass door
• LED ceiling lights
• Large walk-in shower with solid teak gratings and body-jets
• Mirror
• Twin portrait portholes with flyscreen
• Vanity unit with twin pedestal glass washbasins

FORWARD STATEROOM

• Access to en suite shower room/heads
• Bedside stowage
• Built-in security safe
• CD/Radio
• LED ceiling lights
• King-size double bed with interior sprung mattress
• Large hatch with flyscreen and concealed blinds to foredeck
• LCD television 13"
• Mid-level port and starboard lockers
• Mirror
• Reading lights
• Stainless steel opening porthole(s) with flyscreen
• Wardrobe(s)

STARBOARD GUEST CABIN

• Bedside stowage
• CD/Radio
• Drawer(s) under bed
• 2 x Full length berths with interior sprung mattresses
• LED ceiling lights
• LCD television 13"
• Lockers (mid-level)
• Mirror
• Reading lights
• Stainless steel opening porthole(s) with flyscreen
• Wardrobe(s)

PORT GUEST CABIN

• Access to en suite shower room/heads
• Bedside stowage
• CD/Radio
• Drawer(s) under bed
• 2 x Full length berths with interior sprung mattresses
• LED ceiling lights
• LCD television 13"
• Lockers (mid-level)
• Mirror
• Reading lights
• Stainless steel opening porthole(s) with flyscreen
• Wardrobe(s)

FORWARD EN-SUITE/SHARED GUEST BATHROOM

• 220V/240V shaving point
• Extractor fan
• Freshwater vacuum flush toilets (new seals)
• Full set of bathroom fittings
• Full standing height shower stalls with solid teak gratings, seat and hinged glass door
• Mirror
• Skylight
• Stainless steel opening porthole(s) with flyscreen
• Vanity unit with pedestal washbasin(s)

AFT CREW CABIN

• Clothes washer/dryer
• En suite extractor fan
• 2 x Full length berths (new mattresses)
• Hanging locker (half-height)
• En-suite shower/heads facility (new water and waste pumps)

AIR CONDITIONING

• Adjustable air vents to all upper-level living accommodation
• Air conditioning unit to aft cabins
• Air conditioning/reverse cycle heating system to main accommodation including screen demist to lower helm
• Digital controls to all air handlers

HYDRAULIC SYSTEM

• Centralised hydraulic system (garage door rams/tender winch/passerelle/transom door/bow thruster and windlass)

ELECTRICAL SYSTEMS

• All 12V equipment supplied from separate battery
• All 240V, 24V and 12V circuits (where applicable) protected by circuit breakers with main electrical load control panel
• Emergency boat shutdown switch Heavy duty circuit breakers Isolating switches to all batteries
• Remotely and manually operated isolating switches for all batteries
• 12V Circuit: Battery charger 60 amp 120Ah (new)
• 24V Circuit: 24V-12V 20 amp converter (new VICTRON)
• Battery isolating switches located in service corridor
• Emergency battery coupling system permits each engine to start from opposite engine battery bank
• Batteries 4 x 210Ah capacity for domestic services (new)
• Batteries 4 x 200Ah exclusively for starting each engine (new 2021)
• 240V power points throughout the boat (fed from shore power or generator)
• Battery charger 75 amp (new VICTRON)
• GLENDINNING cable masters with twin 63 amp x 100ft shoreline sockets stowed in drums
• Isolation transformers 2 x 18KvA each with soft starts
• 2 x ONAN generators 17.5 kW with through-hull exhausts
• Regulated charger 100 amp with 2 x 3 amp slave to port and starboard batteries
• 5000W inverters (new VICTRON)

ENGINES AND STERN GEAR

• Access through cockpit floor hatches to engine bay and service corridor
• All Stern gear, engines, fuel tank(s) etc. electrically bonded
• Automatic engine bay fire extinguisher system with warnings at both helms
• Automatic high capacity bilge pumps for forward bilge, engine bay and rudder bay
• Cathodic protection
• Dripless shaft seals
• Electro-hydraulic trim tabs with cathodic protection
• Engine bay lights
• Engine room soundproofing
• Exhaust overheat warning system
• High capacity emergency manual bilge pump system with changeover valves
• High corrosion-resistant TEMET shafts
• Large diameter counter-rotating Manganese Bronze propellers (new 2024)
• Lever sea cocks on all inlets and outlets located less than 15cm above the waterline
• Manganese Bronze 'P' brackets and rudders
• Reverso oil change system
• Water cooled through-hull engine silencers

FUEL SYSTEM

• Fuel filler splash stop and anti-foaming device
• Fuel sight gauges
• High capacity water separators and fuel filters with audible alarms at lower helm
• Individual fillers and vents to port and starboard
• Integrated cross-over fuel system
• 2 x Marine grade alloy fuel tanks
• 2 x Self-balancing fuel filling systems

FRESH WATER SYSTEM

• Automatic, pressurised supply with manual 'OFF' override switch at lower helm
• Calorifier hot water system
• Shore power immersion heater 2kW 240V
• Water tanks

WASTE WATER SYSTEM

• Automatic tank discharge with manual override
• Holding tank for aft cabin (8 Gallon/10 US Gallon - 37 l capacity)
• Holding tanks x 2 (101.7 US Gallon - 385 l) total capacity

TENDER

• TBD
