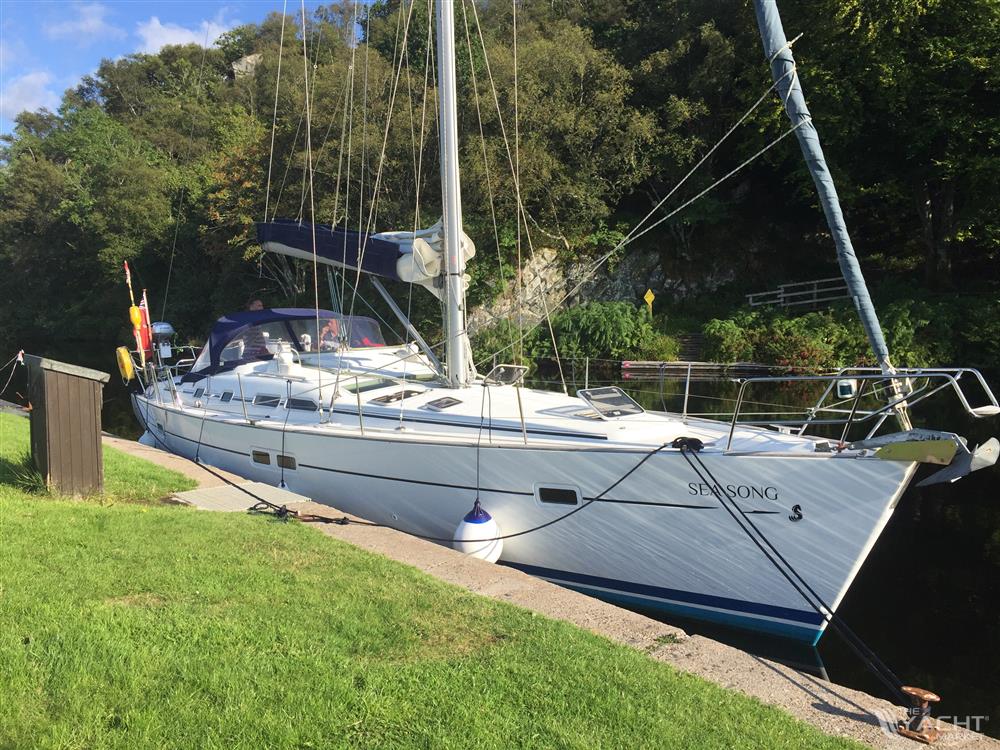

A rare opportunity to acquire one of these superb vessels that has been meticulously maintained and is ready for new owners to walk on board and immediately sail off to wherever the fancy takes them. Sea Song is well designed and offers three substantial double berth cabins, further berths available within the saloon if necessary. She also has three heads which offers a far greater degree of privacy particularly when on extended voyages.
The joinery remains very good, finished in mahogany and sapele hard wood veneers with natural hard wood trims, all with a finish that belies the vessel's age. The soft furnishings are also good with the sofas finished in a lightly patterned blue material.
The layout optimises the space and, aside from the three cabins and heads, provides for a very comfortable saloon with large dining table and island sofa unit, a linear galley is ranged on the port side making on board entertainment particularly enjoyable.
Please note that further photographs will be added at a later stage.
Construction
Sea Song is well constructed of two main modules forming the hull and deck structures, these are supported internally by an internal structural matrix bonded to the hull moulding and fitted with bonded in plywood bulkheads and internal grp modules. Both the topsides and the deck are of sandwich construction utilising a core of end grain balsa. The vessel is well constructed and strongly built yet she retains the correct degree of flexibility so necessary for a grp hull to function properly.
The fin keel is of cast iron construction secured with stainless steel studs, the weight of this ballast keel is in the region of 2.7 tonnes.
Machinery
Sea Song is fitted with a very reliable four cylinder Yanmar 4JH4E marine diesel engine developing 54 hp at 3000 rpm and giving a cruising speed of around 7 knots. This engine has been serviced annually, every March, and has been very well maintained. Gearbox, exhaust elbow, and engine mounts were all replaced during the winter of 2016/17.
Fitted with a traditional shaft drive enclosed within a stern tube, a water cooled stern gland and an outer casting housing the cutlass bearing, this was last replaced in 2016.
Steering is by Goiot and is wheel activated using quadrant and cables, an emergency steering tiller is provided.
Honda 2.3 four stroke outboard purchased in 2019.
Electrical Systems
Sea Song is fitted with both 240 and 12 volt circuitry. The 240 volt system utilises shore power, when available, or can be provided by an1800 watt inverter by Sterling Power.
The 12 volt supply is provided from two battery banks, one utilising a single 75Ah starter battery for the engine (new in 2025), the second bank consists of three 75 Ah gel type leisure batteries all new in 2017. All batteries are charged from the engine when it is running or via a Victron Blue Power battery charger when connected to shore power, the charger was fitted new in 2016. The whole 12 volt system utilises a Mastervolt BTM-1 Battery monitor system.
Navigation and communication
This is a comprehensively equipped vessel with most of the navigation aids upgraded within the last few years. She is fitted (2024) with a Raymarine Element 7s chart plotter, Raymarine ST60+ tridata unit and a Raymarine P79 in hull transducer also new in 2024. Complimenting these is a Raymarine i60 wind instrument and a magnetic steering compass.
Communications are satisfied by the provision of a Raymarine Ray 54E DSC VHF base unit, fitted new in 2016, and an Entel HT series submersible hand held VHF radio also new in 2016.
Domestic equipment
The well equipped galley has the usual double stainless steel sinks complete with a hot and cold pressurised water supply delivered by a mixer tap, in addition a manual salt water tap is also provided. The cooker is a recent (2020) addition and is an ENO twin burner plus grill and oven with flame failure devices fitted to all burners. The top loading fridge/freezer was serviced and re-gassed in 2022.
Three heads are fitted one for the forward cabin, one for the starboard aft cabin and one for the port aft cabin and saloon. All are fitted with Jabsco Manual sea toilets and wash basins with hot and cold pressurised fresh water supply. There is a dedicated shower within the forward heads and mixer tap pull out showers in the aft two heads.
The whole of the accommodation is heated via an Eberspacher D5 diesel powered warm air heat heating system fitted new in 2016.
Fully pressurised hot and cold water system. Associated pumps all replaced in 2020. Fresh water supplied from two individual tanks plumbed together and giving a total capacity of 500 litres. Hot water is supplied from a calorifier heated by the engine, when it is running, or by an immersion heater when connected to shore power. Each heads unit is equipped with its own high level 40 litre holding tank, the tanks can be dropped to sea by gravity, where permitted , or vacuum discharged ashore into a dedicated receiving tank.
Deck equipment
Sea Song is a deck stepped masthead sloop rig with double swept back spreaders. The standing rigging, and all attendant deck fittings, were replaced during the winter of 2019/20. She is fitted with a Facnor SD180 roller furling system for the genoa and is equipped for slab reefing on the mainsail with mast car and track system. The main stows with a stack pack fitted with lazy jacks.
The vessel is fitted with Harken self tailing winches, 2 x 46 two speed sheet winches and 2 x 32 halyard winches, all winches were last serviced in 2023.
Sea Song carries white Dacron main and Genoa dating from 2015, both sails were serviced in 2022 and both are cleaned annually. The genoa UV strip was last replaced in 2020. There is also a storm Jib new in 2014.
Stainless steel pulpit and pushpit with double line guard wires and stainless steel stanchions all replaced in 2024. Guard wire gates are fitted aft on both port and starboard sides.
Mooring cleats are fitted forward, aft and midships.
She is equipped with a high holding power Delta bower anchor coupled to a chain and warp rode having a total length of 75 metres, anchor handling is facilitated by the use of a Quick electric windlass. A kedge anchor with rope rode is stored in the rear cockpit locker.
The vessel comes complete with sufficient mooring ropes and fenders plus a boathook.
Safety equipment
Navigation lights and steaming light all serviced and fitted with led lights in 2025, she is also fitted with an anchor light on the mast top.
Ocean Safety six person canister life raft new in 2022
EPIRB ACR GlobalFix V4 (2019)
Two horseshoe life buoys, one with light.
fire blanket
Gas alarm system
Fire extinguishers, last serviced 2023.
