The Nauticat 33 was the design that propelled Nauticat into mass production boat building. Proving to be immensely popular around the world, the model had a production run spanning almost 20 years before making way for the new Nauticat 331. The original Nauticat 33 is now a timeless classic, offering a significant amount of living space for a vessel of just 10 meters in length. Boasting internal and external helm positions along with her easily handled ketch rig, the design has found favour with cruisers and liveaboards alike.

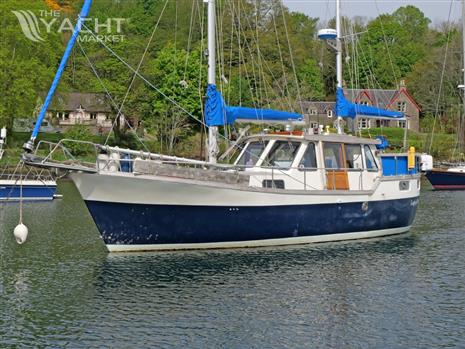

A much-loved example of this classic motorsailer, the Nauticat 33 LADY OF HARTY, has been under current ownership since 1999. Fastidiously maintained and continuously upgraded by a conscientious owner, who is now ‘swallowing the anchor,’ she has an extensive inventory, including highlights such as:
Ford Lehman 2127e marine diesel engine, fully reconditioned in 2018
Halyard marine Aquadrive coupling (2009)
New domestic and engine batteries fitted in 2022
2x Victron BlueSmart battery charger, 230vAC – 12vDC, 30amp (2024)
Schenker Smart 30LIT water maker
Francis-type search light
Furuno TZ14 plotter with Furuno digital radar scanner (2014)
Icom IC-M601 DSC VHF
AMEC Camino-201 Class B AIS Transciever (2013)
Standard Horizion HX290E handheld VHF (2015)
Plastimo Neptune 2500 gas cooker, two burner, oven and grill
Isotherm front-loading fridge with ice box
Webasto diesel-fired, blown air heating system
Lofrans Tigres electric windlass
Aquafax 3m inflatable dinghy (2018)
Yamaha 2.5hp, 4-stroke outboard
6 person cannister liferaft (serviced winter 2024/25)
EPIRB
ODEO hand held laser flare
Afloat and incommission for the season the Nauticat 33 LADY OF HARTY is available of viewing by appointment on her mooring in Ardfern.
CONSTRUCTION
Hull Construction:
Canoe sterned hull with stepped sheerline and flared bow sections
Single-piece GRP moulding
Hand-consolidated GRP laminate
Moulded long-keel
GRP formed internal structural members with plywood bulkheads
Propeller located within the aperture aft of keel
Topsides finished in navy gloss paint
Off-white gelcoat sheerband
Underwater hull epoxy coated in 2003
Finished below waterline with blue antifouling
Deck & Superstructure Construction:
GRP moulded deck integrating coachroof and wheelhouse superstructure
Hand-consolidated GRP laminate
Moulding finished in off-white gelcoat
Teak laid side decks and aft deck
Coachroof finished with laid teak panels
Large sliding sunroof in wheel house.
Sunroof Perspex replaced in 2023
Main supporting beam beneath main mast step cut out and replaced in 2017
Keel & Rudder:
GRP moulded long keel with encapsulated ballast
Full-depth rudder hung on skeg as part of keel
MACHINERY
Engine & gearbox:
Ford Lehman 2127e marine diesel engine
90hp
4 cylinder, naturally aspirated, indirectly cooled.
Borg Warner Velvet Drive hydraulic gearbox
Single lever engine controls, dual control stations
Gauges in wheelhouse for Volts, Amps, Temperature, Oil pressure engine, oil pressure gearbox
Maintenance & Performance:
Recorded engine running hours approximately 6,245 hours (boat still in use)
Engine fully reconditioned by Specialised Engineering Services Ltd in 2018
Engine oil filter housing upgraded to spin on type filters (2024)
Stainless steel injection elbow fitted 2022
Raw water pump replaced 2022
Injection pump and injectors reconditioned in 2019
Engine mounts replaced in 2009
Propulsion & Steering:
Stainless steel propshaft
Halyard marine Aquadrive coupling (2009)
Greaser fed sterngland
Rope cutter
3 blade, bronze fixed propellor
Dual station hydraulic steering
Double acting hydraulic steering ram stripped and professionally rebuilt in 2022
Both helm station steering pumps overhauled with new seals in 2022
Autopilot:
NECO autopilot system
NECO chain drive unit
ELECTRICAL SYSTEMS
Voltage systems:
12VDC onboard power system
230VAC shore power system
Shore Power System:
Extension lead to connect to shore supply
Single 16 amp connection point
Hardwired RCD-protected system.
3 pin UK sockets, battery charger, immersion heater
Battery Banks:
Domestic Battery – 1x 12vDC, 230Ah, lead acid (2022)
Engine Battery – 1x 12vDC lead acid (2022)
Battery Monitor:
Xantrex Link 20 display
Charging:
Battery Charger #1 – Victron BlueSmart battery charger, 230vAC – 12vDC, 30amp (2024)
Battery Charger #2 – Victron BlueSmart battery charger, 230vAC – 12vDC, 30amp (2024)
Alternator:
Single engine mounted alternator
Other Electrical:
Searchlight – Francis-type search light mounted on wheelhouse roof with manual control from helm station
Windscreen Wipers – Fitted to all three forward facing wheelhouse windows with stainless steel pantograph arms. 3-speed motors.
Horn (2019)
PLUMBING SYSTEMS
Fresh Water:
Pressurised hot and cold water systems
Mixer tap in galley
Mixer tap in forward head pulling out for use as shower head
Seagull water filter with dedicated tap in galley
New fresh water pressure pump fitted in 2019
Hot water provided from Rinnai gas water heater
Water Maker:
Schenker Smart 30LIT water maker
12VDC, 30ltrs per hour
Bilge Pumps:
Manual Bilge Pump
Electric Bilge Pump – New switch fitted 2025
TANKAGE
Fuel:
Twin diesel tanks
Approximate capacity 600ltrs
Fresh Water:
Single freshwater tank
Approximate capacity 250ltrs
Tank Monitoring:
Water tank gauge
Independent gauges for each diesel tank
NAVIGATION & COMMUNICATION EQUIPMENT
On Deck:
Radar – Furuno digital radar, mounted on mizzen mast (2014)
In Wheelhouse:
Depth/Speed/Log – Authelm ST50 Tridata display
Wind – Autohelm ST50
Chartplotter/Radar – Furuno TZ14 plotter (internal battery replaced 2025) (2014)
GPS – Autohelm ST50 GPS
GPS – Garmin GPS128 standalone unit
Electric Compass – Autohelm ST50
Magnetic Compass
Communications Equipment:
DSC VHF – Icom IC-M601
AIS – AMEC Camino-201 Class B (2013)
Handheld VHF – Standard Horizion HX290E (2015)
Navtex – Furuno NX-300
DOMESTIC EQUIPMENT
Galley:
Galley Stove – Plastimo Neptune 2500 gas cooker, two burner, oven and grill
Fridge – Isotherm front-loading fridge with ice box, with dedicated 230vAC – 12vDC transformer to run off shore power supply
Double stainless steel sink
Mixer tap
Heads:
Forward toilet – Lavac manual marine toilet
Aft toilet – Lavac manual marine toilet
Wash hand basin with hot and cold tap in forward heads.
Heating & Ventilation:
Webasto diesel fired, blown air heating system
Thermostatic cabin controller
Insulated ducting throughout vessel
Outlets in forward cabin, saloon, wheelhouse, aft cabin
Lighting:
Overhead lighting throughout interior
Downlighter beneath side decks in saloon/galley
Majority of lighting units upgraded to LED fittings in 2024
Entertainment:
Stereo – Radio/CD/Bluetooth head unit (2024)
Speakers in wheelhouse
ACCOMMODATION
Summary of Accommodation:
Twin/Double cabin forward
Forward heads with wash hand basin and shower
Linear galley
Lower dinette/saloon
Wheelhouse with deck saloon seating
Master aft cabin
En-suite aft heads
Accommodation Finish:
Joinery work below of teak veneer plywood with solid teak trims
Joinery work finished throughout with varnish
Fitted carpets throughout interior
Soleboards beneath carpet finished in textured vinyl
Vinyl head lining panels
Wood effect laminate worktops.
Description of Accommodation from Forward:
Forward Cabin:
Twin V-berth with infill to create double.
Standing room between the bunks aft without infill in place.
Door between galley and passage way forward to create additional standing space in cabin when infill is in use.
Access to chain locker forward of bunk
Bin type storage lockers beneath aft ends of bunks
Forward Heads:
Located to port side of passageway forward from galley
Lavac marine toilet mounted forward, inboard
Countertop outboard with inset wash hand basin with mixer tap and shower fitting
Storage locker opposite heads to starboard with hanging and shelved storage space
Galley:
Linear galley to starboard side running aft from main bulkhead to wheelhouse
Gas cooker inset to worktop forward
Worktop space centrally
Inset, double stainless steel sink aft
Front loading fridge built-in below central worktop section.
Selection of locker storage above worktop outboard and below.
Lower Dinettee/Saloon:
U-shaped settee wrapping around table to port side, opposite galley.
Table can drop down to create infill, converting settee to double bunk
Modesty curtain to screen berth from galley
Bookshelf and storage lockers outboard of settee
Bin type storage lockers beneath settee unit
Wheelhouse:
Helm located centrally forward
Access forward from wheelhouse to starboard side of helm
Large chart table working area forward of helm, extending outboard to port
Small worksurface outboard to starboard
Navigation instrumentation mounted forward of working space and overhead
Engine instrumentation mounted overhead
Bench settee spanning full width of wheel house aft end, double seat to port with single seat to starboard, access to aft cabin between.
Fold-up table tops in front of both settees.
Sole boards lift to provide full access around engine
Master Aft Cabin:
Standing room to starboard side of cabin
Double bunk offset to port side, width extended previously.
Bookshelves mounted above bunk forward
Countertop unit wrapping around aft end of cabin and running forward on starboard side.
Stroage lockers on two levels aft of countertop
Vanity unit inset to countertop forward with wash hand basin and mixer tap
On-suite heads to starboard forward
Aft Heads:
En-suite for aft cabin.
Lavac marine toilet mounted inboard, facing forward
Hanging storage for lifejackets forward of heads
Shelf running length of compartment outboard
DECK EQUIPMENT
Rig:
Deck stepped, masthead ketch rig
Both masts and all spars made of anodised alloy
Stainless steel standing rigging
Full rigging inspection for the 2022 season
Innerforestay replaced 2021
Bobstay replaced 2021
Furlex roller reefing system serviced for 2022 season
Slab reefing mainsail
Slab reefing mizzen
Block and tackle kicker for main
Spinnaker pole, telescopic
Lazyjacks
Winches:
Primary Winches – 2x Lewmar 16, 2-speed
Mainsheet Winch – 1x Lewmar 16, 2-speed, self-tailing
Mast Mounted Halyard Winches – 2x Lewmar 16, 2-speed, self-tailing
Sails:
Mainsail – White darcron, slab reefing.
Mizzen – White dacron
Genoa – White dacron, roller reefing, new UV strip fitted winter 2024/25
Canvas Work:
Mainsail Cover – Stackpack with lazyjacks and mast boot.
Mizzen Cover – Stackpack with lazyjacks and mast boot.
Spraydodgers
Outboard cover
Anchoring & Mooring:
Bower Anchor – Bruce anchor on 60m chain and 30m anchorbraid rode
Kedge Anchor – Danforth type anchor
Anchor Windlass – Lofrans Tigres electric windlass
Fender board
Fenders – Selection
Mooring Warps – Selection
Boathook
Beaching Legs – Sectional alloy legs
Tender:
Inflatable Dinghy – Aquafax 3m with seat, oars and pump (2018)
Outboard – Yamaha 2.5hp, 4-stroke, serviced winter 2024/25
General:
Stainless steel bowspirit forward.
Bow roller for use with moorings offset to port
Built-in bow roller for anchor to starboard with anchor self-stowing in roller
Stainless steel rails running along port and starboard sides of bow spirit, leaving bow open
Stainless steel stanchions supporting laminated teak guard rail.
Guard rail boarding gates port and starboard.
Lofrans electric windlass mounted on foredeck, chain self-stowing in locker.
Teak samson posts fitted through the deck to the port and starboard sides of the windlass
Teak laid decks.
Access to wheelhouse via sliding doors port and starboard.
Search light and horns mounted on wheelhouse roof forward
Sliding wheelhouse sunroof
External helm station mounted centrally at aft end of wheelhouse
Navigation instruments mounted on pod above helm station
Nav instrumentation and engine controls mounted on pedestal
Mainsheet winch offset to starboard side of helm
Primary winches mounted on port and starboard sides of wheelhouse
Moulded GRP seat boxes secrured to deck to port and starboard sides of helm
Danforth kedge anchor secured to guardrail on starboard side
Outboard bracket just off of centreline to starboard aft
Lifreaft stowed in stainless steel cradle on starboard guard rails
SAFETY EQUIPMENT:
General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.
Navigation Lights:
Masthead anchor light (LED)
Masthead navigation lights
Steaming light
Deck flood lights (mainmast light unit fitted new 2025)
Low level navigation lights
Life saving:
Liferaft – 6 person cannister liferaft (serviced winter 2024/25)
EPIRB – (2015)
Laser Flare – ODEO hand held type (2015)
Gas Alarm – Pilot gas alarm system with dual sensors (both sensors replaced 2025)
Webbing Jackstays (2022)
DISCLAIMER
In this case we are acting as brokers only.
The Owner is not selling in the course of a business. whilst every care has been taken in their preparation , the correctness of these particulars is not guaranteed. The Purchaser is strongly advised to check the particulars and where appropriate at their expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.
This vessel is offered subject to prior sale, price change, or withdrawal without notice
