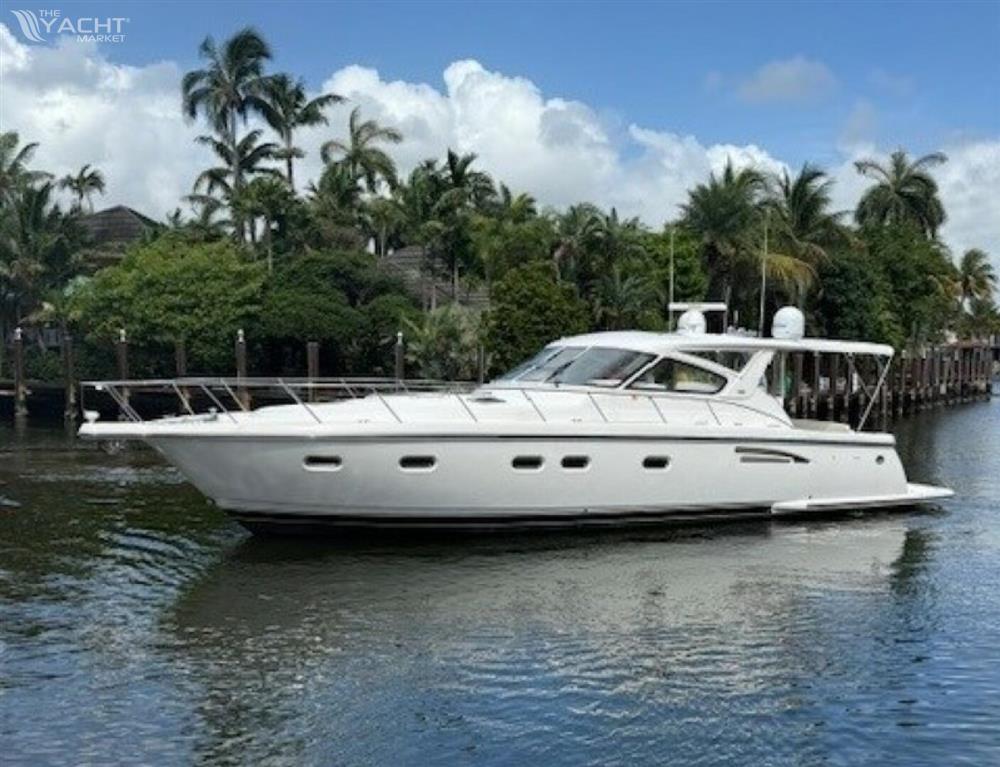

Tiara Yachts 5200 Express in vendita (2000) in Ft. Lauderdale, Florida, Stati Uniti

Bottom Job just Completed August 2025!

The Tiara 5200 Express incorporates advanced design, engineering, building, and finishing techniques to create new expectations in yacht construction. Hull fabrication involves vacuum-bagged lamination using epoxy resin instead of polyester. The process produces thinner, stronger, lighter GRP that won't absorb water, and it reduces hull weight by half. This unique process also produces strong but low-density PVC foam stringers, transversals, and balsa-cored bulkheads. Engine room access is concealed in the lower cockpit lounge seat, or the room can also be entered through the upper cockpit dropdown hatch. The large, distortion-free, curved-glass Taylor windshield panels provide uninhibited visibility astern as well as forward. The cool helm upper cockpit climate control system features two 16 ton A/C units to ensure maximum air conditioning in the hottest conditions. An optional set of forward shorepower connections are available, mounted in the chain locker to make bow-in docking an easy choice.

Refit Completed 2024/2025

IMPROVEMENTS AND UPDATES

1. Removed after deck folding tables and sealed
2. Replaced all hydraulic lines and rebuilt all hydraulic rams
3. Rebuilt hydraulic steering system and rebuilt rams and hoses
4. Serviced and resealed anchor windlass
5. Rebuilt Horn
6. Added high performance Starlink antenna and receiver system
7. Services bow thruster
8. Renewed cutlass bearings
9. Removed and serviced after oilers and heat exchangers
10. Changed drip less shaft seals to PSS
11. Balanced a tunes 4 Blade propellers at F&J.
12. Installed new underwater light
13. Aligned engines and dialed shafts
14. Services all sea cocks
15. Serviced trim tabs and updated with a new reservoir
16. Replaced ducting and blowers , and controllers on air conditioning units
17. Replaced air conditioning trays with fiberglass trays
18. Added new 16 ton air conditioning unit to pilot house. There now two units in the pilot house. 32 ton total.
19. Changed all light bulbs to LED throughout boat.
20. Added new LED deck lights
21. Added new LED anchor/Nav light
22. Replaced engine room light fixtures with LED fixtures
23. All heads rebuilt and serviced
24. Added new overboard discharge pump
25. Boat has updated faucets through
26. All pilot house windows resealed by Atlantic window
27. Replaced all Solenoids on washer/wiper system for windshield wipers
28. Replaced all wiper blades
29. Replaced all risers and exhaust system with newly manufactured risers
30. Replaced all engine mounts with new engine mounts prior to alignment
31. Replaces engine room vent screens port and starboard. Had them custom built
32. Services the Davit and had all hydraulic fitting renewed, had the cable replaced, motor services and replace all pulleys and valves
33. Both top ends of engines rebuilt with new cylinder kits port and starboard . All injectors tested and replaced if needed
34. All fuel tanks inspected and cleaned
35. Heat exchanger elbows removed and customized to fit larger zincs
36. Alternators replaced
37. All maintenance free batteries
38. Generator serviced and replaced water pump replaced .
39. All mechanical services done annually or when needed
40. All bilge and sump pumps inspected and replaced where necessary
41. KVF satellite tv system update and renewed in 2024. Fully serviced and domes replaced
42. Replaced 50 amp power cord and added a brand new cable master cable retrieval system
43. All custom bed coverings and headboard made from Schumacher fabrics
44. All dishes cutlery pots and pans included with purchase
45. Added brand new ice maker in pilot house
46. Serviced added new membranes to 700gpd water maker
47. Replaced all vinyl sea coverings and combing in cockpit
48. New Electronics package:Garmin GPS Map 8616 GPS/fishfinder
49. Garmin 743 Chartplotter
50. Garmin Reactor 40 Hydraulic core pack with smart pump &
51. GHC Auto pilot Garmin GPS antenna with heading sensor
52. Garmin Open Array Radar
53. Pedestal Garmin 200 IP engine room camera
54. Raymarine AIS VHF
55. Halon fire system, and fire extinguishers certified annually
56. Boat will have a full bottom service and new bottom paint end of July 2025
57. There multiple spare parts for most systems onboard.

ADDITIONAL UPDATES

• All house and engine batteries replaced 2023
• Bottom service 7/2025
• Both hot water heaters replaced 2020
• Both Balmar 150-amp alternators and belts replaced 2021
• Bathroom and kitchen fixtures replaced 2020
• Microwave broiler oven replaced 2020
• Cockpit icemaker NEW 2025
• Battery monitoring system added 2020
• Engine and A/C hoses replaced with blue silicone hoses
• New transmission oil coolers 2020
• 150-amp alternator, gen starter, A/C circulating pump added to cruising spares
• Watermaker overhauled 2025

FEATURES

• 10” Bow Thruster
• Upgraded 4 blade bronze propellers
• Complete mechanical service records available upon request
• Sub-Zero galley drawer refrigerator-freezers
• Upgraded audio-visual system

MECHANICAL AND ENGINE EQUIPMENT

• Twin CAT 3406E diesel engines 800hp
• Teleflex Hydraulic Steering
• Aquamet 2 ¾” prop shafts
• PSS shaft seals NEW 2025
• 4 Blade Bronze propellers 2020
• Oil Change system
• Dual Racor fuel water separators

ELECTRONICS AND NAVIGATION

• Intellian 15 21” Satellite TV Receiver with All Americas LNB
• Second Antennae Dome mounted for SAT Communications
• ARC 406 Satellite EPIRB with GPS
• Fusion Stereo below decks
• Fusion Stereo Upper Cockpits
• 4 x LCD HD TV’s for Salon and Staterooms
• HD Antennae for AOA TV Reception
• NEW Direct TV Satellite Reciever
• Starlink WiFi Receiver
• Raymarine 70 VHF AIS Radio
• Garmin GPS Map 8616 GPS/Fishfinder
• Garmin 743 Chartplotter
• Garmin Reactor 40 Hydaulic core pack with smart pump
• GHC auto pilot
• Garmin GPS antenna with heading sensor
• Garmin Open Array Radar
• Pedestal Garmin 200 IP engine room camera

ELECTRICAL EQUIPMENT

• 50amp 220v shore power (bow and stern)
• House and engine start batteries (3/2023)
• AIMS 6000 watt inverter/charger
• Onan 20kW generator with sound shield - 2180 hours

GALLEY AND LAUNDRY

• Subzero refrigerator drawers
• Subzero freezer drawers
• Panasonic microwave oven
• Coffeemaker
• L-shaped Corian countertops
• 3-burner electric cooktop with covers
• Corian sink with garbage disposal
• Watermaker 40 GPH
• Splendide Washer/dryer

DECK & HULL EQUIPMENT

• Trunk for storage - aft
• Anchor pulpit with chain windlass
• ACR remote spotlight
• Hydraulic 1500lb dinghy davit - stores in step
• Hard top with radar arch and antenna mast
• Full stainless bow rail
• Fitted canvas covers for seats and helm
• Four (4) rod holders
• Fresh water washdown
• Hot and cold water transom shower
• Swim platform with ladder
• Helm air conditioning
• 12V24V/110/220 VAC
• Glendenning Cablemaster
• Stidd Helm Chair
• Electric Hardtop Hatches
• Refrigerator
• Ice Maker
• 10” Vetus 12524D Bow Thruster 11/20
• 4 zone air conditioning/heat
• Central vacuum system

ACCOMMODATIONS

• Three-stateroom Plan B layout
• Two (2) hanging cedar closets
• Two (2) full heads
• Dinette seats six (6)
• U-shaped leather sofa to port with entertainment center
