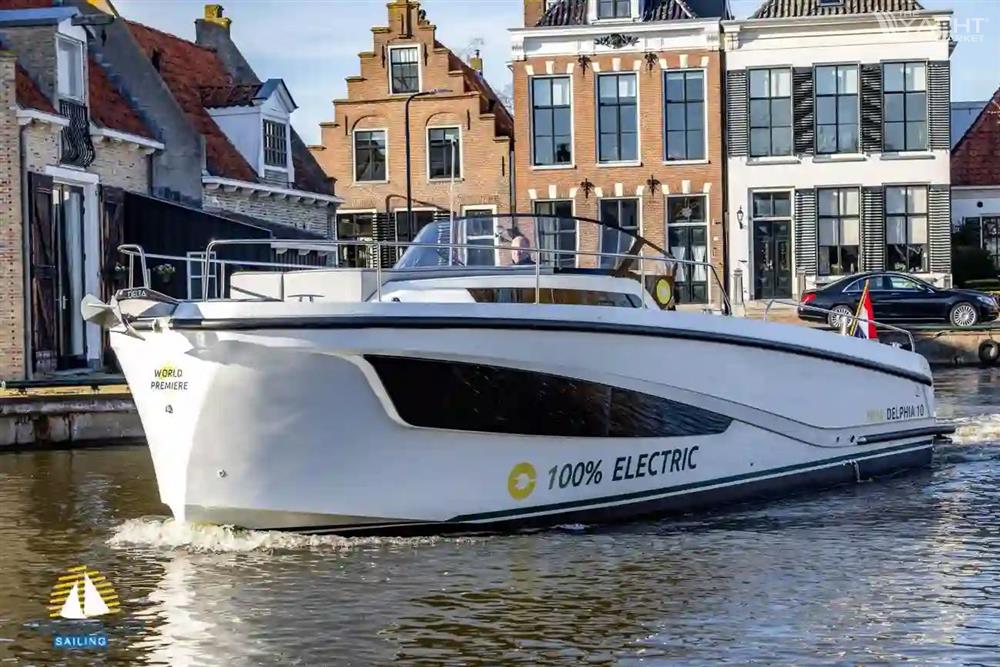

2023 Ex demonstrator Delphia 10 Lounge E Drive
This 2023 Delphia 10 “Lounge” features a Single Torqeedo Life DB 50i Electric motor . It is the most open variant of the model, emphasizing a large sociable central cockpit with numerous seating options for friends and family.
The boat has a white hull gelcoat, and a Walnut interior with one cabin and a utility / office room. It includes a large shower/toilet room with full headroom.
Additional Specifications
TORQEEDO LIFE 50KW
TORQEEDO LIFE DB 50i 40kWh
1CAB 1WC WALNUT
OPEN VERSION
EXTERIOR UPHOLSTERY CARBON
LOUNGE TRIM LEVEL
CARBON BOW LOUNGE AREA PACK
ELECTRONIC PACK INLAND 2022
INLAND ANCHORING KIT
FOLDING COCKPIT BACKREST CARBO
ADDITIONAL COCKPIT SEAT CARBON
TRANSOM WETBAR
REMOVABLE COKPIT TABLE
TRANSOM BIKE RACK
COMPOSITE STEERING WHEEL
BOW AND STERN THRUSTER
RIGID WASTEWATER TANK
DRAWER FRIDGE, 30L
CARPET - 1 CABINS 637,50
FWD LOOKING BENCH IN SALON
ENGLISH OWNERS MANUAL
FLEXITEEK COCKPIT
FLEXITEEK BATHING PLATFORM
FLEXITEEK SALON
SHIPPING CRADDLE
ANTIFOULING
Factory Standard Inventory
HULL
Standard
• “Pure” white gelcoat, RAL 9016
• “Pearl” green waterline stripes, RAL 6035
• GRP hand lay-up using with anti osmosis barrier incl. balsa
core sandwich construction
• Structural hull counter moulding in monolithic laminate
• 2x hull portlights, acrylic glass
• Protective rubrail along the hull, black
• Bathing platform incl. boarding ladder
DECK
Standard
• “Pure” white gelcoat, RAL 9016
• GRP hand lay-up incl. balsa core sandwich construction
• Structural counter moulding in monolithic laminate
• Diamond tip type non-slip surface
“ESSENTIAL“ TRIM LEVEL 2024, 230V/50HZ INCLUDES
• Anchor bow roller, stainless steel
• 2x midship cleats
• Mooring kit (4x mooring line incl. 6x fender)
• 1x additional service batteries, AGM, 95Ah
• Water heater, 40l
• Electric toilet, fresh water flush
• Indirect lighting in salon and cabins
• Courtesy lights in cockpit and catwalks
• USB sockets in salon and cabins
• Curtains in cabins
• Horn
• Shore power cable, 15m
• Cover for steering console
“LOUNGE“ TRIM LEVEL 2024, 230V/50Hz INCLUDES
• «Essential» trim level 2023
• 2x transom mooring cleats for cross docking
• 1.000W electric windlass
• Shore fresh water supply
• Hot & cold shower at transom
• Pleated shades in cabins (instead of curtains)
• Mosquito nets on portholes
• Navigation maps storage
• Storage sleeves in cabins
• 12V/230V, 2.000W inverter
• Single burner hob in wetbar
• Fusion MS-RA70N unit with bluetooth incl. 2x interior, 2x
cockpit speakers
• Wireless phone charger at dashboard
SIDE DECKS
• Bulwark side gate on starboard side
MOORING
Standard
• Anchor locker incl. pad eye for chain fixation
• 4 mooring cleats, stainless steel
SAFETY ON DECK
• Guardrail from midships to bow, stainless steel
• Transom gates, stainless steel
DECK EQUIPMENT
COCKPIT
Standard
• Self bailing cockpit
• 1x large storage locker in cockpit bottom, lockable
• Cockpit bench incl. 2x storage lockers
• Gas bottle locker in cockpit bench (fitting 2x 2,75kg gas
bottles)
• «Nero black» lid
• Moulded sink w/ foldable hot/cold maxer tap
• Front opening fridge, 49L
• Storage locker
• Alpi Walnut interior woodwork
• Grey oak style floors
• Interior cushions fabrics: Drom «Sand»
• Worktop in composite «Nero Black» material
SALON
• L-shape dining bench with storage space
• 2x 230V sockets
STEERING STATION
Standard
• Single-seater pilot seat
• Clear glass windscreen with aluminium frames, black
• Dashboard includes:
o Engine throttle control
o Engine instrumentation: rev counter, fuel gauge,
o Location for max. 9’’ display
o Compass
• Steering wheel
• Footrest
OWNER’S CABIN
Standard
• EU King size bed (2,00 x 1,60m)
• Mattress (thickness: 10cm)
• 2x storage lockers under the berth
• Storage on both sides of the berth
• 2x hanging lockers
• 1x large opening hatch
• 2x large hull portlights
• Padded side panels
• Overhead light,
BATHROOM
Standard
• Mirror
• Worktop in composite “Nero black” material
• Ceramic washbasin incl. hot/cold mixing tap
• Storage cupboard
• Manual toilet
• Acrylic glass shower separator
• Pull-out shower head
• 1x hull portlight
• 1x opening portlights in coachroof
• 2x Overhead light, LED
• 1x 230V socket
OFFICE/UTILITY ROOM
Standard
• 1x hanging locker
• Desk
• 1x large hull portlight
• 1x opening portlight in coachroof
• 2x 230V sockets
• Overhead lights, LED
Standard
• Shaft line propulsion
• Propeller
• Single electric engine: Torqueedo deep blue 50i
(80hp/55,10kW)
• 40kWh battery pack
• 3.3kW charger
• Seawater filter
• Water separator
• Engine room soundproofed with high density foam
• Air intakes for engine hold cooling, on coachroof
• Fire extinguisher port
• Steering system: hung rudder, stainless steel
• Hydraulic steering
• Engine access hatch in salon floor
• Engine room light, LED
Standard
• Multicolour 3,5”display (indicator of battery voltage, level
gauges for fresh water, waste water, fuel, etc,..)
• Main electric switches, at dashboard
• 1x engine battery, AGM, 130Ah
• 2x service battery, AGM, 95Ah
• Battery charger, 230V/12V/40A
• Shore power socket, 230V/32A
Plumbing
Standard
• 1x manual bilge pump in cockpit, 30l/min
• 1x electric bilge pump, 50l/min
• 1x fresh water pump for pressuring hot/cold water system
• Water tank filler on port
• Rotomoulded fresh water tank, 380l
• Rotomoulded black water tank, 170l
